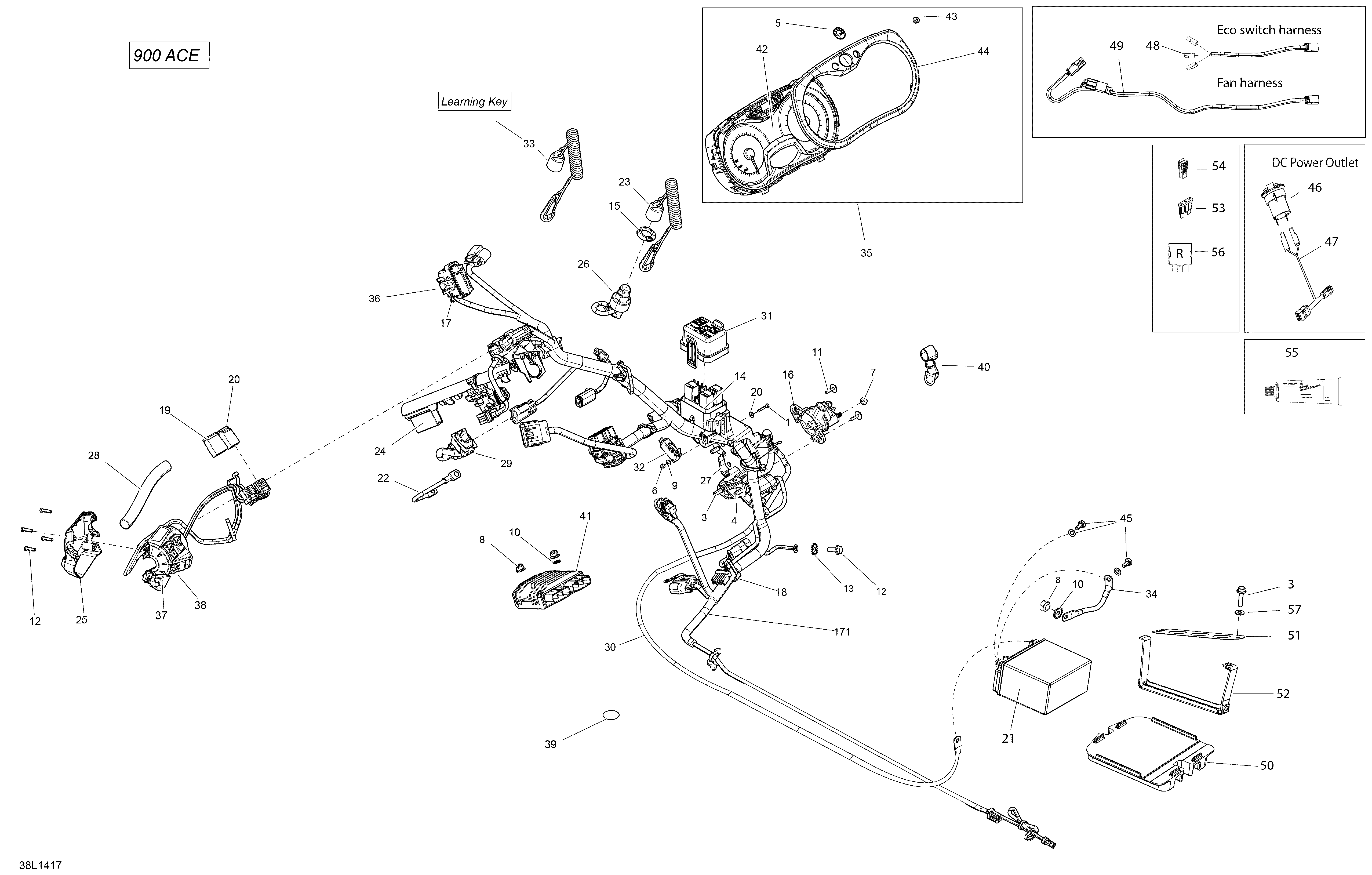

10- Electrical System для BRP Lynx Xtrim SC 900 ACE - 2014
-
№АртикулНазвание
-
1207132044 Hex Screw M3 X 20Hex Screw M3 X 20
-
2207661644 Hex. Flanged Screw M6 X 16Hex. Flanged Screw M6 X 16
-
3210262040 Hex. Flanged Screw M6 X 20Hex. Flanged Screw M6 X 20
-
4210262580 Hex. Flanged Forming Screw M6 X 25Hex. Flanged Forming Screw M6 X 25
-
5219902677 Logo BRP, 20 mmLogo BRP, 20 mm
-
6232531423 Elastic Stop Nut M3Elastic Stop Nut M3
-
7232561414 Elastic Stop Nut M6Elastic Stop Nut M6
-
8233261414 Hex. Flanged Elastic Nut M6Hex. Flanged Elastic Nut M6
-
9234032600 Flat Washer M3, StainlessFlat Washer M3, Stainless
-
10234461608 External Serrated Lock Washer 6 mmExternal Serrated Lock Washer 6 mm
-
11250000113 Screw M4 X 16, Type K-40Screw M4 X 16, Type K-40
-
12250000671 Torx ScrewTorx Screw
-
13250200041 Lock Washer Serrated M6Lock Washer Serrated M6
-
14278002824 Case Ass'yCase Ass'y
-
15278002963 Safety NutSafety Nut
-
16278003012 Starter RelayStarter Relay
-
17293750001 Tie-Rap 94 mmTie-Rap 94 mm
-
18414115200 Tie-Rap 180 mmTie-Rap 180 mm
-
19515175662 Male Terminal Housing, 6 CircuitsMale Terminal Housing, 6 Circuits
-
20515175846 Male Terminal Housing, 4 CircuitsMale Terminal Housing, 4 Circuits
-
21296000295 Battery 18 AmpBattery 18 Amp
-
22515177014 Ground WireGround Wire
-
23515177057 DESS CapDESS Cap
-
24515177134 Connector PlateConnector Plate
-
25515177147 Housing PlateHousing Plate
-
26515177249 DESS SwitchDESS Switch
-
27515177347 PlatePlate
-
28515177320 Corrugated TubeCorrugated Tube
-
29515177569 ECO rocker switchECO rocker switch
-
30515177427 Battery WireBattery Wire
-
31515177671 Fuse Box CoverFuse Box Cover
-
32515177460 Switch Ass'ySwitch Ass'y
-
33860200907 Key (Learning)Key (Learning)
-
34515176780 Ground WireGround Wire
-
35515177528 SpeedometerSpeedometer
-
36515177533 Frame HarnessFrame Harness
-
37515176088 Start/RER ButtonStart/RER Button
-
38515177614 HousingHousing
-
39518325560 Adhesive PatchAdhesive Patch
-
40570151000 Protector CapProtector Cap
-
41515177325 Voltage RegulatorVoltage Regulator
-
42415129349 LensLens
-
43415129355 Speedometer ButtonSpeedometer Button
-
44415129370 Gauge RingGauge Ring
-
45250000028 Battery Fastener KitBattery Fastener Kit
-
46710001248 Outlet dcOutlet dc
-
47515177400 HarnessHarness
-
48515177568 ECO harnessECO harness
-
49515177646 Harness fanHarness fan
-
50513033732 Battery supportBattery support
-
51518327281 Battery strapBattery strap
-
52518327282 Battery strapBattery strap
-
53710000742 Little Fuse, 5 ALittle Fuse, 5 A
-
53710000744 Little Fuse, 10 ALittle Fuse, 10 A
-
53710000745 Little Fuse, 15 ALittle Fuse, 15 A
-
53710000746 Little Fuse, 20 ALittle Fuse, 20 A
-
53710000747 Little Fuse, 30 ALittle Fuse, 30 A
-
54515175811 ToolTool
-
55619600021 Loctite 8104 (Dielectric Grease), 75 mlLoctite 8104 (Dielectric Grease), 75 ml
-
56710001778 RelayRelay
-
57234062410 Flat washer M6Flat washer M6
