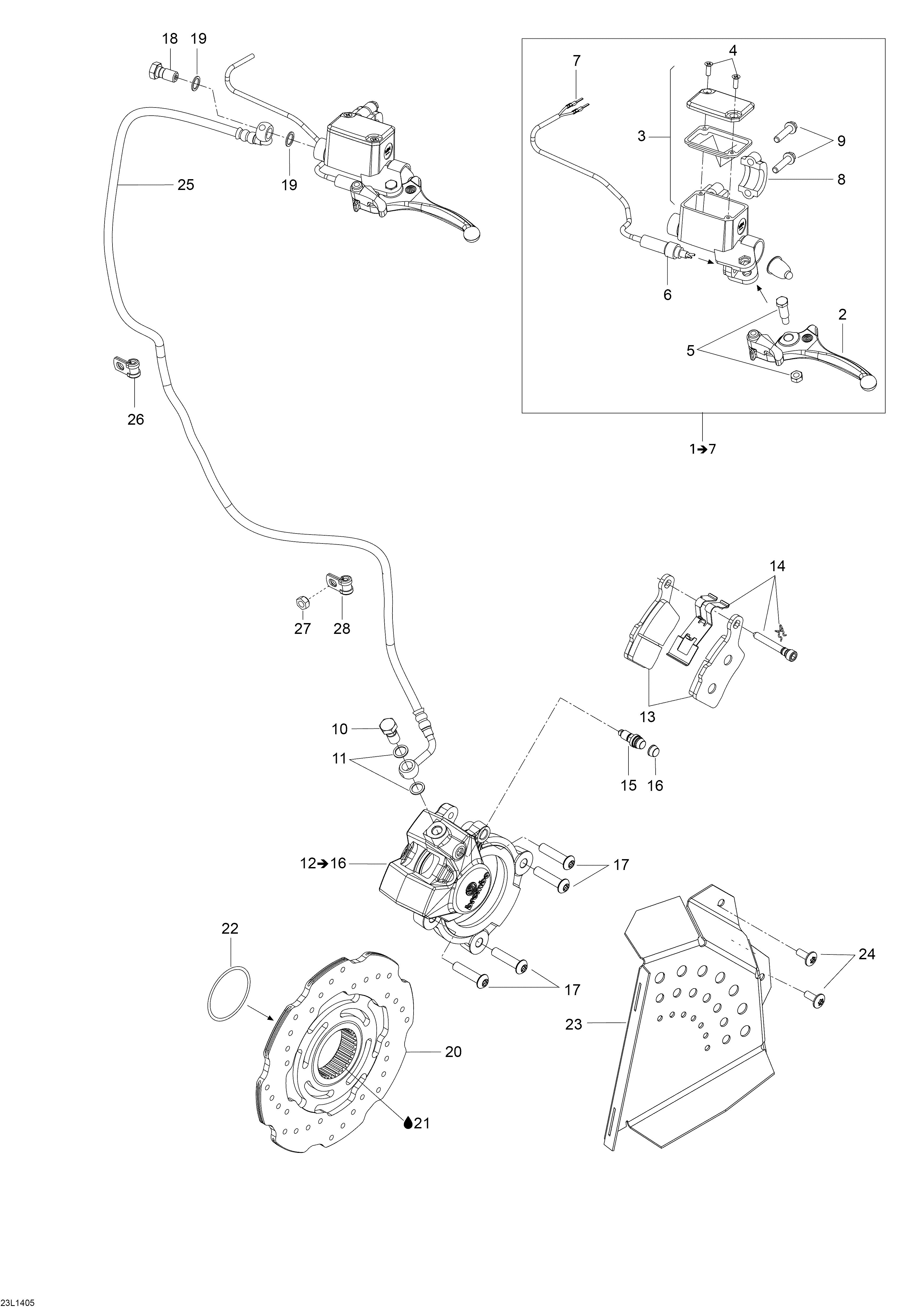

06- Hydraulic Brakes для BRP Lynx 59 YETI 600 ACE - 2014
-
№АртикулНазвание
-
1507032518 Cylinder Master Ass'y. Includes 1 To 7Cylinder Master Ass'y. Includes 1 To 7
-
2507032476 LeverLever
-
3507032478 Reservoir Ass'yReservoir Ass'y
-
4415129356 Screw M4 x 20Screw M4 x 20
-
5415030000 PinPin
-
6507032479 MicroswitchMicroswitch
-
7515175232 Male TerminalMale Terminal
-
8719000049 ClampClamp
-
9250000447 Torx Screw M6 x 25Torx Screw M6 x 25
-
10507032551 Banjo BoltBanjo Bolt
-
11705600310 Copper WasherCopper Washer
-
12507032498 Caliper Ass'y. Includes 12 To 16Caliper Ass'y. Includes 12 To 16
-
13507032473 Brake PadsBrake Pads
-
14507032474 Pin, Clip, Spring KitPin, Clip, Spring Kit
-
15507032475 BleederBleeder
-
17250000301 Torx Screw M8 x 35, Scotch GripTorx Screw M8 x 35, Scotch Grip
-
18507032551 Banjo BoltBanjo Bolt
-
19705600310 Copper WasherCopper Washer
-
20507032513 DiskDisk
-
21619600013 Loctite 8151 (Antiseize), 400ml SprayLoctite 8151 (Antiseize), 400ml Spray
-
22293300134 O-RingO-Ring
-
23507032525 Disk ProtectorDisk Protector
-
24250000365 Torx Screw M6 x 16Torx Screw M6 x 16
-
25507032548 Hose, Steel BraidedHose, Steel Braided
-
26705600459 ClampClamp
-
27233261414 Elastic Flange Nut M6Elastic Flange Nut M6
-
28414176000 Open ClampOpen Clamp
