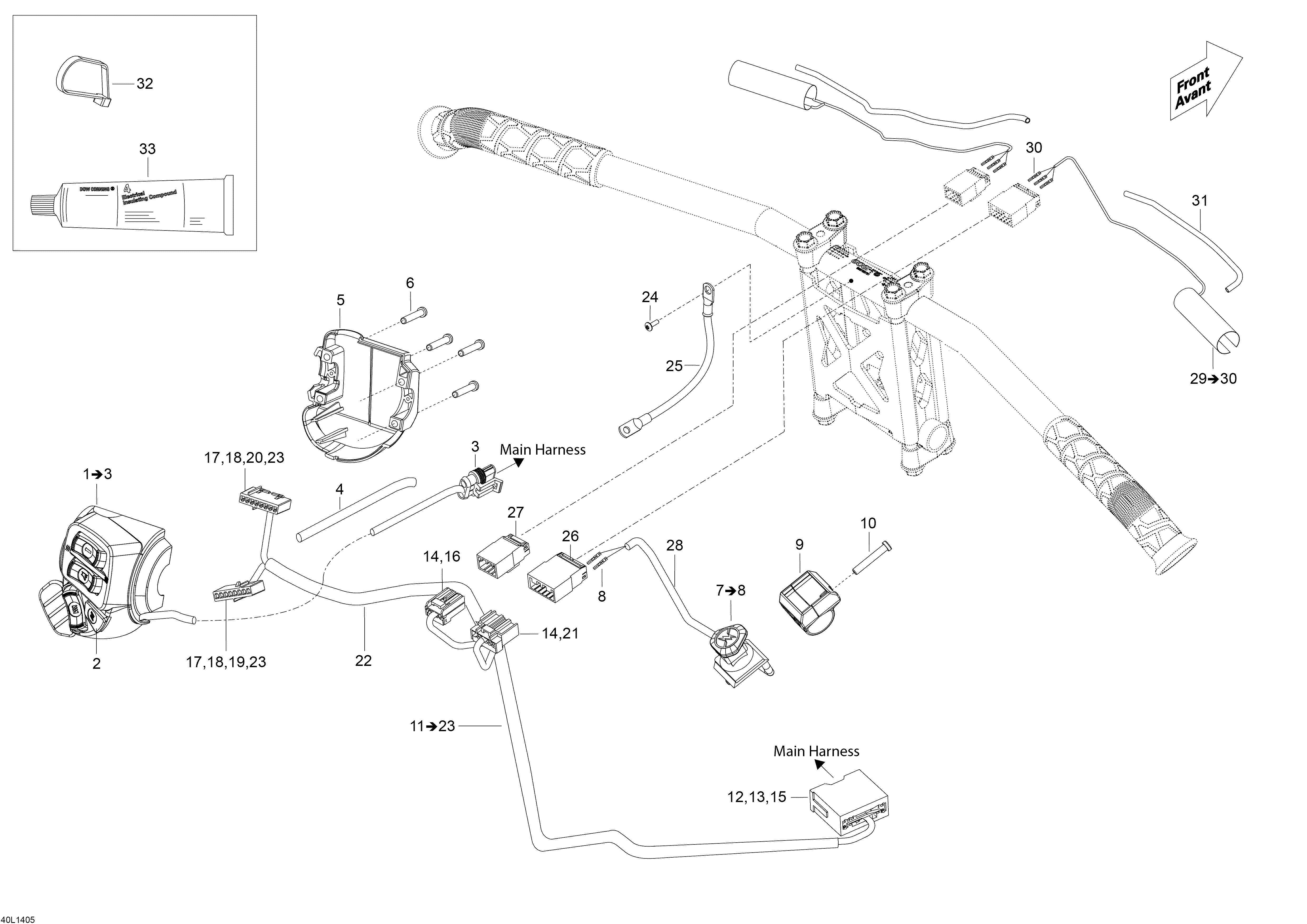

10- Steering Wiring Harness для BRP Lynx 59 YETI 600 ACE - 2014
-
№АртикулНазвание
-
1515177508 Switch Housing LH. Includes 1 To 3Switch Housing LH. Includes 1 To 3
-
2515176088 Start/RER ButtonStart/RER Button
-
3409209600 Female HousingFemale Housing
-
4515175442 Protector TubeProtector Tube
-
5515175926 Switch Housing PlateSwitch Housing Plate
-
6250000263 Torx Screw #8-18Torx Screw #8-18
-
7515177362 Kill Switch. Includes 7 To 8Kill Switch. Includes 7 To 8
-
8515175232 Male TerminalMale Terminal
-
9515176825 Kill Switch SupportKill Switch Support
-
10250000263 Torx Screw #8-18Torx Screw #8-18
-
11515176867 Steering Wiring Harness. Includes 11 To 23Steering Wiring Harness. Includes 11 To 23
-
12515175232 Male TerminalMale Terminal
-
13515175273 Male TerminalMale Terminal
-
14515175231 Female TerminalFemale Terminal
-
15515175351 Male HousingMale Housing
-
16515175543 Female Terminal Housing, 8 CircuitsFemale Terminal Housing, 8 Circuits
-
17515175808 Female TerminalFemale Terminal
-
18515175809 Femelle Lock, 8 CircuitsFemelle Lock, 8 Circuits
-
19515175807 Female Terminal Housing, 8 CircuitsFemale Terminal Housing, 8 Circuits
-
20515175810 Female Terminal Housing, 8 CircuitsFemale Terminal Housing, 8 Circuits
-
21515175819 Female HousingFemale Housing
-
22515175830 Low Temperature Tubing 1/2”Low Temperature Tubing 1/2”
-
23515175941 Female TerminalFemale Terminal
-
24250000690 Forming Screw M5 x 10Forming Screw M5 x 10
-
25515177668 Ground CableGround Cable
-
26515175817 Male Terminal Housing, 8 CircuitsMale Terminal Housing, 8 Circuits
-
27515175662 Male Terminal Housing, 6 CircuitsMale Terminal Housing, 6 Circuits
-
28515175830 Low Temperature Tubing 1/2”Low Temperature Tubing 1/2”
-
29506152467 Heating Element. Includes 29 To 30Heating Element. Includes 29 To 30
-
30515175232 Male TerminalMale Terminal
-
31515175332 Vinyl Tubing, Low TemperatureVinyl Tubing, Low Temperature
-
32414115200 Tie-Rap 180mmTie-Rap 180mm
-
33619600021 Loctite 8104 (Dielectric Grease), 75mlLoctite 8104 (Dielectric Grease), 75ml
