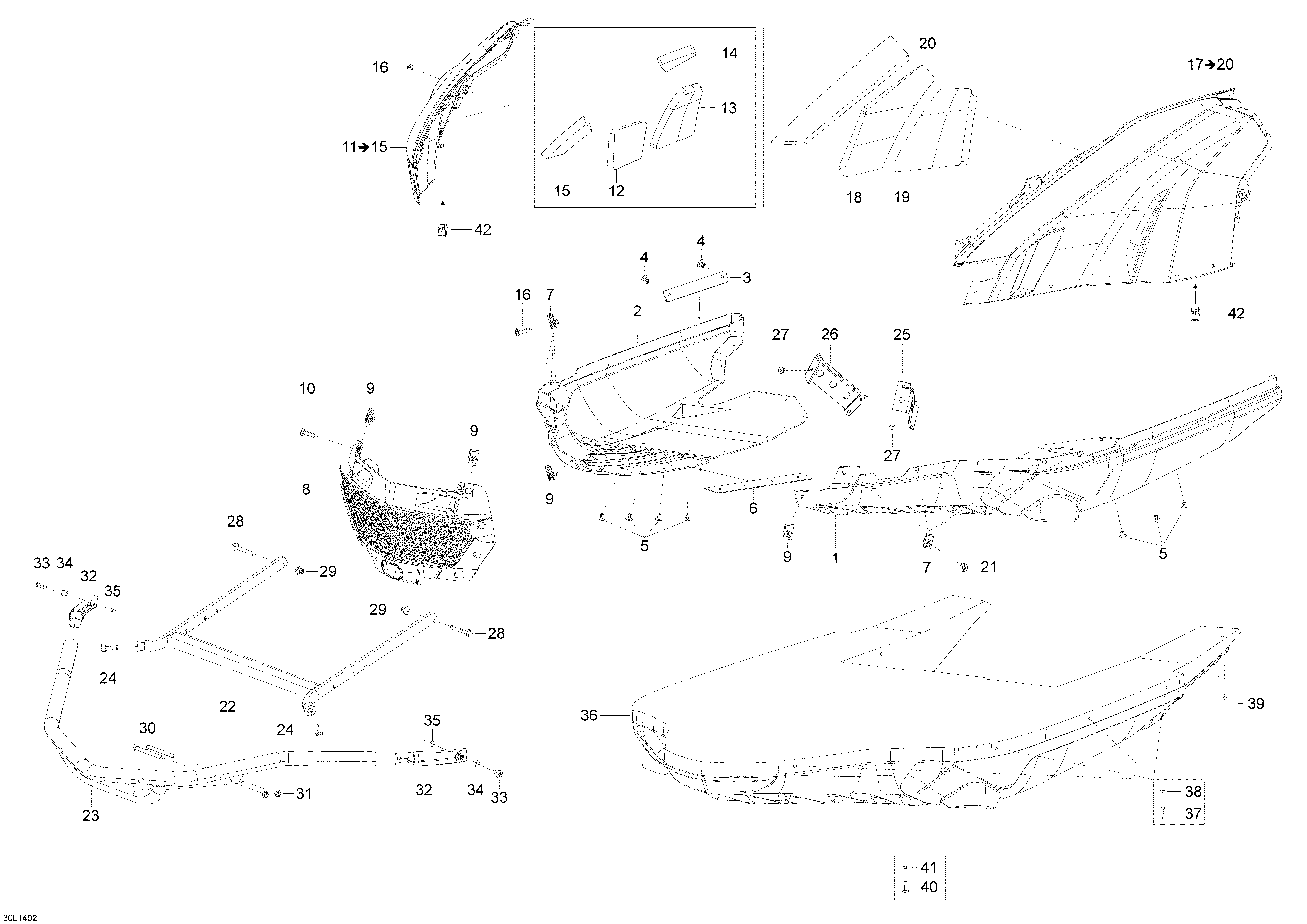

09- Bottom Pan для BRP Lynx 69 YETI Army 600 E-TEC - 2014
-
№АртикулНазвание
-
1502007383 Lower Bottom Pan LHLower Bottom Pan LH
-
2502007384 Lower Bottom Pan RHLower Bottom Pan RH
-
3502007255 Heat Insulation PlateHeat Insulation Plate
-
436005 Rivet 4.8 x 12 BlackRivet 4.8 x 12 Black
-
5293150104 Pop Rivet 3/16Pop Rivet 3/16
-
6502007226 Support PlateSupport Plate
-
7250100113 Extruded Panel Nut M6 x 1.0Extruded Panel Nut M6 x 1.0
-
8502007139 Front GrillFront Grill
-
9250100113 Extruded Panel Nut M6 x 1.0Extruded Panel Nut M6 x 1.0
-
10250000128 Torx Truss Screw M6 x 20Torx Truss Screw M6 x 20
-
11502007292 Bottom Pan Ass'y RH. Includes 11 To 15Bottom Pan Ass'y RH. Includes 11 To 15
-
12502007133 InsulatorInsulator
-
13502007132 InsulatorInsulator
-
14502007008 InsulatorInsulator
-
15502007009 InsulatorInsulator
-
16250000128 Torx Truss Screw M6 x 20Torx Truss Screw M6 x 20
-
17502007294 Bottom Pan Ass'y LH. Includes 17 To 20Bottom Pan Ass'y LH. Includes 17 To 20
-
18502007088 InsulatorInsulator
-
19502007131 InsulatorInsulator
-
20502007185 InsulatorInsulator
-
21250000128 Torx Truss Screw M6 x 20Torx Truss Screw M6 x 20
-
22502007235 BumperBumper
-
23502007313 Extra BumberExtra Bumber
-
24205082044 Socket HD. Screw M8 x 20Socket HD. Screw M8 x 20
-
25502007137 Bottom Pan Fastener LHBottom Pan Fastener LH
-
26502007138 Bottom Pan Fastener RHBottom Pan Fastener RH
-
27605636003 Clinch Nut Hexsert M6Clinch Nut Hexsert M6
-
28207664044 Hex.Flange Screw M6 x 40Hex.Flange Screw M6 x 40
-
29233261414 Elastic Flange Nut M6Elastic Flange Nut M6
-
30207066044 Hex. Cap Screw M6 x 60Hex. Cap Screw M6 x 60
-
31232561434 Elastic Stop NutElastic Stop Nut
-
32502007248 Bumber EndBumber End
-
33250000245 Torx Screw M6 x 30Torx Screw M6 x 30
-
34605453745 BushingBushing
-
3520117 WasherWasher
-
36502007378 Skid PlateSkid Plate
-
37293150108 Pop Rivet 3/16Pop Rivet 3/16
-
38250200025 WasherWasher
-
39605636007 RivetRivet
-
40250000248 Pan HD. Torx Screw M8 x 25Pan HD. Torx Screw M8 x 25
-
41234082410 Flat WasherFlat Washer
-
42250100113 Extruded Panel Nut M6Extruded Panel Nut M6
