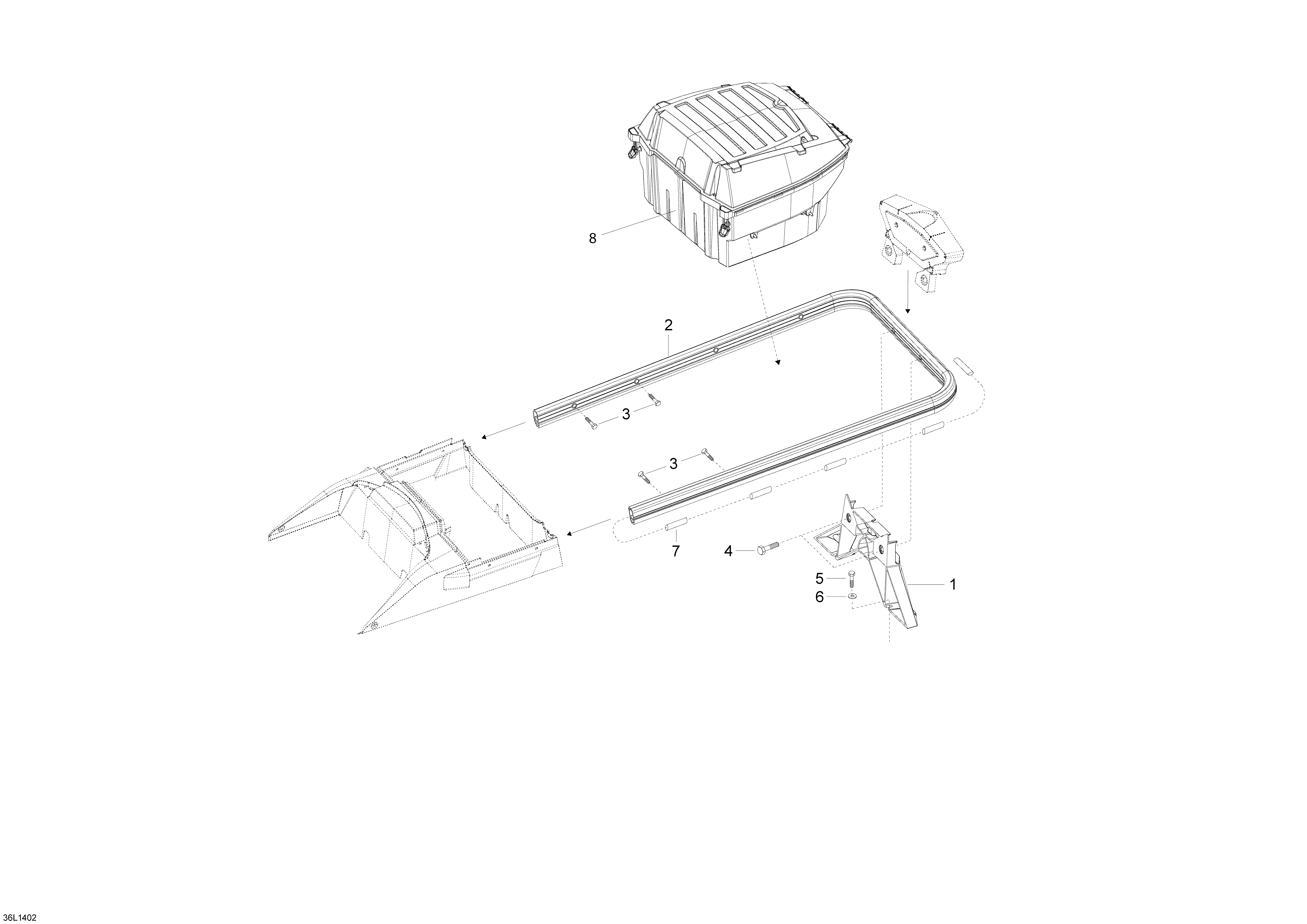

09- Cargo Rack для BRP Lynx 69 YETI Army 600 E-TEC - 2014
-
№АртикулНазвание
-
1511000559 Rear Light SupportRear Light Support
-
2511000887 Rack BarRack Bar
-
3207561644 Screw Hex. Flange M6 x 16Screw Hex. Flange M6 x 16
-
4207663534 Screw Hex. Flange M6 x 35Screw Hex. Flange M6 x 35
-
5205562044 Socket Head Screw M6 x 20Socket Head Screw M6 x 20
-
6234062410 Flat WasherFlat Washer
-
7511000657 Support HoseSupport Hose
-
8619560023 Gargo boxGargo box
