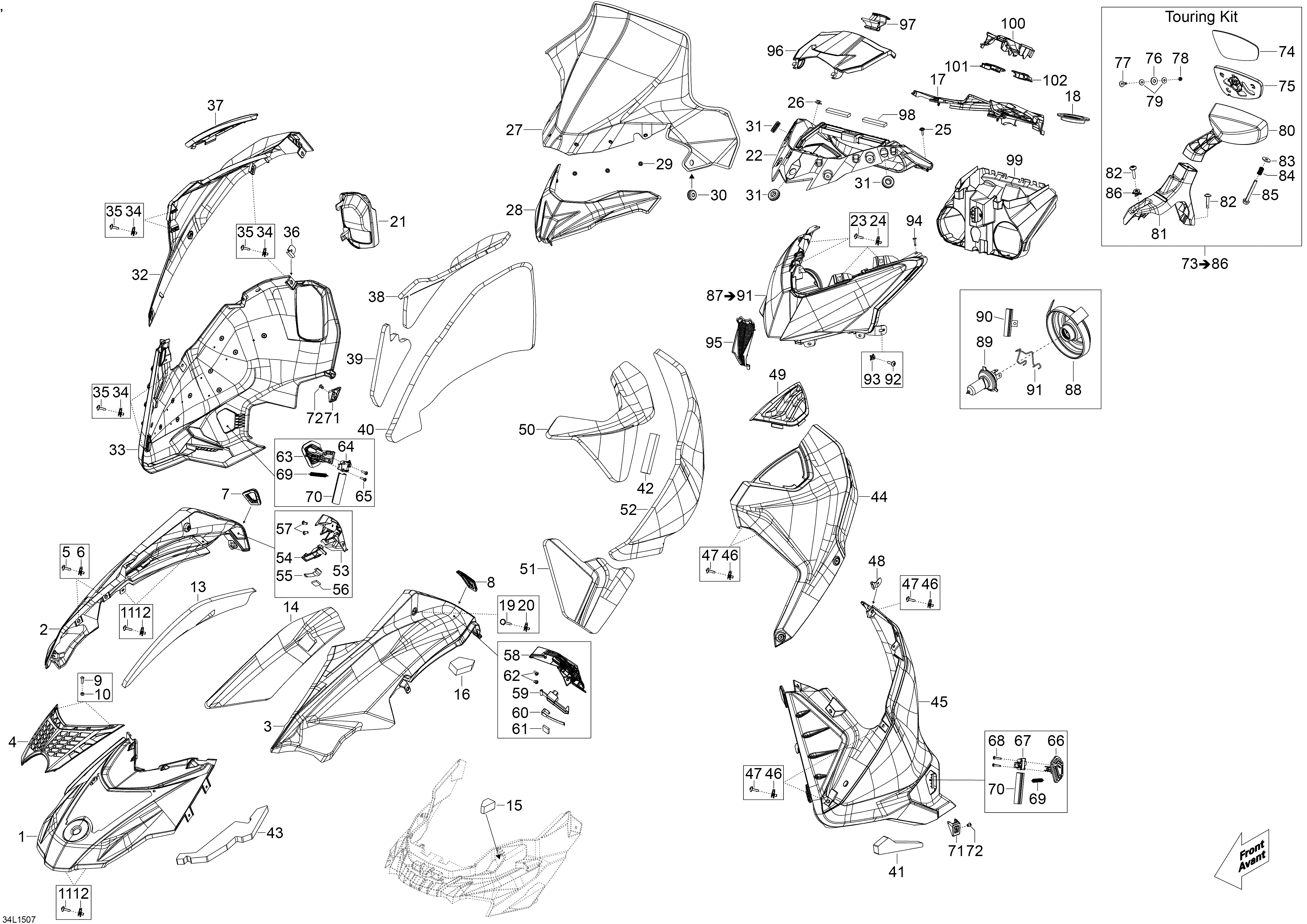

09- Hood And Windshield для BRP Lynx 49 Ranger 600 ACE - 2015
-
№АртикулНазвание
-
1517305571 White HoodWhite Hood
-
2517305416 White RH HoodWhite RH Hood
-
3517305417 White LH HoodWhite LH Hood
-
4517305362 Hood GrillHood Grill
-
5250000528 Torx Truss Screw M5 x 20Torx Truss Screw M5 x 20
-
6250000079 Panel Nut M5Panel Nut M5
-
7517305344 RH Rubber ButtonRH Rubber Button
-
8517305345 LH Rubber ButtonLH Rubber Button
-
9235551494 Button HD Torx Screw M5 x 14Button HD Torx Screw M5 x 14
-
10233251434 Elastic Flange Nut M5Elastic Flange Nut M5
-
11250000528 Torx Truss Screw M5 x 20Torx Truss Screw M5 x 20
-
12250000079 Panel Nut M5Panel Nut M5
-
13517305481 FoamFoam
-
14517305482 FoamFoam
-
15517305812 FoamFoam
-
16517305824 FoamFoam
-
17517305205 Console RearConsole Rear
-
18517304518 Console NutConsole Nut
-
19517305531 KnobKnob
-
20250000079 Panel Nut M5Panel Nut M5
-
21517305061 Black RH ConsoleBlack RH Console
-
22517305512 Indicator SupportIndicator Support
-
22517305943 Indicator Support. (Touring Kit)Indicator Support. (Touring Kit)
-
23250000528 Torx Truss Screw M5 x 20Torx Truss Screw M5 x 20
-
24250000079 Panel Nut M5Panel Nut M5
-
25250000587 Torx Truss Screw M5 x 26Torx Truss Screw M5 x 26
-
26250100035 Jack Nut M5. (Touring Kit)Jack Nut M5. (Touring Kit)
-
27860201070 WindshieldWindshield
-
28517305307 SupportSupport
-
29732610072 Push NutPush Nut
-
30517302841 GrommetGrommet
-
31517303756 GrommetGrommet
-
32517305425 White RH PanelWhite RH Panel
-
33517305249 Black RH PanelBlack RH Panel
-
34250000079 Panel Nut M5Panel Nut M5
-
35250000528 Torx Truss Screw M5 x 20Torx Truss Screw M5 x 20
-
36517305515 Guide PlateGuide Plate
-
37517305251 GrillGrill
-
38517305484 FoamFoam
-
39517305485 FoamFoam
-
40517305486 FoamFoam
-
41517305813 FoamFoam
-
42517305814 FoamFoam
-
43517305815 FoamFoam
-
44517305426 White LH PanelWhite LH Panel
-
45517305253 Black LH PanelBlack LH Panel
-
46250000079 Panel Nut M5Panel Nut M5
-
47250000528 Torx Truss Screw M5 x 20Torx Truss Screw M5 x 20
-
48517305515 Guide PlateGuide Plate
-
49517305254 GrillGrill
-
50517305488 FoamFoam
-
51517305489 FoamFoam
-
52517305490 FoamFoam
-
53517305315 RH Lock BodyRH Lock Body
-
54517305757 Lock ArmLock Arm
-
55517305317 Lock SpringLock Spring
-
56517306005 Lock Support PlateLock Support Plate
-
57205951046 Socket HD Screw M5 x 10Socket HD Screw M5 x 10
-
58517305319 LH Lock BodyLH Lock Body
-
59517305757 Lock ArmLock Arm
-
60517305317 Lock SpringLock Spring
-
61517306005 Lock Support PlateLock Support Plate
-
62205951046 Socket HD Screw M5 x 10Socket HD Screw M5 x 10
-
63517305760 RH Side Panel Bottom LockRH Side Panel Bottom Lock
-
64517305761 RH Bottom Lock Fixing PartRH Bottom Lock Fixing Part
-
65250000451 Torx Flange Screw K40 x 20Torx Flange Screw K40 x 20
-
66517305758 LH Side Panel Bottom LockLH Side Panel Bottom Lock
-
67517305759 LH Bottom Lock Fixing PartLH Bottom Lock Fixing Part
-
68250000451 Torx Flange Screw K40 x 20Torx Flange Screw K40 x 20
-
69517305535 Side Panel Bottom Lock SpringSide Panel Bottom Lock Spring
-
70517305452 Bottom Lock SleeveBottom Lock Sleeve
-
71517305323 Side Panel SupportSide Panel Support
-
72390909100 RivetRivet
-
73860201156 Mirror Kit. (Touring Kit) Includes 73 To 86Mirror Kit. (Touring Kit) Includes 73 To 86
-
76250200024 Rubber WasherRubber Washer
-
82250000587 Torx Truss Screw M5 x 26Torx Truss Screw M5 x 26
-
83234062410 Flat WasherFlat Washer
-
84279000329 SpringSpring
-
85207665044 Hex. Flange Screw M6 x 50Hex. Flange Screw M6 x 50
-
86250100035 Jack Nut M5Jack Nut M5
-
87517305497 Headlamp. Includes 87 To 91Headlamp. Includes 87 To 91
-
88219400070 CapCap
-
89515176274 BulbBulb
-
90219800282 HolderHolder
-
91219800281 SpringSpring
-
92250000528 Torx Truss Screw M5 x 20Torx Truss Screw M5 x 20
-
93250100035 Jack Nut M5Jack Nut M5
-
94250000725 Plastite Screw M4 x 16Plastite Screw M4 x 16
-
95517305350 CapCap
-
96517304912 CoverCover
-
97517304917 LatchLatch
-
98517305157 SealSeal
-
99517305095 TrunkTrunk
-
100517304970 SupportSupport
-
101517305180 CapCap
-
102517305148 CapCap
