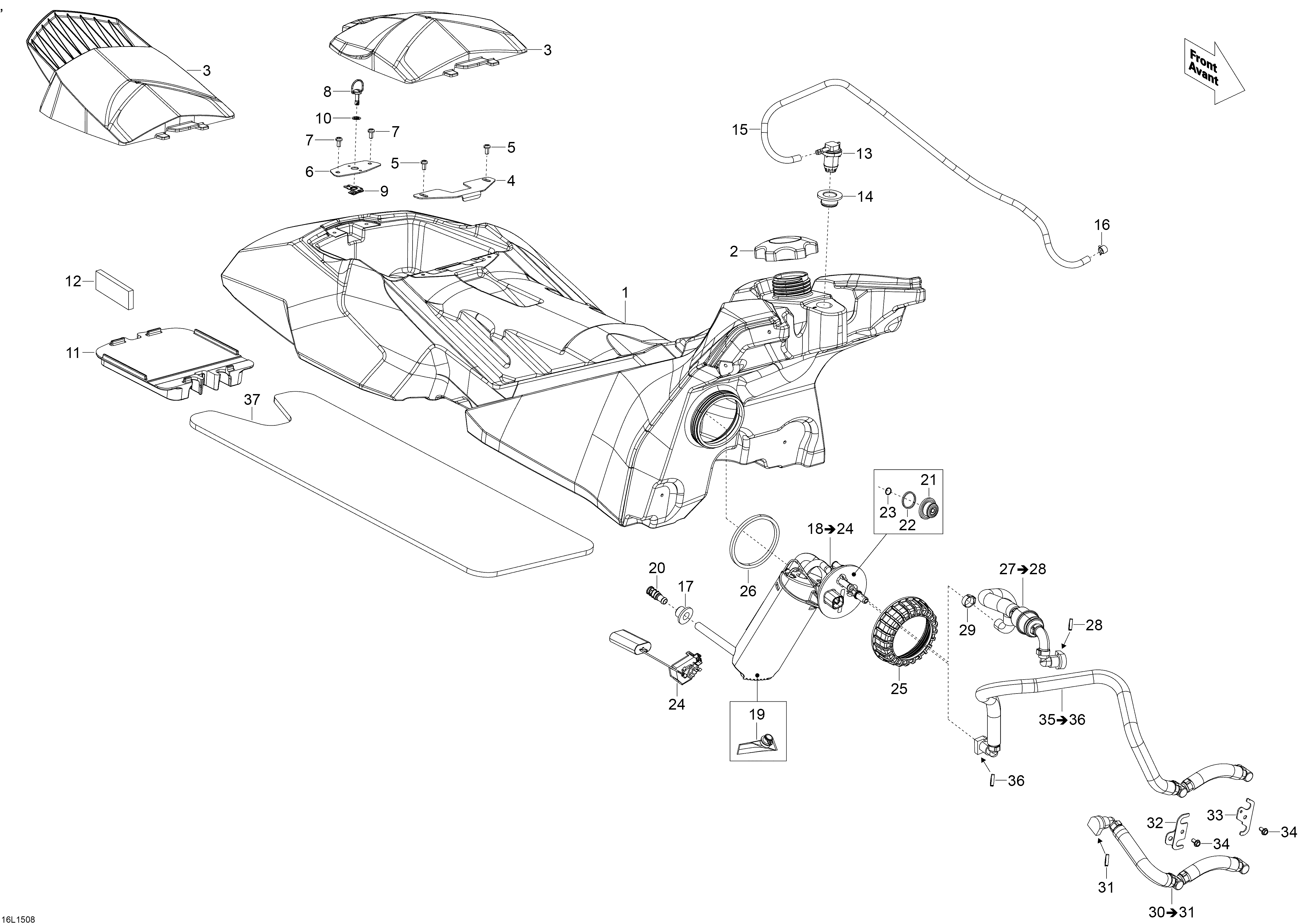

02- Fuel System для BRP Lynx 49 Ranger 600 E-TEC - 2015
-
№АртикулНазвание
-
1513033725 Fuel TankFuel Tank
-
2513033723 CapCap
-
3513033705 Battery CoverBattery Cover
-
3513033753 Battery Cover 2up. (Touring Kit)Battery Cover 2up. (Touring Kit)
-
4513033775 Lock PlateLock Plate
-
5205951046 Socket HD Screw M5 x 10Socket HD Screw M5 x 10
-
6513033731 Lock PlateLock Plate
-
7205951046 Socket HD Screw M5 x 10Socket HD Screw M5 x 10
-
8513033735 Quarter Turn FastenerQuarter Turn Fastener
-
9513033736 Quarter Turn Fastener PlateQuarter Turn Fastener Plate
-
10732610072 Push NutPush Nut
-
11513033732 Battery SupportBattery Support
-
12510006023 FoamFoam
-
13513033188 Check ValveCheck Valve
-
14513033596 GrommetGrommet
-
15415080200 Polyurethane HosePolyurethane Hose
-
16414554800 Spring ClampSpring Clamp
-
17293300184 O RingO Ring
-
18513033794 Fuel Pump. Includes 18 To 24Fuel Pump. Includes 18 To 24
-
19415129451 Fuel Filter, PumpFuel Filter, Pump
-
20414872100 Fuel Filter, HoseFuel Filter, Hose
-
21415129962 RegulatorRegulator
-
22415129822 O RingO Ring
-
23415129823 O RingO Ring
-
24415129671 Fuel Level SensorFuel Level Sensor
-
25513033040 Fuel Pump NutFuel Pump Nut
-
26513033707 GasketGasket
-
27513033715 Fuel Hose Ass'y. Includes 27 To 28Fuel Hose Ass'y. Includes 27 To 28
-
28513033135 Locking ClipLocking Clip
-
29293650053 Crimp ClampCrimp Clamp
-
30513033594 Hose Ass'y. Includes 30 To 31Hose Ass'y. Includes 30 To 31
-
31513033135 Locking ClipLocking Clip
-
32513033542 RH BracketRH Bracket
-
33513033593 LH BracketLH Bracket
-
34207551044 Hex. Flange Screw M5 x 10Hex. Flange Screw M5 x 10
-
35513033648 Hose Ass'y. Includes 35 To 36Hose Ass'y. Includes 35 To 36
-
36513033135 Locking ClipLocking Clip
-
37513033701 Insulating FoamInsulating Foam
