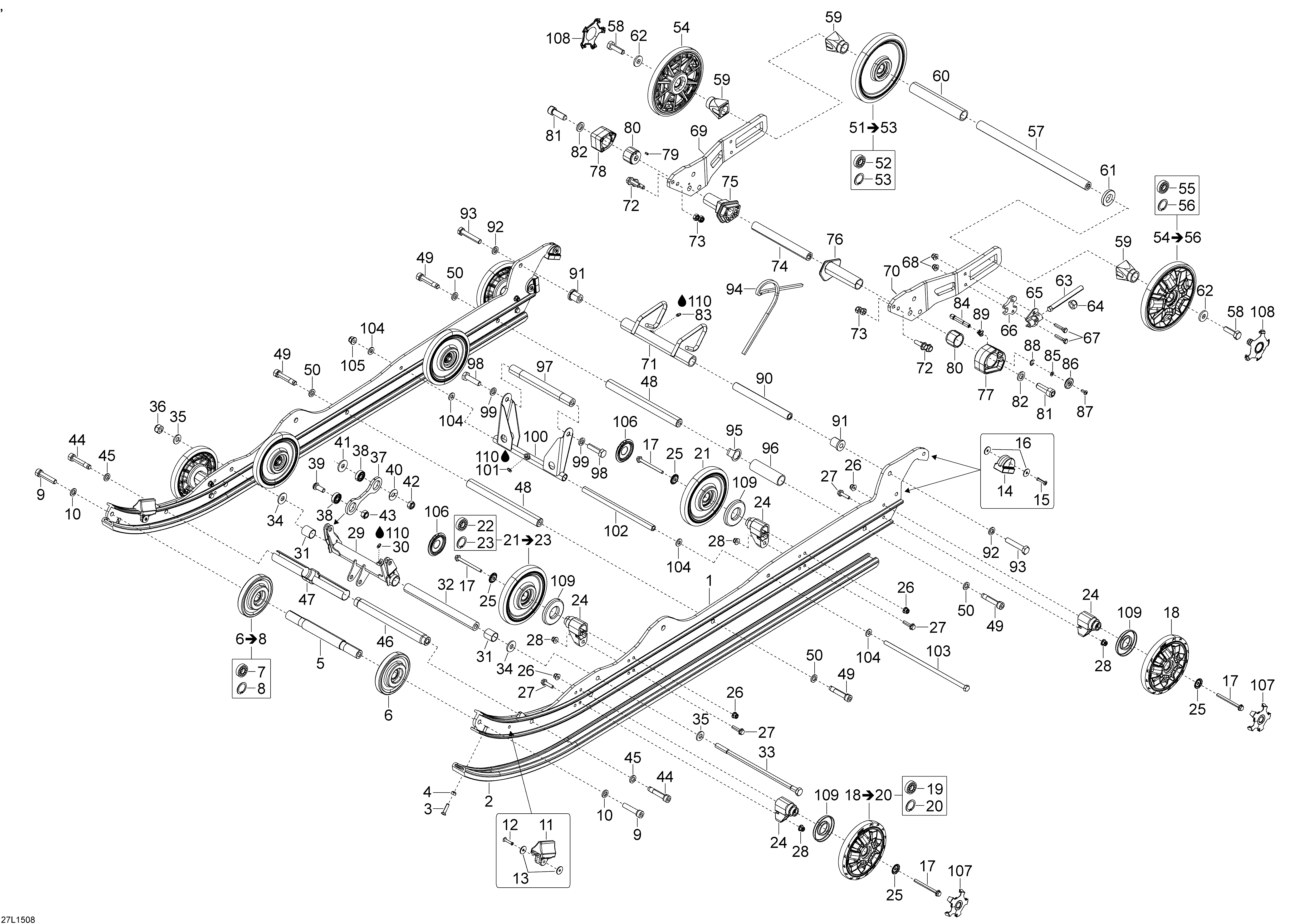

08- Rear Suspension для BRP Lynx 49 Ranger 600 E-TEC - 2015
-
№АртикулНазвание
-
1503193821 RunnerRunner
-
2503193981 Slider ShoeSlider Shoe
-
3208562531 Screw M6 x 25Screw M6 x 25
-
4232561434 Elastic Stop Nut M6Elastic Stop Nut M6
-
5503192842 Front Wheel ShaftFront Wheel Shaft
-
6503192611 Wheel 100mm. Includes 6 To 8Wheel 100mm. Includes 6 To 8
-
7503190396 Ball BearingBall Bearing
-
9205504544 Socket Screw M10 x 45Socket Screw M10 x 45
-
10503192496 Flat WasherFlat Washer
-
11503192106 Rubber StopperRubber Stopper
-
12293150142 Pop Rivet 3/16Pop Rivet 3/16
-
13503191273 WasherWasher
-
14503191291 Rubber StopperRubber Stopper
-
15293150142 Pop Rivet 3/18Pop Rivet 3/18
-
16503191273 WasherWasher
-
17207667056 Hex. Flange Screw M6 x 70Hex. Flange Screw M6 x 70
-
18503193734 Wheel 141mm. Includes 18 To 20Wheel 141mm. Includes 18 To 20
-
19503190396 Ball BearingBall Bearing
-
21503191316 Wheel 141mm. Includes 21 To 23Wheel 141mm. Includes 21 To 23
-
22503190396 Ball BearingBall Bearing
-
23415129371 CirclipCirclip
-
24503193894 SupportSupport
-
25503191820 Cup WasherCup Washer
-
26233261466 Elastic Flange Nut M6Elastic Flange Nut M6
-
27207662556 Hex. Flange Screw M6 x 25Hex. Flange Screw M6 x 25
-
28233261466 Elastic Flange Nut M6Elastic Flange Nut M6
-
29503193580 Front SwingFront Swing
-
30408200700 Grease FittingGrease Fitting
-
31503193822 BushingBushing
-
32503193893 Lower ShaftLower Shaft
-
33503193227 Bolt M10 x 251Bolt M10 x 251
-
34503191926 WasherWasher
-
35250200138 WasherWasher
-
36233601466 Elastic Locking Nut M10Elastic Locking Nut M10
-
37605254159 Connecting RodConnecting Rod
-
38605631003 Ball BearingBall Bearing
-
39205402546 Socket HD Screw M10 x 25Socket HD Screw M10 x 25
-
4025004 Spring CupSpring Cup
-
41234002600 Washer M10Washer M10
-
42233401414 Lock Spring Nut M10Lock Spring Nut M10
-
43232500416 Elastic Stop Nut M10Elastic Stop Nut M10
-
44205505054 Socket HD Screw M10 x 50Socket HD Screw M10 x 50
-
45503192496 WasherWasher
-
46605353958 ShaftShaft
-
47605355096 Limiter Strap RetainerLimiter Strap Retainer
-
485343471 ShaftShaft
-
49205505054 Socket HD Screw M10 x 50Socket HD Screw M10 x 50
-
50503192496 WasherWasher
-
51503192140 Wheel 165mm. Includes 51 To 53Wheel 165mm. Includes 51 To 53
-
52503190396 Ball BearingBall Bearing
-
53415129371 CirclipCirclip
-
54503193809 Wheel 165mm. Includes 54 To 56Wheel 165mm. Includes 54 To 56
-
55503190396 Ball BearingBall Bearing
-
56415129371 CirclipCirclip
-
57503190429 Rear AxleRear Axle
-
58250000817 Hex. Cap Screw M10 x 35Hex. Cap Screw M10 x 35
-
59503190428 SpacerSpacer
-
60503193052 SpacerSpacer
-
61503190432 WasherWasher
-
62503190439 WasherWasher
-
63230100054 Hex. Cap Screw M10 x 100Hex. Cap Screw M10 x 100
-
64233601466 Elastic Locking Nut M10Elastic Locking Nut M10
-
65503192583 TensionerTensioner
-
66503193250 SpacerSpacer
-
67207063054 Hex. Cap Screw M6 x 30Hex. Cap Screw M6 x 30
-
68233261466 Elastic Flange Nut M6Elastic Flange Nut M6
-
69503192435 RH Runner PivotRH Runner Pivot
-
70503192434 LH Runner PivotLH Runner Pivot
-
71503192647 PivotPivot
-
72207682534 Hex. Flange Screw M8 x 25Hex. Flange Screw M8 x 25
-
73232581414 Elastic Stop Nut M8Elastic Stop Nut M8
-
74503191608 Cam AxelCam Axel
-
75503191190 RH Spring CamRH Spring Cam
-
76503191668 LH Spring CamLH Spring Cam
-
77503192426 LH BlockLH Block
-
78503192427 RH BlockRH Block
-
79250400005 Dowel Pin 4 x 8Dowel Pin 4 x 8
-
80503189488 Block GuideBlock Guide
-
81205523554 Socket Screw M12 x 35Socket Screw M12 x 35
-
82503189148 WasherWasher
-
83408200700 Grease FittingGrease Fitting
-
84503192437 ShaftShaft
-
85234051410 WasherWasher
-
86503192438 HandleHandle
-
87250000145 Torx Truss Screw M5 x 14Torx Truss Screw M5 x 14
-
88293370068 CirclipCirclip
-
89503192436 SpringSpring
-
90503191279 Lower ShaftLower Shaft
-
91503189324 BushingBushing
-
92503192496 WasherWasher
-
93250000605 Hex. Cap Screw M10 x 55Hex. Cap Screw M10 x 55
-
94503192282 SpringSpring
-
95503194323 Spring RetainerSpring Retainer
-
96503194324 SpacerSpacer
-
97503193638 Lower ShaftLower Shaft
-
98207204044 Hex. Cap Screw M10 x 40Hex. Cap Screw M10 x 40
-
99503192496 WasherWasher
-
100503193578 Rear SwingRear Swing
-
101408200700 Grease FittingGrease Fitting
-
102503189156 Pivot AxlePivot Axle
-
103503194069 Bolt M8 x 248Bolt M8 x 248
-
104503192494 WasherWasher
-
105233281466 Elastic Flange Nut M8Elastic Flange Nut M8
-
106503192771 Black Wheel CapBlack Wheel Cap
-
107503193884 White Wheel CapWhite Wheel Cap
-
108503193887 White Wheel CapWhite Wheel Cap
-
109503190434 Labyrinth SealLabyrinth Seal
-
110619590193 Synthetic GreaseSynthetic Grease
