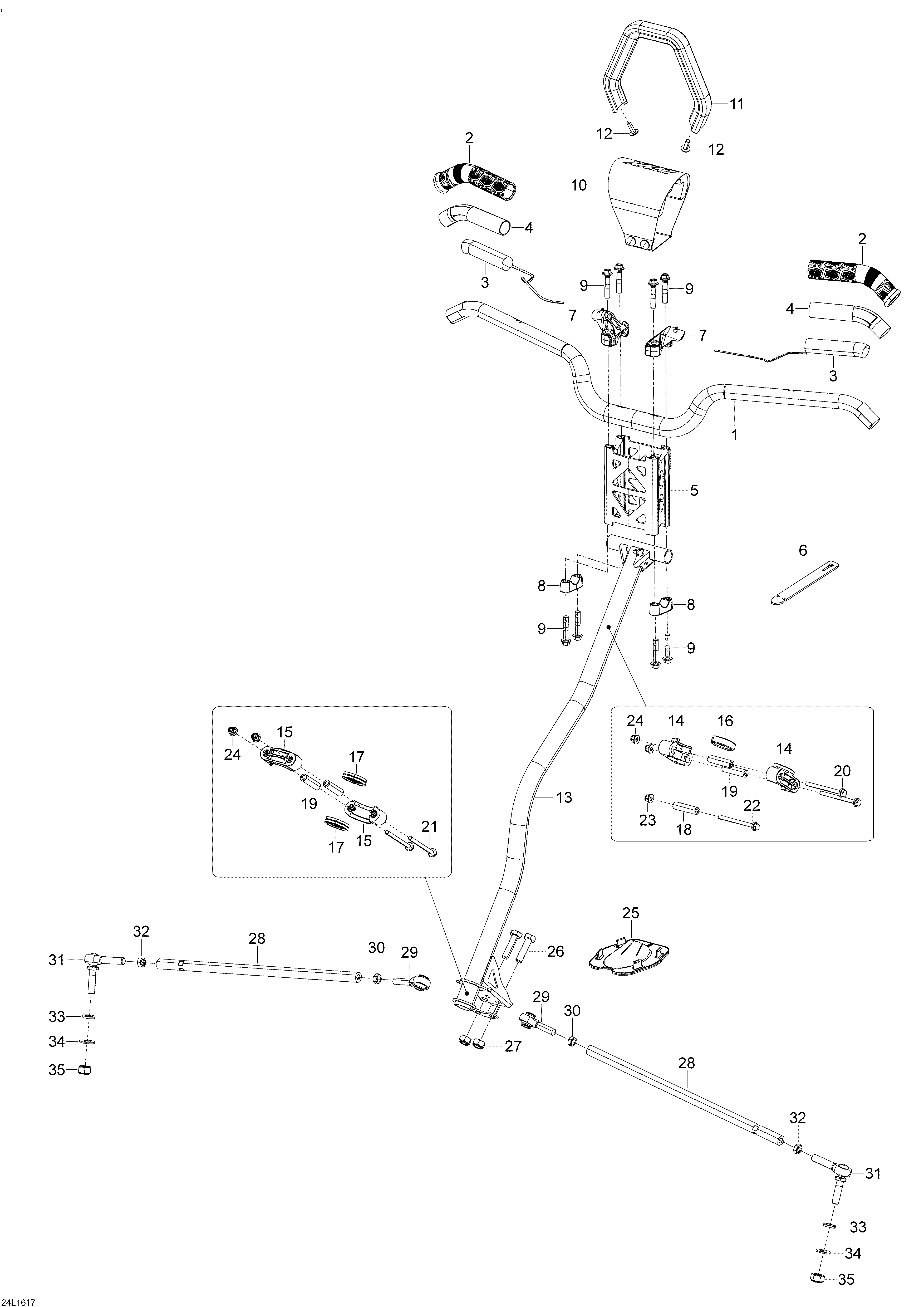

07- Steering System для BRP Lynx BoonDocker RE (2-Stroke) - 2016
-
№АртикулНазвание
-
1506152723 Black Handle BarBlack Handle Bar
-
2506152486 GripGrip
-
3506152665 Heated Film (32W)Heated Film (32W)
-
4506152548 InsulantInsulant
-
5506152530 Black Extension (130mm)Black Extension (130mm)
-
6293850117 Rubber StrapRubber Strap
-
7506152555 LH SupportLH Support
-
7506152556 RH SupportRH Support
-
8506152751 Steering SupportSteering Support
-
9250000352 Hex. Flange Screw M8 x 40Hex. Flange Screw M8 x 40
-
10506152649 Steering PadSteering Pad
-
11506152460 Strap Ass'yStrap Ass'y
-
12250000779 Torx Truss Screw M6 x 18Torx Truss Screw M6 x 18
-
13506152839 Main TubeMain Tube
-
14506152508 Upper Half-HousingUpper Half-Housing
-
15506152217 Lower Half-HousingLower Half-Housing
-
16506152509 Upper Vibrat. GasketUpper Vibrat. Gasket
-
17506152518 Lower Vibrat. GasketLower Vibrat. Gasket
-
18506152297 Housing BushingHousing Bushing
-
19506152297 Housing BushingHousing Bushing
-
20207667086 Hex. Flange Screw M6 x 70Hex. Flange Screw M6 x 70
-
21207667086 Hex. Flange Screw M6 x 70Hex. Flange Screw M6 x 70
-
22207667086 Hex. Flange Screw M6 x 70Hex. Flange Screw M6 x 70
-
23233261416 Elastic Flange Nut M6Elastic Flange Nut M6
-
24233261416 Elastic Flange Nut M6Elastic Flange Nut M6
-
25506152163 PlatePlate
-
26207004044 Hex. Cap Screw M10 x 40Hex. Cap Screw M10 x 40
-
27232500416 Elastic Stop Nut M10Elastic Stop Nut M10
-
28506152498 Tie RodTie Rod
-
29506152081 Ball JointBall Joint
-
30250100016 LH Hex Jam Nut M10LH Hex Jam Nut M10
-
31506152684 Ball JointBall Joint
-
32732610010 RH Hex Jam Nut M10RH Hex Jam Nut M10
-
33503192496 WasherWasher
-
34506152582 WasherWasher
-
35233201464 Elastic Stop Nut M10Elastic Stop Nut M10
