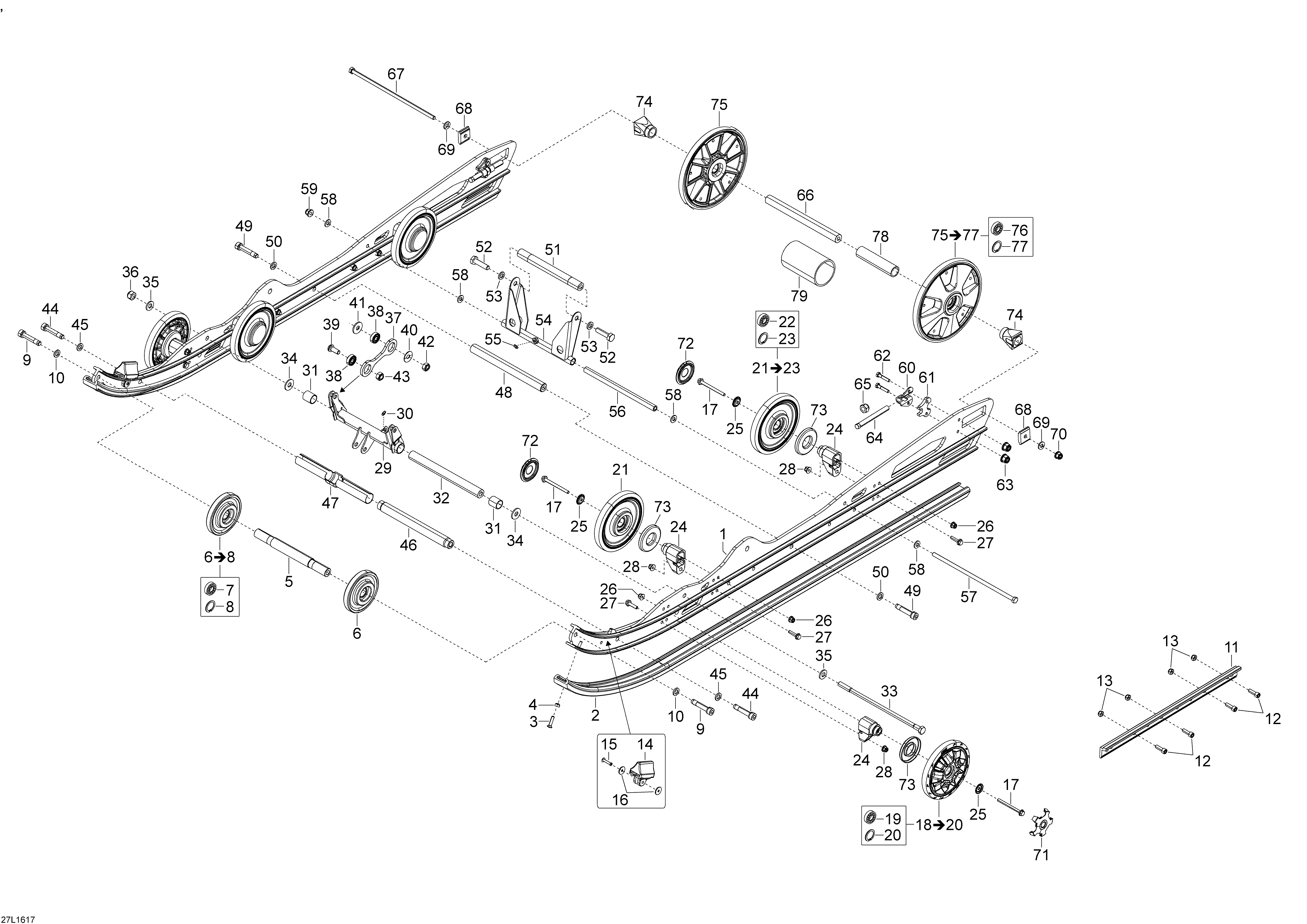

08- Rear Suspension A для BRP Lynx BoonDocker RE (2-Stroke) - 2016
-
№АртикулНазвание
-
1503194234 Yellow RunnerYellow Runner
-
2503193170 Slider ShoeSlider Shoe
-
3208562531 Screw M6 x 25Screw M6 x 25
-
4232561434 Elastic Stop Nut M6Elastic Stop Nut M6
-
5503192842 Front Wheel ShaftFront Wheel Shaft
-
6503192611 Wheel 100mm. Includes 6 To 8Wheel 100mm. Includes 6 To 8
-
7503190396 Ball BearingBall Bearing
-
9205504544 Socket Screw M10 x 45Socket Screw M10 x 45
-
10503192496 WasherWasher
-
11503194288 Rail ReinforcementRail Reinforcement
-
12205082554 Socket HD Screw M8 x 25Socket HD Screw M8 x 25
-
13232581414 Elastic Stop Nut M8Elastic Stop Nut M8
-
14503192106 Rubber StopperRubber Stopper
-
15293150142 Pop Rivet 3/16''Pop Rivet 3/16''
-
16503191273 WasherWasher
-
17207667056 Hex. Flange Screw M6 x 70Hex. Flange Screw M6 x 70
-
18503193734 Wheel 141mm. Includes 18 To 20Wheel 141mm. Includes 18 To 20
-
19503190396 Ball BearingBall Bearing
-
21503191316 Wheel 141mm. Includes 21 To 23Wheel 141mm. Includes 21 To 23
-
22503190396 Ball BearingBall Bearing
-
23415129371 CirclipCirclip
-
24503193894 SupportSupport
-
25503191820 Cup WasherCup Washer
-
26233261466 Elastic Flange Nut M6Elastic Flange Nut M6
-
27207662556 Hex. Flange Screw M6 x 25Hex. Flange Screw M6 x 25
-
28233261466 Elastic Flange Nut M6Elastic Flange Nut M6
-
29503193580 Front SwingFront Swing
-
30408200700 Grease FittingGrease Fitting
-
31503193822 BushingBushing
-
32503193893 Lower ShaftLower Shaft
-
33503193227 Bolt M10 x 251Bolt M10 x 251
-
34503191926 WasherWasher
-
35250200138 WasherWasher
-
36233601466 Elastic Locking Nut M10Elastic Locking Nut M10
-
37605254159 Connecting RodConnecting Rod
-
38605631003 Ball BearingBall Bearing
-
39205402546 Socket HD Screw M10 x 25Socket HD Screw M10 x 25
-
4025004 Spring CupSpring Cup
-
41234002600 Washer M10Washer M10
-
42233401414 Lock Spring Nut M10Lock Spring Nut M10
-
43232500416 Elastic Stop Nut M10Elastic Stop Nut M10
-
44205505054 Socket HD Screw M10 x 50Socket HD Screw M10 x 50
-
45503192496 WasherWasher
-
46605353958 ShaftShaft
-
47605355096 Limiter Strap RetainerLimiter Strap Retainer
-
485343471 ShaftShaft
-
49205505054 Socket HD Screw M10 x 50Socket HD Screw M10 x 50
-
50503192496 WasherWasher
-
51503193638 Lower ShaftLower Shaft
-
52207204044 Hex. Cap Screw M10 x 40Hex. Cap Screw M10 x 40
-
53503192496 WasherWasher
-
54503194342 Rear SwingRear Swing
-
55408200700 Grease FittingGrease Fitting
-
56503189156 Pivot AxlePivot Axle
-
57503192440 Bolt M8 x 248mmBolt M8 x 248mm
-
58503192494 WasherWasher
-
59233281466 Elastic Flange Nut M8Elastic Flange Nut M8
-
60503192583 TensionerTensioner
-
61503193250 SpacerSpacer
-
62207063054 Hex. Cap Screw M6 x 30Hex. Cap Screw M6 x 30
-
63233261466 Elastic Flange Nut M6Elastic Flange Nut M6
-
64230100054 Hex. Cap Screw M10 x 100Hex. Cap Screw M10 x 100
-
65233601466 Elastic Locking Nut M10Elastic Locking Nut M10
-
66503194105 Rear ShaftRear Shaft
-
67503194069 Bolt M8 x 261mmBolt M8 x 261mm
-
68503194412 Axle SliderAxle Slider
-
69250200159 Conical Spring WasherConical Spring Washer
-
70233281466 Elastic Flange Nut M8Elastic Flange Nut M8
-
71503193735 Black Wheel CapBlack Wheel Cap
-
72503192771 Black Wheel CapBlack Wheel Cap
-
73503190434 Labyrinth SealLabyrinth Seal
-
74503190428 SpacerSpacer
-
75503193760 Wheel 200mm. Includes 75 To 77Wheel 200mm. Includes 75 To 77
-
76293350055 Ball BearingBall Bearing
-
78503191263 SpacerSpacer
-
79503193097 SpacerSpacer
