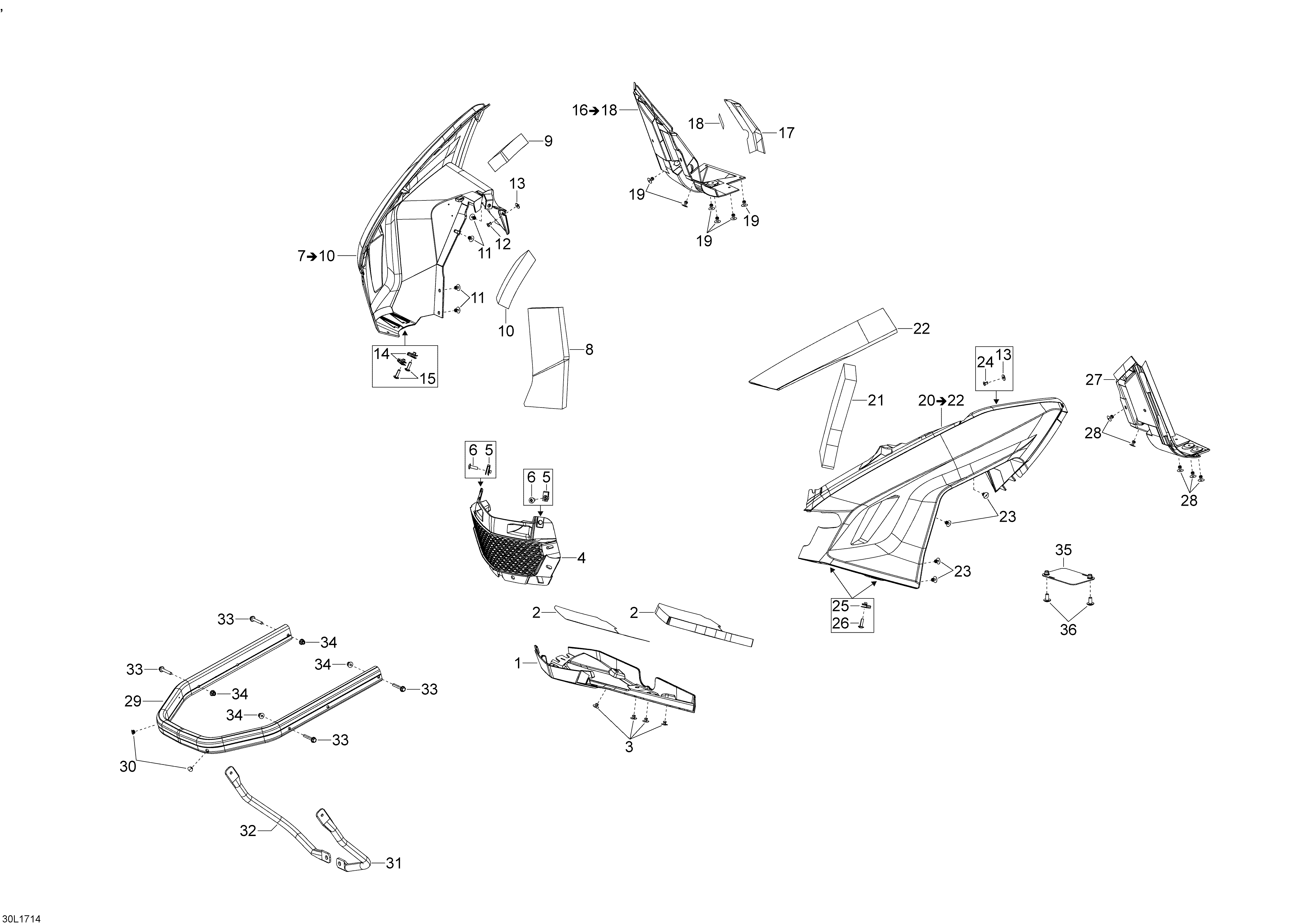

09- Bottom Pan для BRP Lynx Commander STD, 2017 - 2017
-
№АртикулНазвание
-
1502007184 Black Front Bottom PanBlack Front Bottom Pan
-
2508000840 Heat Shield. Model-900 ACEHeat Shield. Model-900 ACE
-
2502007002 InsulatorInsulator
-
3293150103 Pop Rivet 3/16''Pop Rivet 3/16''
-
4502007145 Front GrillFront Grill
-
5250000048 Panel Nut M6Panel Nut M6
-
6250000722 Torx Truss Screw M6 x 20Torx Truss Screw M6 x 20
-
7502007188 Black RH Bottom Pan Ass?y. Includes 7 To 10Black RH Bottom Pan Ass?y. Includes 7 To 10
-
8502007526 InsulatorInsulator
-
9502007008 InsulatorInsulator
-
10502007009 InsulatorInsulator
-
11293150104 Pop Rivet 3/16''Pop Rivet 3/16''
-
12390402200 Pop Rivet 3/16''Pop Rivet 3/16''
-
13234052450 Flat Washer M5Flat Washer M5
-
14250000048 Panel Nut M6Panel Nut M6
-
15250000722 Torx Truss Screw M6 x 20Torx Truss Screw M6 x 20
-
16502007193 Black RH Rear Bottom Pan Ass?y. Model-900 ACE, Includes 16 To 18Black RH Rear Bottom Pan Ass?y. Model-900 ACE, Includes 16 To 18
-
16502007191 Black RH Rear Bottom Pan Ass?y. Model-600 HO ETEC, Includes 16 To 18Black RH Rear Bottom Pan Ass?y. Model-600 HO ETEC, Includes 16 To 18
-
17502007038 Aluminium FoilAluminium Foil
-
1844110 Al-TapeAl-Tape
-
19293150104 Pop Rivet 3/16''Pop Rivet 3/16''
-
20502007665 Black LH Bottom Pan Ass?y. Includes 20 To 22Black LH Bottom Pan Ass?y. Includes 20 To 22
-
21502007003 InsulatorInsulator
-
22502007185 InsulatorInsulator
-
23293150104 Pop Rivet 3/16''Pop Rivet 3/16''
-
24390402200 Pop Rivet 3/16''Pop Rivet 3/16''
-
25250000048 Panel Nut M6Panel Nut M6
-
26250000722 Torx Truss Screw M6 x 20Torx Truss Screw M6 x 20
-
27502007195 Black LH Rear Bottom PanBlack LH Rear Bottom Pan
-
28293150104 Pop Rivet 3/16''Pop Rivet 3/16''
-
29502007685 Black BumperBlack Bumper
-
30293730047 Black DartBlack Dart
-
31502007014 LH Bumper Support TubeLH Bumper Support Tube
-
32502007015 RH Bumper Support TubeRH Bumper Support Tube
-
33207664044 Hex. Flange Screw M6 x 40Hex. Flange Screw M6 x 40
-
34233261414 Elastic Flange Nut M6Elastic Flange Nut M6
-
35518328317 Oil Plate. Model-900 ACEOil Plate. Model-900 ACE
-
36250000767 Torx Truss Screw M6 x 12. Model-900 ACETorx Truss Screw M6 x 12. Model-900 ACE
