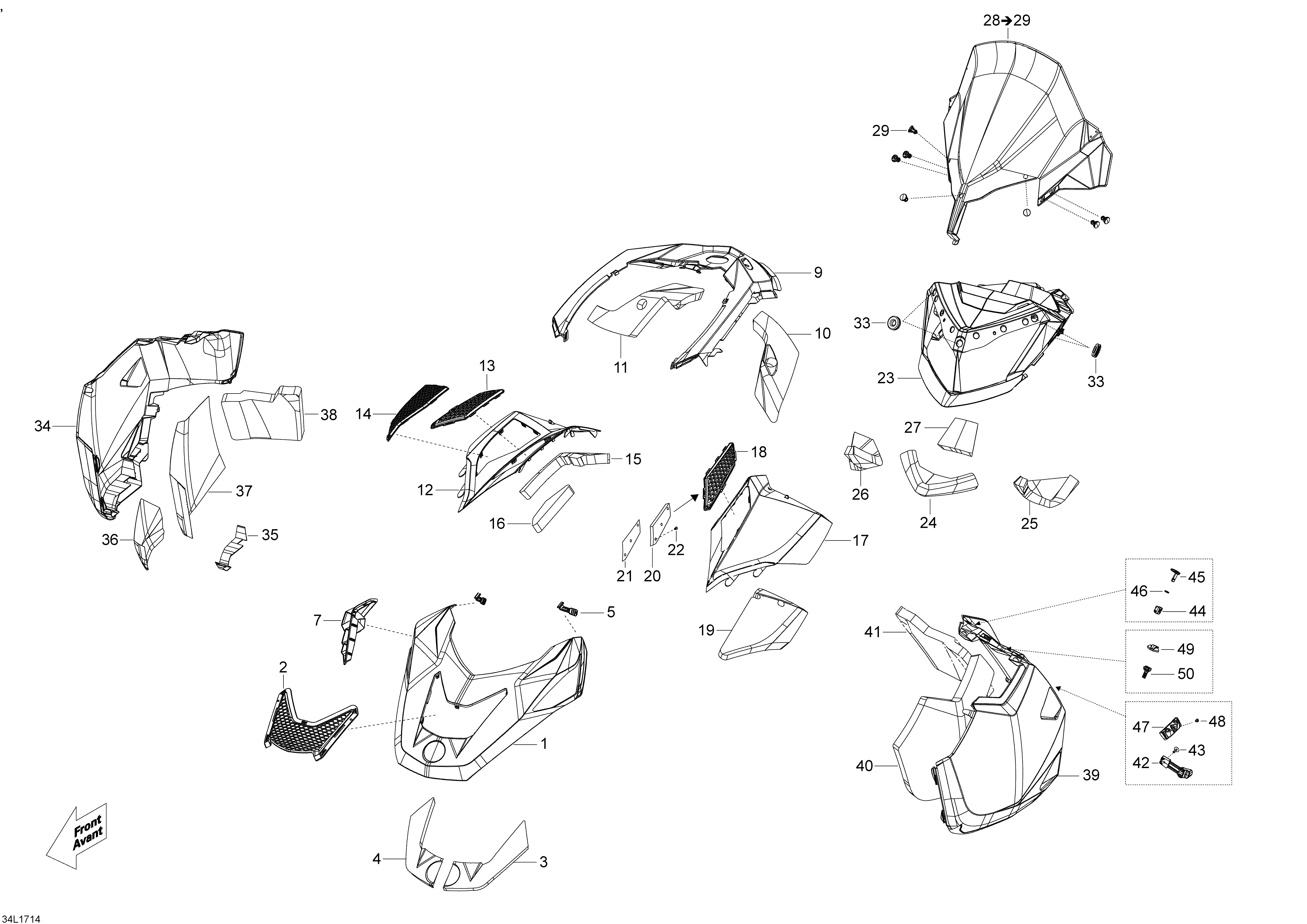

09- Hood And Windshield для BRP Lynx Commander STD, 2017 - 2017
-
№АртикулНазвание
-
1517305440 Gray HoodGray Hood
-
2517304843 Hood GrillHood Grill
-
3517304330 InsulatorInsulator
-
4517304214 InsulatorInsulator
-
5517304289 LatchLatch
-
7517304155 Scoop Grill. Model-600 E-TECScoop Grill. Model-600 E-TEC
-
7517304855 Intake Grill. Model 900 ACEIntake Grill. Model 900 ACE
-
9517304820 Black Console. Model-600 E-TECBlack Console. Model-600 E-TEC
-
9517305609 Black Console. Model-900 ACEBlack Console. Model-900 ACE
-
10517305644 InsulatorInsulator
-
11517304318 InsulatorInsulator
-
12517305446 Gray RH Side Access PanelGray RH Side Access Panel
-
13517304015 RH Access Panel GrillRH Access Panel Grill
-
14517304016 RH Lower Access Panel GrillRH Lower Access Panel Grill
-
15517304311 InsulatorInsulator
-
16517305987 InsulatorInsulator
-
17517305450 Gray LH Side Access PanelGray LH Side Access Panel
-
18517303893 LH Access Panel GrillLH Access Panel Grill
-
19517304313 InsulatorInsulator
-
20517305311 Insulator. Model-600 E-TECInsulator. Model-600 E-TEC
-
21502007312 Grill Plate. Model-600 E-TECGrill Plate. Model-600 E-TEC
-
22414644300 Dart. Model-600 E-TECDart. Model-600 E-TEC
-
23517304272 Indicator SupportIndicator Support
-
24517304314 InsulatorInsulator
-
25517304315 InsulatorInsulator
-
26517304316 InsulatorInsulator
-
27517304319 InsulatorInsulator
-
28860201000 Windshield (580) Ass'y. Includes 28 To 29Windshield (580) Ass'y. Includes 28 To 29
-
29517304744 KnobKnob
-
33517303756 GrommetGrommet
-
34517304866 Black RH Side PanelBlack RH Side Panel
-
35517304215 Aluminum FoilAluminum Foil
-
36517304216 Aluminum FoilAluminum Foil
-
37517303890 RH FoamRH Foam
-
37517304512 FoilFoil
-
38517304310 RH Foam RearRH Foam Rear
-
39517304869 Black LH Side PanelBlack LH Side Panel
-
40517303891 LH FoamLH Foam
-
41517304309 LH Foam RearLH Foam Rear
-
42517304572 Latch-PanelLatch-Panel
-
43293150108 Pop Rivet 3/16''Pop Rivet 3/16''
-
44517304297 Quarter-Turn Handle FastenerQuarter-Turn Handle Fastener
-
45517304296 Quarter-Turn HandleQuarter-Turn Handle
-
46517304538 Locking PlateLocking Plate
-
47517304497 Side Panel SupportSide Panel Support
-
48293150211 RivetRivet
-
49517304075 End PieceEnd Piece
-
50517306057 Latch-PanelLatch-Panel
