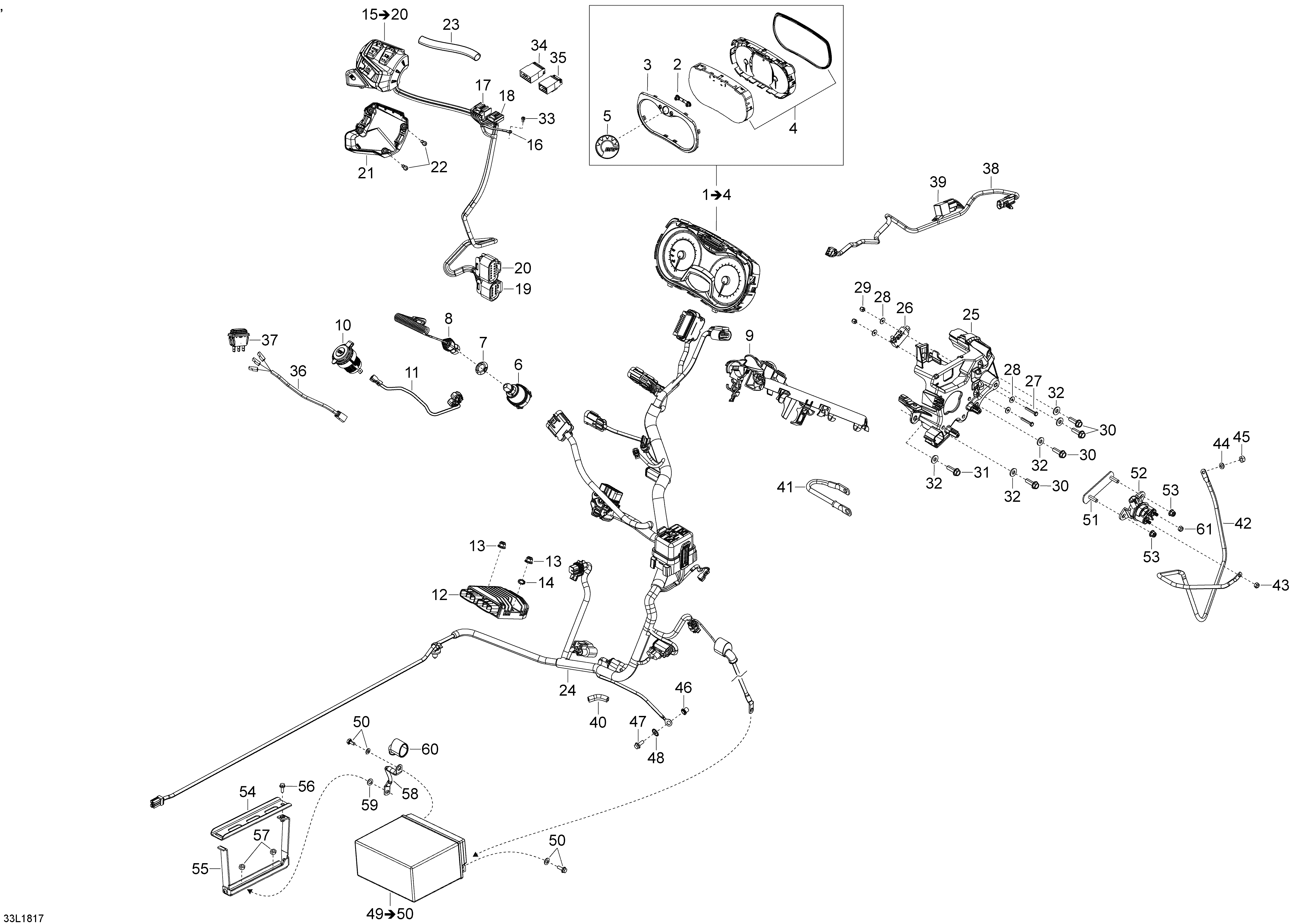

10- Electrical System для BRP Lynx 49 Ranger 900 ACE - 2018
-
№АртикулНазвание
-
1515177913 Indicator. Includes 1 To 4Indicator. Includes 1 To 4
-
2415129355 Speedometer ButtonSpeedometer Button
-
3415129370 Gauge RingGauge Ring
-
4415129349 LensLens
-
5516006224 BRP Logo, 20 mmBRP Logo, 20 mm
-
6515178225 DESS SwitchDESS Switch
-
7278002963 Safety NutSafety Nut
-
8515178044 DESS CapDESS Cap
-
8515178046 DESS Cap (Learning Key)DESS Cap (Learning Key)
-
9515177134 Connector PlateConnector Plate
-
10710001248 Outlet DCOutlet DC
-
11515177400 12 Volts Outlet Harness12 Volts Outlet Harness
-
12515177325 Voltage RegulatorVoltage Regulator
-
13233261414 Hex. Flanged Elastic Nut M6Hex. Flanged Elastic Nut M6
-
14234461608 External Serrated Lock Washer 6 mmExternal Serrated Lock Washer 6 mm
-
15515178197 LH Switch Housing. Includes 15 To 20LH Switch Housing. Includes 15 To 20
-
16515175504 Ring TerminalRing Terminal
-
17515175543 Female Terminal Housing, 6 CircuitsFemale Terminal Housing, 6 Circuits
-
17515175231 Female TerminalFemale Terminal
-
18515175845 Female Terminal Housing, 4 CircuitsFemale Terminal Housing, 4 Circuits
-
18515175231 Female TerminalFemale Terminal
-
19710001928 HousingHousing
-
20710001930 Female Housing, 12 CircuitsFemale Housing, 12 Circuits
-
21515177147 Housing PlateHousing Plate
-
22250000671 Torx ScrewTorx Screw
-
23415129879 Protector TubeProtector Tube
-
24515177943 Wiring HarnessWiring Harness
-
25515177347 PlatePlate
-
26515177460 Switch Ass'ySwitch Ass'y
-
27207132044 Hex Screw M3 X 20Hex Screw M3 X 20
-
28234032600 Flat Washer M3, StainlessFlat Washer M3, Stainless
-
29232531423 Elastic Stop Nut M3Elastic Stop Nut M3
-
30210262040 Hex. Flanged Screw M6 X 20Hex. Flanged Screw M6 X 20
-
31210262550 Hex. Flanged Forming Screw M6 X 25Hex. Flanged Forming Screw M6 X 25
-
32250200039 Flat WasherFlat Washer
-
33250000690 Pan Screw Forming, 7500CPan Screw Forming, 7500C
-
34515175662 Male Terminal Housing, 6 CircuitsMale Terminal Housing, 6 Circuits
-
35515175846 Male Terminal Housing, 4 CircuitsMale Terminal Housing, 4 Circuits
-
36515177568 ECO HarnessECO Harness
-
37515177569 ECO Rocker SwitchECO Rocker Switch
-
38515177646 Fan Harness. Includes 38 To 39Fan Harness. Includes 38 To 39
-
39515177041 RelayRelay
-
40520001525 TrimTrim
-
41515177014 Ground WireGround Wire
-
42515177427 Battery WireBattery Wire
-
43232561414 Elastic Stop Nut M6Elastic Stop Nut M6
-
44234061410 Flat Washer 6 mmFlat Washer 6 mm
-
45232561414 Elastic Stop Nut M6Elastic Stop Nut M6
-
46233261414 Hex. Flanged Elastic Nut M6Hex. Flanged Elastic Nut M6
-
47207662044 Hex. Flanged Screw M6 X 20Hex. Flanged Screw M6 X 20
-
48250200041 Lock Washer Serrated M6Lock Washer Serrated M6
-
49415129898 Lead Battery 18 Amperes. Includes 49 To 50Lead Battery 18 Amperes. Includes 49 To 50
-
50250000282 Battery Bolt KitBattery Bolt Kit
-
51515177740 Relay SupportRelay Support
-
52278003012 Starter RelayStarter Relay
-
53233261414 Hex. Flanged Elastic Nut M6Hex. Flanged Elastic Nut M6
-
54518327281 Battery StrapBattery Strap
-
55518327282 Battery StrapBattery Strap
-
56207561644 Hex. Flanged Screw M6 X 16, Scotch GripHex. Flanged Screw M6 X 16, Scotch Grip
-
57233261416 Elastic Flanged Nut M6Elastic Flanged Nut M6
-
58515176780 Ground WireGround Wire
-
59234061410 Flat Washer 6 mmFlat Washer 6 mm
-
60570151000 Protection CapProtection Cap
-
61232561414 Elastic Stop Nut M6Elastic Stop Nut M6
