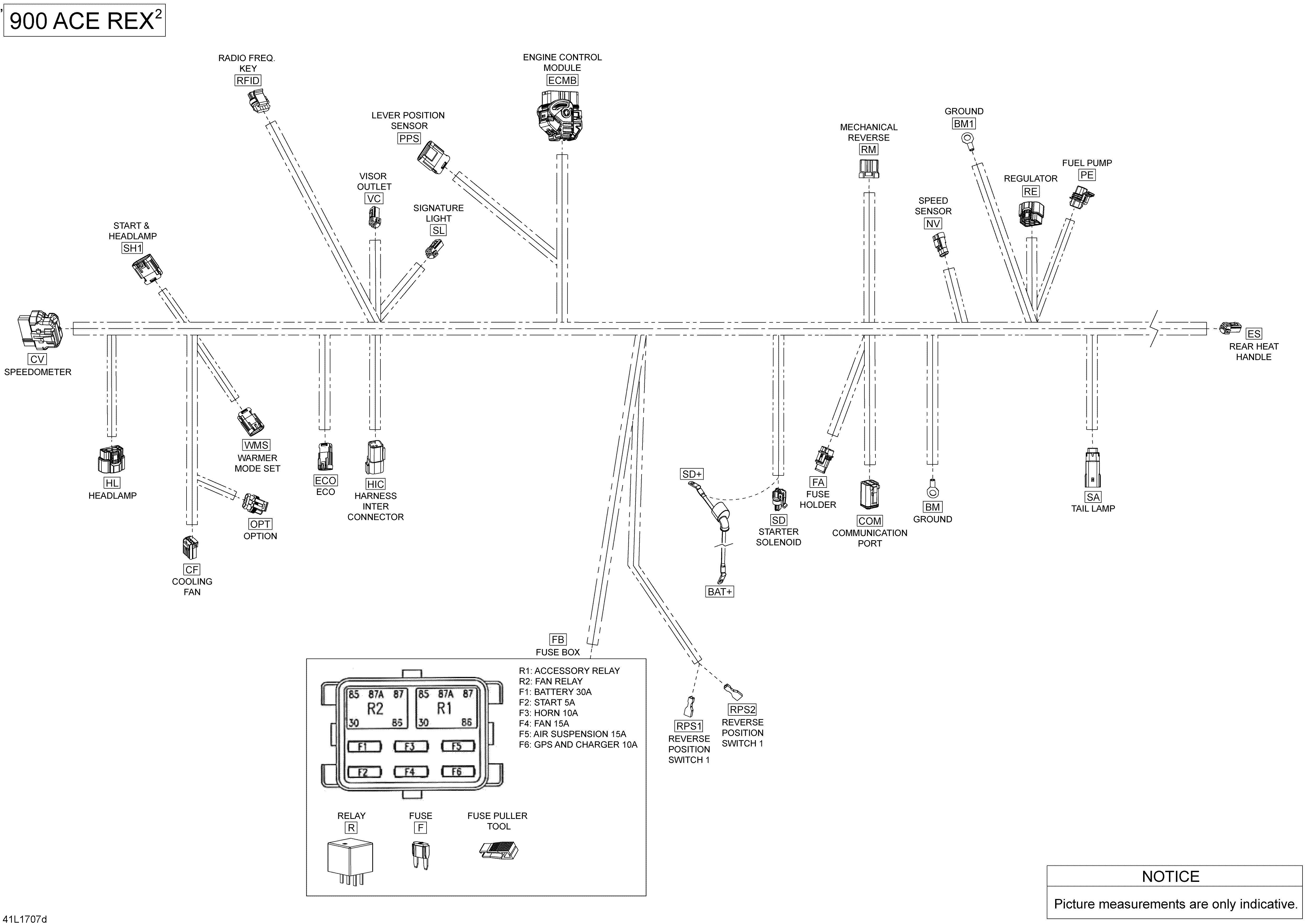

10- Main Harness - 515177943 - 900 ACE 2018 для BRP Lynx 49 Ranger 900 ACE - 2018
-
№АртикулНазвание
-
1515177943 Main Harness Ass'y. Includes 1 To WMSMain Harness Ass'y. Includes 1 To WMS
-
2515175442 Tubing 6mmTubing 6mm
-
2409901700 Tubing 9mmTubing 9mm
-
2415079900 Tubing 11mmTubing 11mm
-
2409901800 Tubing 13mmTubing 13mm
-
2415080000 Tubing 16mmTubing 16mm
-
2409901600 Tubing 19mmTubing 19mm
-
2409902200 Tubing 25mmTubing 25mm
-
CF515175845 Female Housing, 4 CircuitsFemale Housing, 4 Circuits
-
CF515175231 Female TerminalFemale Terminal
-
COM278002896 Female Housing, 6 CircuitsFemale Housing, 6 Circuits
-
COM515175678 Female Wedge, 6 CircuitsFemale Wedge, 6 Circuits
-
COM293000052 Sealing CapSealing Cap
-
COM278001665 Female TerminalFemale Terminal
-
CV515175801 Female Housing, 24 CircuitsFemale Housing, 24 Circuits
-
CV515175802 Retainer BlockRetainer Block
-
CV515175812 PlugPlug
-
CV710000399 Female HousingFemale Housing
-
CV515175803 Wire SealWire Seal
-
CV515175806 Female TerminalFemale Terminal
-
CV710001131 Female TerminalFemale Terminal
-
ECMB710001588 Female Housing, 48 CircuitsFemale Housing, 48 Circuits
-
ECMB710001591 CoverCover
-
ECMB710001592 PlugPlug
-
ECMB710001593 PlugPlug
-
ECMB710001589 Female TerminalFemale Terminal
-
ECMB710001590 Female TerminalFemale Terminal
-
ECO710002593 Male Housing, 3 CircuitsMale Housing, 3 Circuits
-
ECO710001233 SealSeal
-
ECO710001224 Male TerminalMale Terminal
-
ES515175658 Female Housing, 2 CircuitsFemale Housing, 2 Circuits
-
ES515175231 Female TerminalFemale Terminal
-
F710000742 Fuse 5AFuse 5A
-
F710000743 Fuse 7,5AFuse 7,5A
-
F710000744 Fuse 10AFuse 10A
-
F710000745 Fuse 15AFuse 15A
-
F710000746 Fuse 20AFuse 20A
-
F710000747 Fuse 30AFuse 30A
-
FA278001325 Fuse HolderFuse Holder
-
FA710000113 Female TerminalFemale Terminal
-
FA710001613 Fuse 40AFuse 40A
-
FB278002824 Fuse Box Base Ass'yFuse Box Base Ass'y
-
FB515177451 Fuse Box CoverFuse Box Cover
-
FB278000218 Wire SealWire Seal
-
FB278001065 Wire SealWire Seal
-
FB710000048 Wire SealWire Seal
-
FB278002578 Female TerminalFemale Terminal
-
FB710000890 Female TerminalFemale Terminal
-
FB710000918 Female TerminalFemale Terminal
-
HIC278000739 Male Housing, 4 CircuitsMale Housing, 4 Circuits
-
HIC278000738 Male Lock, 4 CircuitsMale Lock, 4 Circuits
-
HIC293000052 Sealing CapSealing Cap
-
HIC278001665 Female TerminalFemale Terminal
-
HL515177296 Female Housing, 5 CircuitsFemale Housing, 5 Circuits
-
HL710001228 Female TerminalFemale Terminal
-
HL710001332 SealSeal
-
NV710000568 Male Housing, 3 CircuitsMale Housing, 3 Circuits
-
NV515176164 Male TerminalMale Terminal
-
NV515176621 Wire SealWire Seal
-
NV710000992 ClipClip
-
OPT409209600 Female Housing, 3 CircuitsFemale Housing, 3 Circuits
-
OPT278001014 Female TerminalFemale Terminal
-
OPT710001340 Female TerminalFemale Terminal
-
OPT278001013 Wire SealWire Seal
-
PE710001132 Female Housing, 2 CircuitsFemale Housing, 2 Circuits
-
PE710001133 LockLock
-
PE409013700 PlugPlug
-
PE710000643 SealSeal
-
PE278001481 Female TerminalFemale Terminal
-
PPS710001231 Male Housing, 6 CircuitsMale Housing, 6 Circuits
-
PPS710001224 Male TerminalMale Terminal
-
PPS710001233 SealSeal
-
PPS710000992 ClipClip
-
R710001778 Relay 20ARelay 20A
-
RE710000879 Female Housing, 3 CircuitsFemale Housing, 3 Circuits
-
RE710000882 CapCap
-
RE710000881 SealSeal
-
RE710000877 Female TerminalFemale Terminal
-
RFID710001161 Female Housing, 4 CircuitsFemale Housing, 4 Circuits
-
RFID710001164 Female TerminalFemale Terminal
-
RFID710001163 SealSeal
-
RM515175543 Female Housing, 6 CircuitsFemale Housing, 6 Circuits
-
RM515175231 Female TerminalFemale Terminal
-
RPS1710000082 Female TerminalFemale Terminal
-
RPS2710000082 Female TerminalFemale Terminal
-
SA515178023 Female Housing, 3 CircuitsFemale Housing, 3 Circuits
-
SD515177192 Female Housing, 2 CircuitsFemale Housing, 2 Circuits
-
SD710000925 Female TerminalFemale Terminal
-
SD710001332 SealSeal
-
SH1710001929 Male Housing, 12 CircuitMale Housing, 12 Circuit
-
SH1710001223 Male TerminalMale Terminal
-
SH1710001224 Male TerminalMale Terminal
-
SH1710001225 CapCap
-
SH1710001233 SealSeal
-
SH1710001332 SealSeal
-
SL515175658 Female Housing, 2 CircuitsFemale Housing, 2 Circuits
-
SL515175231 Female TerminalFemale Terminal
-
VC515175658 Female Housing, 2 CircuitsFemale Housing, 2 Circuits
-
VC515175231 Female TerminalFemale Terminal
-
WMS710001927 Male Housing, 8 CircuitsMale Housing, 8 Circuits
-
WMS710001224 Male TerminalMale Terminal
-
WMS710001233 SealSeal
