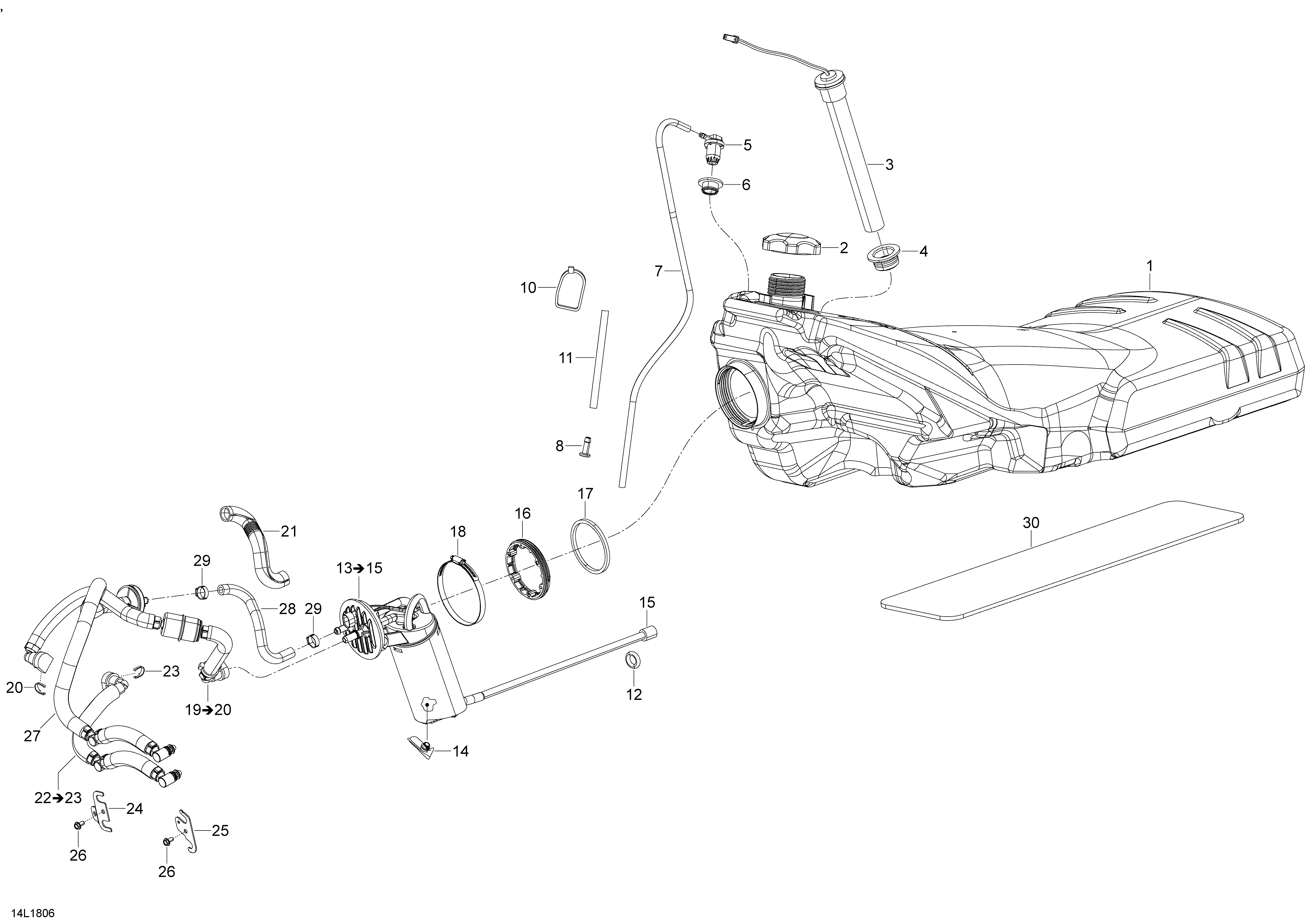

02- Fuel E - TEC для BRP Lynx 69 Ranger 800R E-TEC - 2018
-
№АртикулНазвание
-
1513033757 Fuel TankFuel Tank
-
2513033722 Fuel Tank Cap. North AmericaFuel Tank Cap. North America
-
2513033723 Fuel Tank Cap. EuropeFuel Tank Cap. Europe
-
3513033538 Fuel SensorFuel Sensor
-
4293720113 GrommetGrommet
-
5513033842 Check ValveCheck Valve
-
6513033596 GrommetGrommet
-
7415080200 Hose, PolyurethaneHose, Polyurethane
-
40414554800 Spring Clamp. Not ShownSpring Clamp. Not Shown
-
10414115200 Tie-Rap 180 mmTie-Rap 180 mm
-
40414227300 ClipClip
-
11504152900 Protector TubeProtector Tube
-
12293300184 O RingO Ring
-
13513033643 Fuel Pump Ass'y. Includes 300 to 300,002Fuel Pump Ass'y. Includes 300 to 300,002
-
14415129451 Fuel FilterFuel Filter
-
15414872100 Fuel FilterFuel Filter
-
16513033180 RingRing
-
17513033334 GasketGasket
-
18513033628 ClampClamp
-
19513033589 Hose Ass'y. Includes 500 to 500,001Hose Ass'y. Includes 500 to 500,001
-
20513033135 Locking ClipLocking Clip
-
40414115200 Tie-Rap 180 mmTie-Rap 180 mm
-
21415080000 Tubing 16 mmTubing 16 mm
-
22513033594 Hose Ass'y. Includes 560 to 560,001Hose Ass'y. Includes 560 to 560,001
-
23513033135 Locking ClipLocking Clip
-
24513033542 BracketBracket
-
25513033593 BracketBracket
-
26207551044 Flanged Hex. Screw M5 X 10Flanged Hex. Screw M5 X 10
-
27513033631 Hose Ass`YHose Ass`Y
-
40414115200 Tie-Rap 180 mmTie-Rap 180 mm
-
40414115200 Tie-Rap 180 mmTie-Rap 180 mm
-
28513033544 Formed HoseFormed Hose
-
29293650047 Crimp ClampCrimp Clamp
-
30513033788 Insulate FoamInsulate Foam
