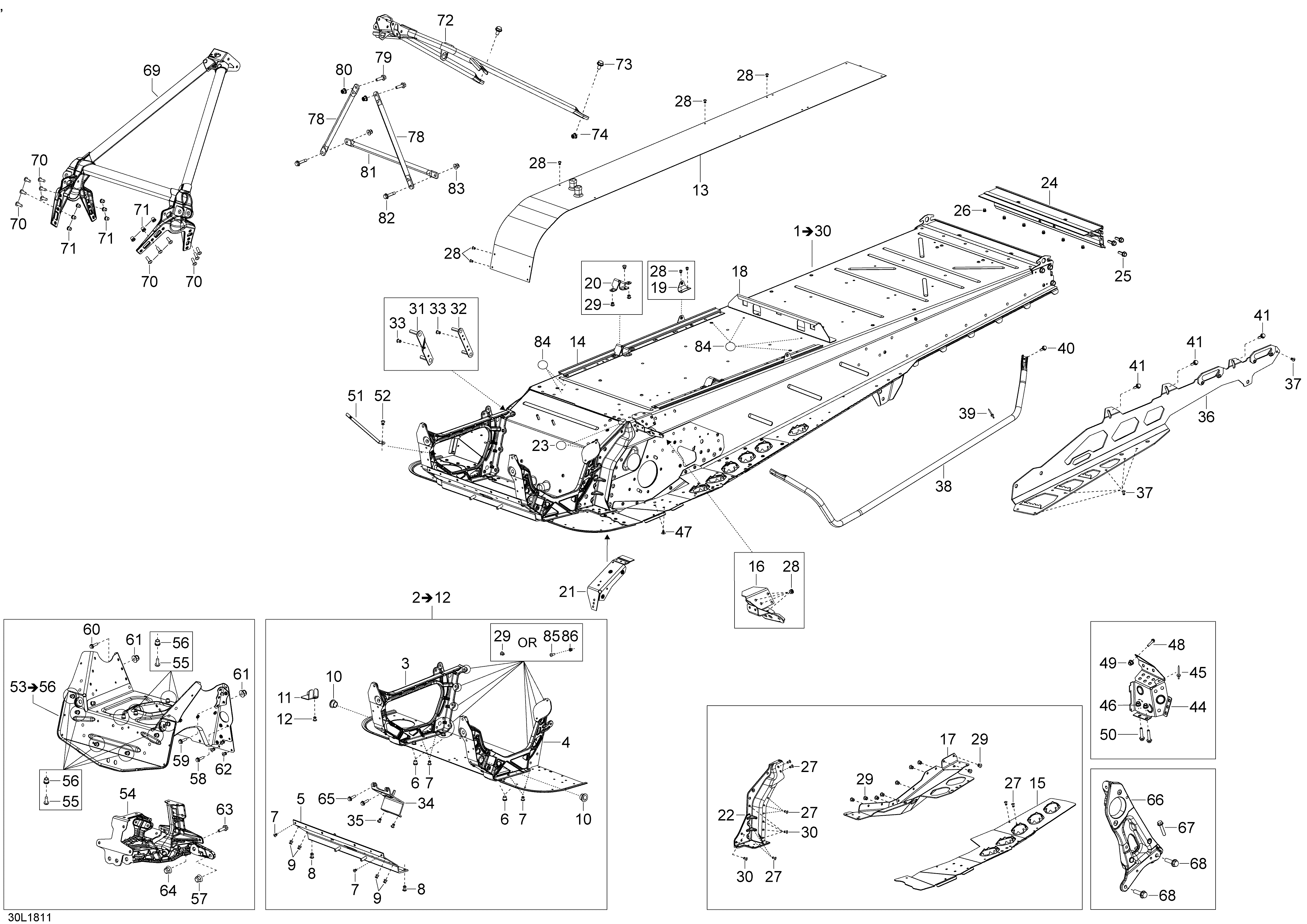

09- Frame 69RANGER - 800R E-TEC для BRP Lynx 69 Ranger 800R E-TEC - 2018
-
№АртикулНазвание
-
1518329704 Black, Frame. Includes 1 to 30Black, Frame. Includes 1 to 30
-
2518329691 Module E. Includes 2 to 12Module E. Includes 2 to 12
-
3518326795 RH MemberRH Member
-
4518326796 LH MemberLH Member
-
5518326198 Front MemberFront Member
-
6605636002 Clinch Nut Hexsert M8Clinch Nut Hexsert M8
-
7390909100 Avex RivetAvex Rivet
-
8293150120 Hemlock Rivet 6.5 mmHemlock Rivet 6.5 mm
-
9293150119 Hemlock Rivet, 6.5 mmHemlock Rivet, 6.5 mm
-
10505072690 Leg BushingLeg Bushing
-
11518328194 Muffler SupportMuffler Support
-
12293150163 Rivet Hucklok 4,8 mm HKLP-R6-5GATRivet Hucklok 4,8 mm HKLP-R6-5GAT
-
13509000976 Tunnel Radiator. Includes 13 to 13,2Tunnel Radiator. Includes 13 to 13,2
-
13.1518329083 Rear Arm BracketRear Arm Bracket
-
13.2518329083 Rear Arm BracketRear Arm Bracket
-
14518326107 Fastening railFastening rail
-
15518328918 Footrest LHFootrest LH
-
15518328919 Footrest RHFootrest RH
-
16518327884 Fastening BracketFastening Bracket
-
17518328014 LH Drive Axle CoverLH Drive Axle Cover
-
17518328015 RH Drive Axle CoverRH Drive Axle Cover
-
18518327003 Battery SupportBattery Support
-
19518329164 Seat Box BracketSeat Box Bracket
-
20518329109 LH Support Tube BracketLH Support Tube Bracket
-
20518329110 RH Support Tube BracketRH Support Tube Bracket
-
21518328096 Clinch Nut PlateClinch Nut Plate
-
22518325643 Frame Corner LHFrame Corner LH
-
22518325644 Frame Corner RHFrame Corner RH
-
23518325560 Adhesive PatchAdhesive Patch
-
24518328749 Rear ProfileRear Profile
-
25207582586 Hex. Flanged Screw M8 X 25, Scotch GripHex. Flanged Screw M8 X 25, Scotch Grip
-
27390909100 Avex RivetAvex Rivet
-
28390909200 Avex RivetAvex Rivet
-
29293150119 Hemlock Rivet, 6.5 mmHemlock Rivet, 6.5 mm
-
30293150183 RivetRivet
-
31518326123 Gearbox Front PlateGearbox Front Plate
-
32518326124 Gearbox Rear PlateGearbox Rear Plate
-
33390402200 Pop Rivet 3/16''Pop Rivet 3/16''
-
34518325943 MAG Engine SupportMAG Engine Support
-
35293150119 Hemlock Rivet, 6.5 mmHemlock Rivet, 6.5 mm
-
38518327595 Footboard Support Tube LHFootboard Support Tube LH
-
39390909100 Avex RivetAvex Rivet
-
38518327596 Footboard Support Tube RHFootboard Support Tube RH
-
40207662056 Screw Hex. Flange M6 x 20Screw Hex. Flange M6 x 20
-
44518328569 Black Toe Hook LHBlack Toe Hook LH
-
46605636003 Clinch Nut M6 HexsertClinch Nut M6 Hexsert
-
44518328571 Black Toe Hook RHBlack Toe Hook RH
-
48207662056 Screw Hex. Flange M6 x 20Screw Hex. Flange M6 x 20
-
49233261414 Hex. Flanged Elastic Nut M6Hex. Flanged Elastic Nut M6
-
50233261414 Hex. Flanged Elastic Nut M6Hex. Flanged Elastic Nut M6
-
51514054846 Spring BracketSpring Bracket
-
52390909200 Avex RivetAvex Rivet
-
53518328392 Cross Member. Includes 53 to 56Cross Member. Includes 53 to 56
-
54518327487 Front Suspension SupportFront Suspension Support
-
55207662044 Hex. Flanged Screw M6 X 20Hex. Flanged Screw M6 X 20
-
56233261414 Hex. Flanged Elastic Nut M6Hex. Flanged Elastic Nut M6
-
57233281414 Hex. Flanged Elastic Nut M8Hex. Flanged Elastic Nut M8
-
58210262050 Washer Head Hexagonal ScrewWasher Head Hexagonal Screw
-
59207662544 Hex. Flanged Screw M6 X 25Hex. Flanged Screw M6 X 25
-
60207563034 Hex. Flanged Screw M6 X 30, Scotch GripHex. Flanged Screw M6 X 30, Scotch Grip
-
61233261414 Hex. Flanged Elastic Nut M6Hex. Flanged Elastic Nut M6
-
62293150163 Rivet Hucklok 4,8 mm HKLP-R6-5GATRivet Hucklok 4,8 mm HKLP-R6-5GAT
-
65207661644 Hex. Flanged Screw M6 X 16Hex. Flanged Screw M6 X 16
-
66518328434 Pulley SupportPulley Support
-
67207582586 Hex. Flanged Screw M8 X 25, Scotch GripHex. Flanged Screw M8 X 25, Scotch Grip
-
68207583086 Flanged Hex. Screw M8 X 30, Scotch GripFlanged Hex. Screw M8 X 30, Scotch Grip
-
69518326970 Front MemberFront Member
-
72518329105 Upper Support TubeUpper Support Tube
-
73207182044 Hex. Screw M8 X 20Hex. Screw M8 X 20
-
74232581414 Hex. Elastic Stop Nut M8Hex. Elastic Stop Nut M8
-
74.1512061157 Guide TubeGuide Tube
-
78518325114 Upper Column SupportUpper Column Support
-
79207662056 Screw Hex. Flange M6 x 20Screw Hex. Flange M6 x 20
-
80233261416 Elastic Flanged Nut M6Elastic Flanged Nut M6
-
81518325115 Center Column SupportCenter Column Support
-
82207662556 Hex. Flange Screw M6 X 25Hex. Flange Screw M6 X 25
-
83233261414 Hex. Flanged Elastic Nut M6Hex. Flanged Elastic Nut M6
-
84518325560 Adhesive PatchAdhesive Patch
