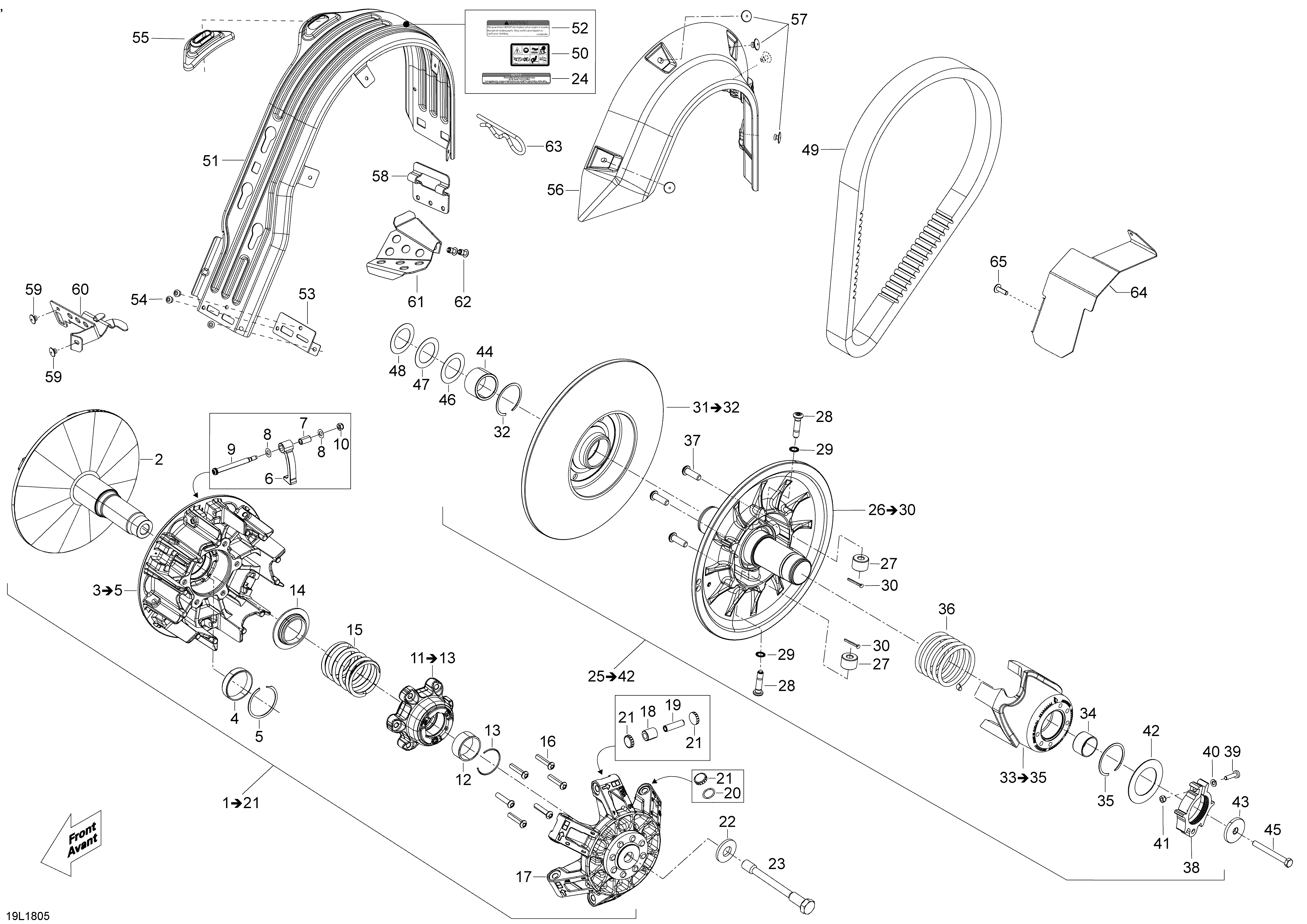

05- Pulley - 69 Ranger - 900 ACE для BRP Lynx 69 Ranger 900 ACE - 2018
-
№АртикулНазвание
-
2417224091 Fixed Flange Ass'yFixed Flange Ass'y
-
3417224044 Flange-Slid.AssyFlange-Slid.Assy
-
6417224035 Ramp 748Ramp 748
-
8417223660 Stopper WasherStopper Washer
-
9417223694 Ramp AxleRamp Axle
-
10232551414 Elastic Stop Nut M5Elastic Stop Nut M5
-
11417223650 Spring Cover Ass'ySpring Cover Ass'y
-
14417223752 Seat SpringSeat Spring
-
15417223749 Spring (Red/Orange)Spring (Red/Orange)
-
16250000580 Torx Screw M6 X 30Torx Screw M6 X 30
-
17417223865 Governor Cup Ass'yGovernor Cup Ass'y
-
18417223767 RollerRoller
-
19417223257 Roller AxleRoller Axle
-
20293300185 O-RingO-Ring
-
21417223919 Slider ShoeSlider Shoe
-
22250200144 Conical Spring Washer M14Conical Spring Washer M14
-
23417300432 Pulley Drive BoltPulley Drive Bolt
-
24516005503 Decal, EnglishDecal, English
-
26417127433 Fixed Flange Ass'yFixed Flange Ass'y
-
31417127366 Slider Flange Ass'ySlider Flange Ass'y
-
33417127411 Cam Ass'yCam Ass'y
-
36417127467 Release SpringRelease Spring
-
38415129604 Calibration Ass'yCalibration Ass'y
-
39205052544 Socket Screw M5 X 25Socket Screw M5 X 25
-
40234051410 Flat Washer M5Flat Washer M5
-
41232551414 Elastic Stop Nut M5Elastic Stop Nut M5
-
42417127155 WasherWasher
-
43517302322 Strength WasherStrength Washer
-
45207588044 Hex. Cap Screw M8 X 80Hex. Cap Screw M8 X 80
-
46417300252 SpacerSpacer
-
46417300252 SpacerSpacer
-
47417300265 SpacerSpacer
-
48504112000 ShimShim
-
49417300383 Drive BeltDrive Belt
-
50516003919 Warning DecalWarning Decal
-
51417300382 Belt GuardBelt Guard
-
52516006900 Security Label, Belt GuardSecurity Label, Belt Guard
-
53417300380 ReinforcementReinforcement
-
54390909200 Avex RivetAvex Rivet
-
55417300381 GuideGuide
-
56417300356 Side ProtectorSide Protector
-
57293150103 Black Pop Rivet 3/16''Black Pop Rivet 3/16''
-
58417300413 Belt Guard BracketBelt Guard Bracket
-
59293150104 Pop Rivet 3/16''Pop Rivet 3/16''
-
60417300364 Belt Guard BracketBelt Guard Bracket
-
61518327035 Brake Hose CoverBrake Hose Cover
-
62293150163 Rivet Hucklok 4,8 mm HKLP-R6-5GATRivet Hucklok 4,8 mm HKLP-R6-5GAT
-
63114045200 Hair PinHair Pin
-
65293150096 Hemlock Rivet, 6.5 mmHemlock Rivet, 6.5 mm
