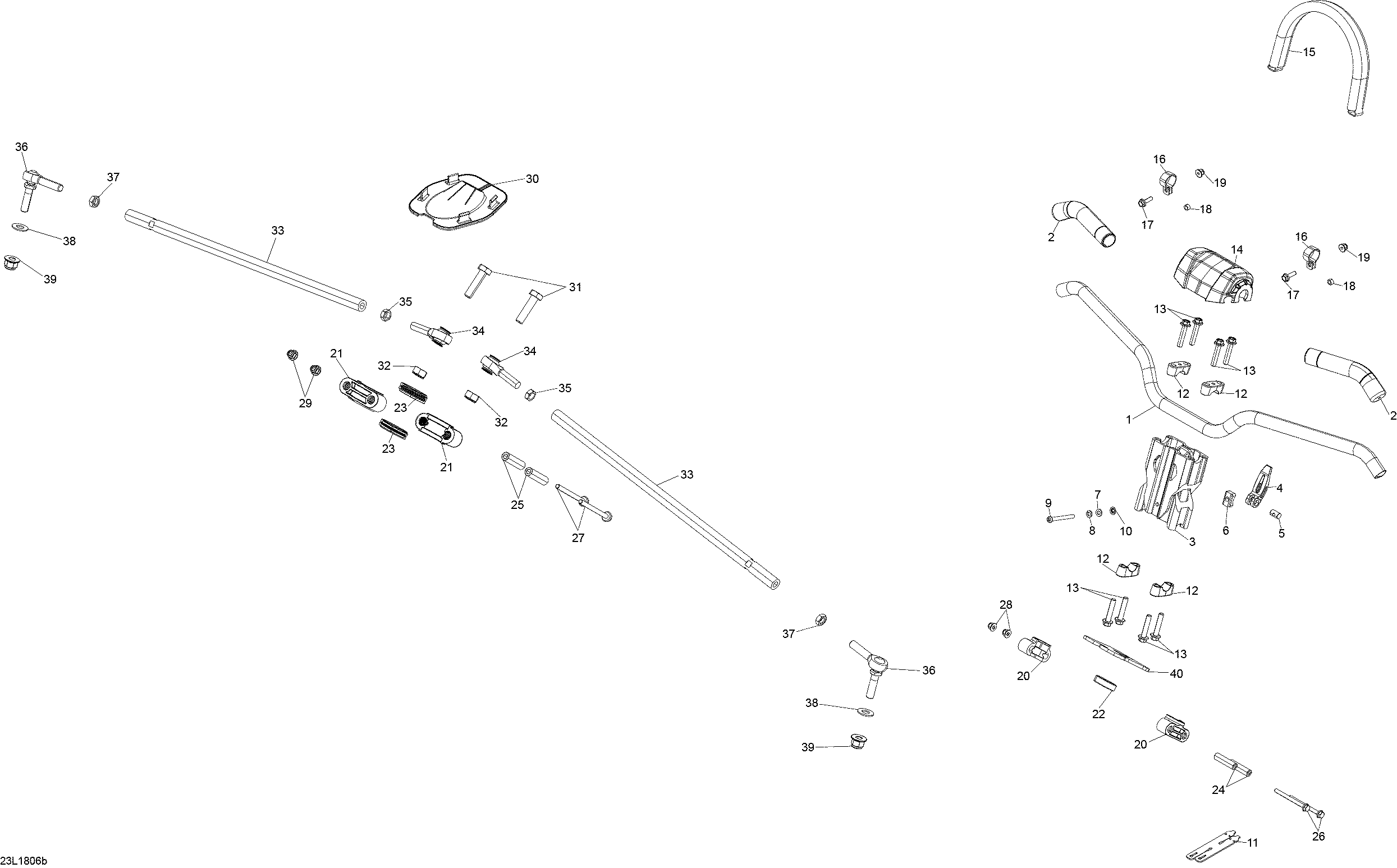

07- Steering 69 Ranger STD для BRP Lynx 69 Ranger 900 ACE - 2018
-
№АртикулНазвание
-
1506152762 Handle BarHandle Bar
-
2506152483 Grip. Includes 2 to 10Grip. Includes 2 to 10
-
4506152646 LeverLever
-
5506152647 Lever PinLever Pin
-
6506153045 Compression BlocCompression Bloc
-
7234061600 Flat Washer M6, StainlessFlat Washer M6, Stainless
-
8234161601 Lock Washer Helical M6Lock Washer Helical M6
-
9205566060 Socket Head ScrewSocket Head Screw
-
10732610072 Push NutPush Nut
-
11293850118 Rubber Strap Double 80/90Rubber Strap Double 80/90
-
12506152751 Steering SupportSteering Support
-
13250000285 Hex. Flanged Screw M8 x 40Hex. Flanged Screw M8 x 40
-
14506152807 Steering PadSteering Pad
-
15506152460 Moulding StrapMoulding Strap
-
17250000779 Torx Screw M6 X 18, Scotch GripTorx Screw M6 X 18, Scotch Grip
-
20506152508 Upper Half-HousingUpper Half-Housing
-
21506152217 Lower Half-HousingLower Half-Housing
-
22506152509 Upper Anti-Vibration GasketUpper Anti-Vibration Gasket
-
23506152518 Lower Vibration RingLower Vibration Ring
-
24506152297 Housing BushingHousing Bushing
-
25506152297 Housing BushingHousing Bushing
-
26207667086 Hex. Flanged Screw M6 x 70Hex. Flanged Screw M6 x 70
-
27207667086 Hex. Flanged Screw M6 x 70Hex. Flanged Screw M6 x 70
-
28233261416 Elastic Flanged Nut M6Elastic Flanged Nut M6
-
29233261416 Elastic Flanged Nut M6Elastic Flanged Nut M6
-
30506152163 PlatePlate
-
31207004044 Hex. Screw M10 X 40Hex. Screw M10 X 40
-
32232500416 Elastic Stop Nut M10. Includes 32 to 37Elastic Stop Nut M10. Includes 32 to 37
-
33506152498 Tie-RodTie-Rod
-
34506152081 LH Thread Ball JointLH Thread Ball Joint
-
35250100016 LH Hex. Jam Nut M10LH Hex. Jam Nut M10
-
36506152684 RH Thread Ball JointRH Thread Ball Joint
-
37732610010 RH Hex. Jam Nut M10RH Hex. Jam Nut M10
-
38506152582 WasherWasher
-
39233201464 Hex. Elast. Flanged Nut M10Hex. Elast. Flanged Nut M10
-
40506152404 CushionCushion
-
41506152943 RH SupportRH Support
-
42506152942 LH SupportLH Support
