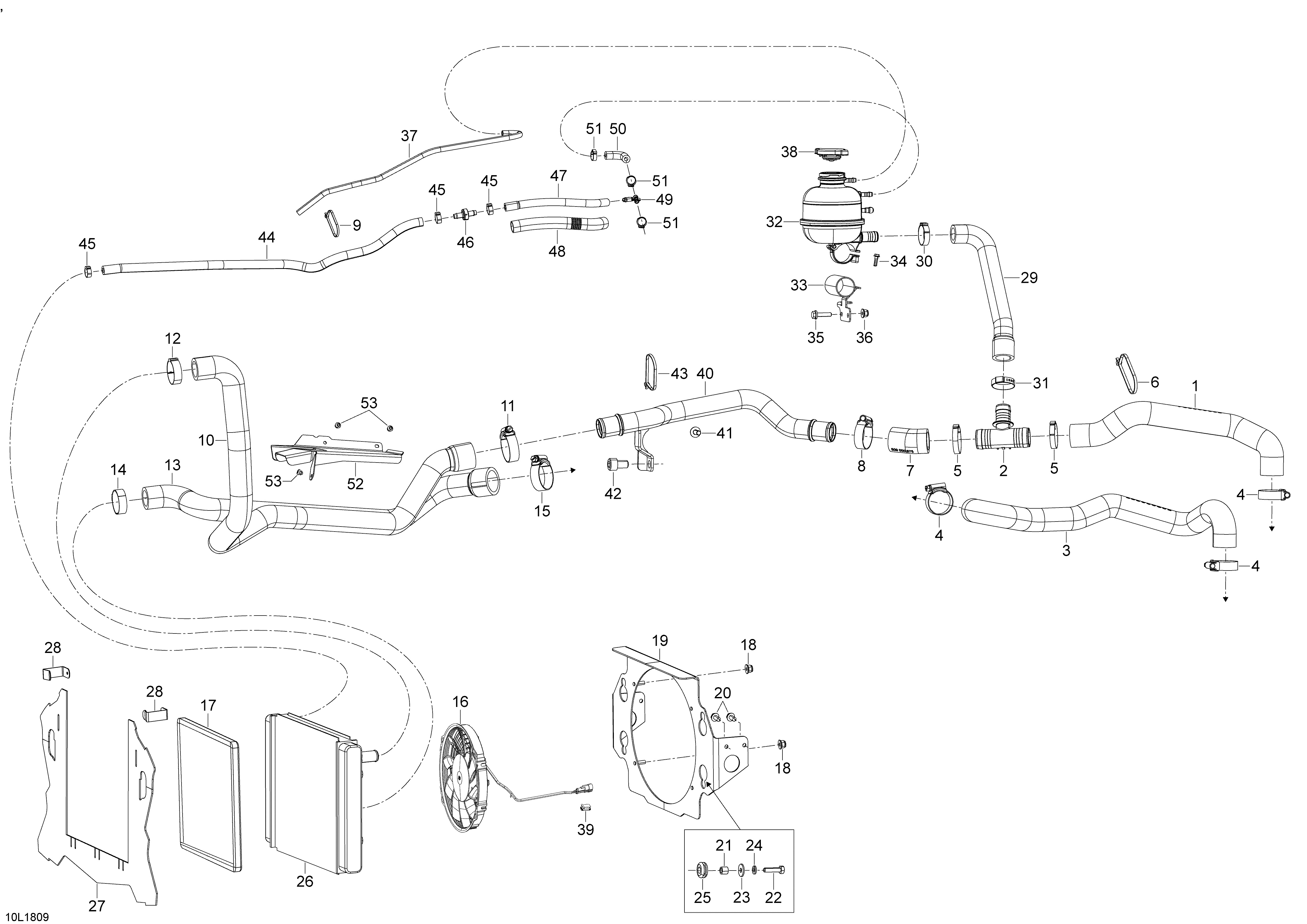

01- Cooling 1200 4-TEC для BRP Lynx Commander 1200 4-TEC - 2018
-
№АртикулНазвание
-
1509000894 Formed HoseFormed Hose
-
2509000372 T-FittingT-Fitting
-
3509000895 Formed HoseFormed Hose
-
4509000443 Aba Gear ClampAba Gear Clamp
-
5509000181 Oetiker Gear ClampOetiker Gear Clamp
-
6293750008 Tie-Rap 350 mmTie-Rap 350 mm
-
7509001067 Engine Inlet HoseEngine Inlet Hose
-
8509000443 Aba Gear ClampAba Gear Clamp
-
9414115200 Tie-Rap 180 mmTie-Rap 180 mm
-
10509000780 Hose, Front Radiator ( Air Engine)Hose, Front Radiator ( Air Engine)
-
11509000443 Aba Gear ClampAba Gear Clamp
-
12293650165 Oetiker Gear ClampOetiker Gear Clamp
-
13509000781 Hose, Front Radiator (Engine)Hose, Front Radiator (Engine)
-
14293650165 Oetiker Gear ClampOetiker Gear Clamp
-
15509000443 Aba Gear ClampAba Gear Clamp
-
16509000838 Cooling FanCooling Fan
-
17509000718 InsulationInsulation
-
18233261414 Hex. Flanged Elastic Nut M6Hex. Flanged Elastic Nut M6
-
60250300027 Clinch Stud M6 X 20. Not ShownClinch Stud M6 X 20. Not Shown
-
19509000791 Radiator support. Includes 510 to 510,001Radiator support. Includes 510 to 510,001
-
20207664044 Hex. Flanged Screw M6 X 40Hex. Flanged Screw M6 X 40
-
60233261414 Hex. Flanged Elastic Nut M6. Not ShownHex. Flanged Elastic Nut M6. Not Shown
-
21605453745 BushingBushing
-
22250000722 Torx Screw M6 X 20Torx Screw M6 X 20
-
23234062410 Flat Washer 6 mmFlat Washer 6 mm
-
25293720053 GrommetGrommet
-
26509000787 RadiatorRadiator
-
27509000700 Air DeflectorAir Deflector
-
28509000703 Deflector ClipDeflector Clip
-
29509000663 Filling HoseFilling Hose
-
60503192967 Tubing. Not ShownTubing. Not Shown
-
60293750002 Tie-Rap 142 mm. Not ShownTie-Rap 142 mm. Not Shown
-
30509000442 Gear ClampGear Clamp
-
31293650099 Crimp ClampCrimp Clamp
-
32509000421 Coolant TankCoolant Tank
-
33509000856 Reservoir supportReservoir support
-
34241151640 Hex. Flanged Screw K50 X 16Hex. Flanged Screw K50 X 16
-
35207662544 Hex. Flanged Screw M6 X 25Hex. Flanged Screw M6 X 25
-
36233261414 Hex. Flanged Elastic Nut M6Hex. Flanged Elastic Nut M6
-
37276000048 Hose 6 mmHose 6 mm
-
38509000180 Pressure CapPressure Cap
-
39710000992 ClipClip
-
40509000724 Water Pipe AluminumWater Pipe Aluminum
-
41250000717 Torx Head Screw M6 X 16Torx Head Screw M6 X 16
-
42205501644 Socket Screw M10 X 16Socket Screw M10 X 16
-
43414115200 Tie-Rap 180 mmTie-Rap 180 mm
-
60414115200 Tie-Rap 180 mm. Not ShownTie-Rap 180 mm. Not Shown
-
44509000407 Hose 8 mmHose 8 mm
-
45293650140 Oetiker ClampOetiker Clamp
-
46509000153 Check ValveCheck Valve
-
47509001069 Hose-formedHose-formed
-
48415080000 Tubing 16 mmTubing 16 mm
-
49293710140 Y-FittingY-Fitting
-
50509001070 HoseHose
-
60414115200 Tie-Rap 180 mm. Not ShownTie-Rap 180 mm. Not Shown
-
51293650046 Oetiker ClampOetiker Clamp
-
52509000751 Heat DeflectorHeat Deflector
-
53390909200 Avex RivetAvex Rivet
