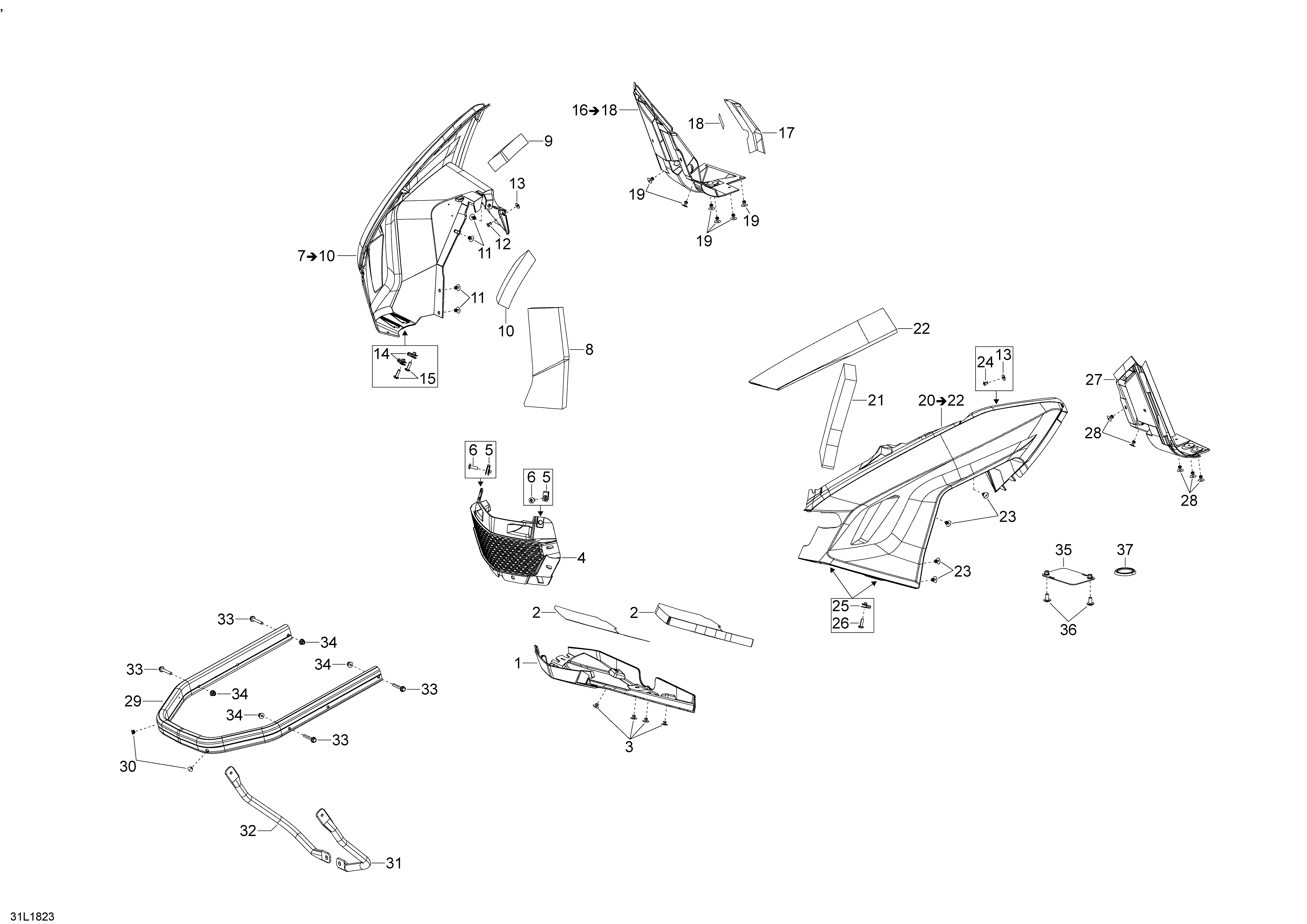

09- Bottom Pan Commander - 1200 4-TEC для BRP Lynx Commander 1200 4-TEC - 2018
-
№АртикулНазвание
-
1502007730 Bottom Pan Front, OrangeBottom Pan Front, Orange
-
2502007002 InsulatorInsulator
-
3293150103 Black Pop Rivet 3/16''Black Pop Rivet 3/16''
-
4502007731 Grill, OrangeGrill, Orange
-
5250000048 Panel Nut M6 X 1.0Panel Nut M6 X 1.0
-
6250000722 Torx Screw M6 X 20Torx Screw M6 X 20
-
7502007188 Black Bottom Pan Ass'y RH. Includes 400 to 400,002Black Bottom Pan Ass'y RH. Includes 400 to 400,002
-
8502007526 InsulatorInsulator
-
9502007009 InsulatorInsulator
-
11293150104 Pop Rivet 3/16''Pop Rivet 3/16''
-
12390402200 Pop Rivet 3/16''Pop Rivet 3/16''
-
13234052450 Flat WasherFlat Washer
-
14250000048 Panel Nut M6 X 1.0Panel Nut M6 X 1.0
-
15250000722 Torx Screw M6 X 20Torx Screw M6 X 20
-
16502007825 Bottom-pan Rear Ass'y, Rh. Includes 500 to 500,002Bottom-pan Rear Ass'y, Rh. Includes 500 to 500,002
-
17502007038 Aluminium FoilAluminium Foil
-
1844110 Aluminum foilAluminum foil
-
19293150104 Pop Rivet 3/16''Pop Rivet 3/16''
-
20502007665 Black LH Bottom Pan Ass?y. Includes 600 to 600,002Black LH Bottom Pan Ass?y. Includes 600 to 600,002
-
21502007003 InsulatorInsulator
-
22502007185 InsulatorInsulator
-
23293150104 Pop Rivet 3/16''Pop Rivet 3/16''
-
24390402200 Pop Rivet 3/16''Pop Rivet 3/16''
-
25250000048 Panel Nut M6 X 1.0Panel Nut M6 X 1.0
-
26250000722 Torx Screw M6 X 20Torx Screw M6 X 20
-
27502007827 Bottom Pan Rear, LhBottom Pan Rear, Lh
-
28293150104 Pop Rivet 3/16''Pop Rivet 3/16''
-
29502007685 Black Anod. BumperBlack Anod. Bumper
-
30293730047 Black Dart 8 mmBlack Dart 8 mm
-
31502007014 LH Bumper SupportLH Bumper Support
-
32502007015 RH Bumper SupportRH Bumper Support
-
33207664044 Hex. Flanged Screw M6 X 40Hex. Flanged Screw M6 X 40
-
34233261414 Hex. Flanged Elastic Nut M6Hex. Flanged Elastic Nut M6
-
37518329102 Oil Plate CoverOil Plate Cover
