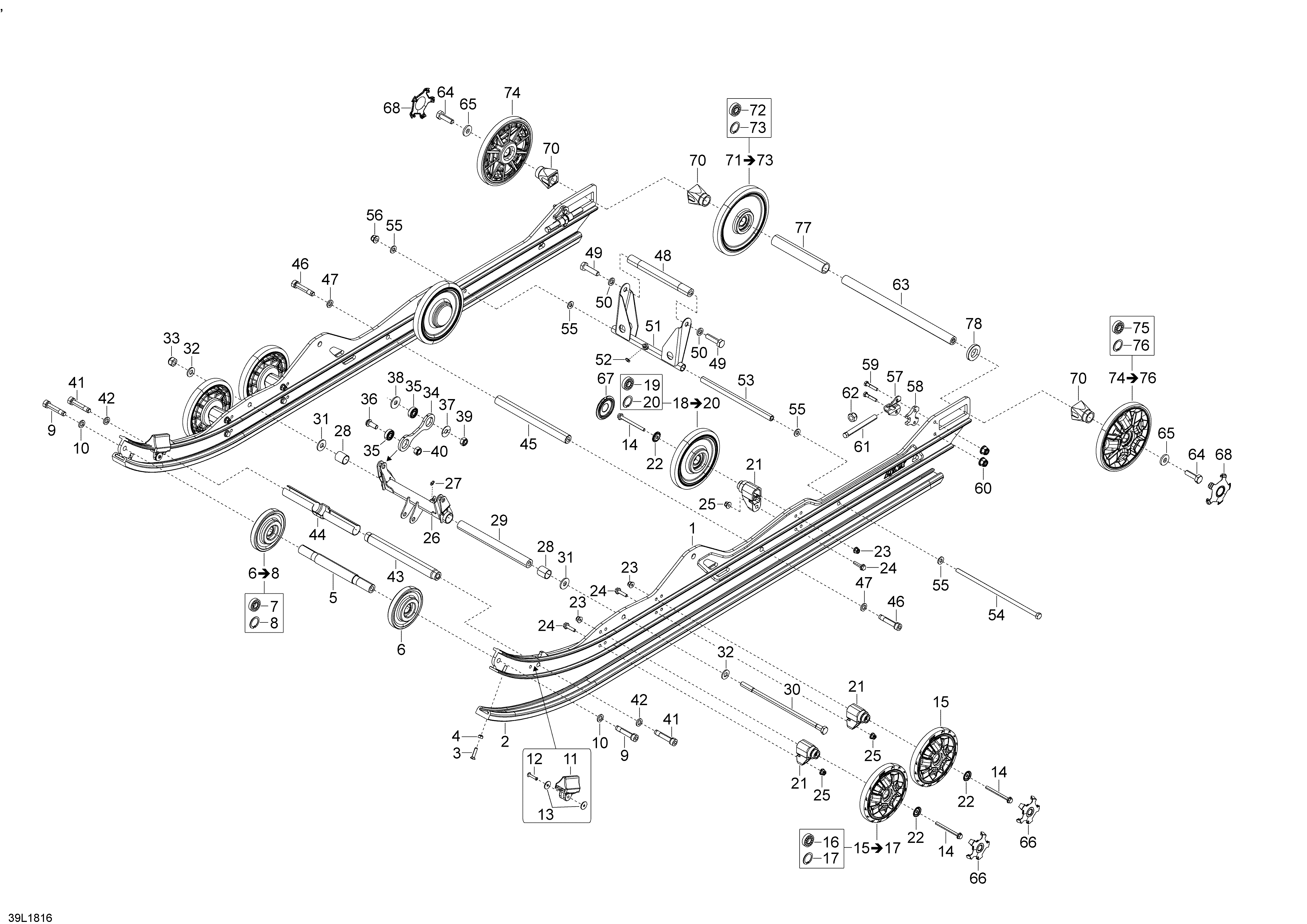

08- Rear Suspension XTRIM - 600 ACE для BRP Lynx XTRIM 600 ACE - 2018
-
№АртикулНазвание
-
1503194242 LH RunnerLH Runner
-
1503194243 RH RunnerRH Runner
-
2503193170 Slide ShoeSlide Shoe
-
3208562531 Phillips Screw M6 X 25Phillips Screw M6 X 25
-
4232561414 Elastic Stop Nut M6Elastic Stop Nut M6
-
5503192842 Front Wheel ShaftFront Wheel Shaft
-
6503192611 Black Wheel Ass'y, 100 mm. Includes 6 To 8Black Wheel Ass'y, 100 mm. Includes 6 To 8
-
7503190396 Ball BearingBall Bearing
-
9205504544 Socket ScrewSocket Screw
-
10503192496 WasherWasher
-
11503192106 Rubber StopperRubber Stopper
-
12293150142 Pop Rivet 3/16''Pop Rivet 3/16''
-
13503191273 WasherWasher
-
14207667056 Hex. Flange Screw M6 X 70Hex. Flange Screw M6 X 70
-
15503193734 Wheel-141mm. Includes 15 To 17Wheel-141mm. Includes 15 To 17
-
16503190396 Ball BearingBall Bearing
-
18503191316 Black - Wheel Ass'y 141 mm. Includes 18 To 20Black - Wheel Ass'y 141 mm. Includes 18 To 20
-
19503190396 Ball BearingBall Bearing
-
20415129371 Retaining RingRetaining Ring
-
21503193894 Casted SupportCasted Support
-
22503191820 Wheel Cup M6Wheel Cup M6
-
23233261466 Hex. Flanged Elastic Nut M6Hex. Flanged Elastic Nut M6
-
24207662556 Hex. Flange Screw M6 X 25Hex. Flange Screw M6 X 25
-
25233261466 Hex. Flanged Elastic Nut M6Hex. Flanged Elastic Nut M6
-
26503194799 Front SwingFront Swing
-
27408200700 Grease FittingGrease Fitting
-
28503193822 BushingBushing
-
29503193893 Lower ShaftLower Shaft
-
30503193227 Bolt M10 X 251MMBolt M10 X 251MM
-
31503191926 WasherWasher
-
32250200138 WasherWasher
-
33233601466 Elastic Locking Nut M10Elastic Locking Nut M10
-
34605254159 Connecting RodConnecting Rod
-
35503194696 BearingBearing
-
36205402546 Socket Screw BN.HD.ISO.7380Socket Screw BN.HD.ISO.7380
-
3725004 Cup SpringCup Spring
-
38234002600 Flat Washer 10 mm, StainlessFlat Washer 10 mm, Stainless
-
39233401414 Lock Spring Nut M10Lock Spring Nut M10
-
40232500416 Elastic Stop Nut M10Elastic Stop Nut M10
-
41205505054 Socket ScrewSocket Screw
-
42503192496 WasherWasher
-
43503195015 Limiter Strap ShaftLimiter Strap Shaft
-
44503194867 Holder, Limiter StrapHolder, Limiter Strap
-
455343471 ShaftShaft
-
46205505054 Socket ScrewSocket Screw
-
47503192496 WasherWasher
-
48503193638 Shaft-lowerShaft-lower
-
49207204044 Hexagonal ScrewHexagonal Screw
-
50503192496 WasherWasher
-
51503194342 Rear SwingRear Swing
-
52408200700 Grease FittingGrease Fitting
-
53503189156 Pivot Arm AxlePivot Arm Axle
-
54503192440 Bolt M8 X 248mmBolt M8 X 248mm
-
55503192494 WasherWasher
-
56233281466 Elastic Flang Nut M8Elastic Flang Nut M8
-
57503192814 TensionerTensioner
-
58503193250 SpacerSpacer
-
59207063054 Hex. Cap Screw M6 X 30Hex. Cap Screw M6 X 30
-
60233261466 Hex. Flanged Elastic Nut M6Hex. Flanged Elastic Nut M6
-
61230100054 Hex Screw M10 x 100Hex Screw M10 x 100
-
62233601466 Elastic Locking Nut M10Elastic Locking Nut M10
-
63503190429 Rear AxleRear Axle
-
64250000019 Hex. Screw With NylonHex. Screw With Nylon
-
65503190439 WasherWasher
-
66503193735 BlackWheel CapBlackWheel Cap
-
67503192771 Black - Wheel CapBlack - Wheel Cap
-
68503193810 Black Wheel CapBlack Wheel Cap
-
70503190428 Rear Wheel SpacerRear Wheel Spacer
-
71503192140 Black Wheel Ass'y, 165 mm. Includes 71 To 73Black Wheel Ass'y, 165 mm. Includes 71 To 73
-
72503190396 Ball BearingBall Bearing
-
73415129371 Retaining RingRetaining Ring
-
74503193809 Wheel 165mm. Includes 74 To 76Wheel 165mm. Includes 74 To 76
-
75503190396 Ball BearingBall Bearing
-
76415129371 Retaining RingRetaining Ring
-
77503190430 SpacerSpacer
-
78503190432 WasherWasher
