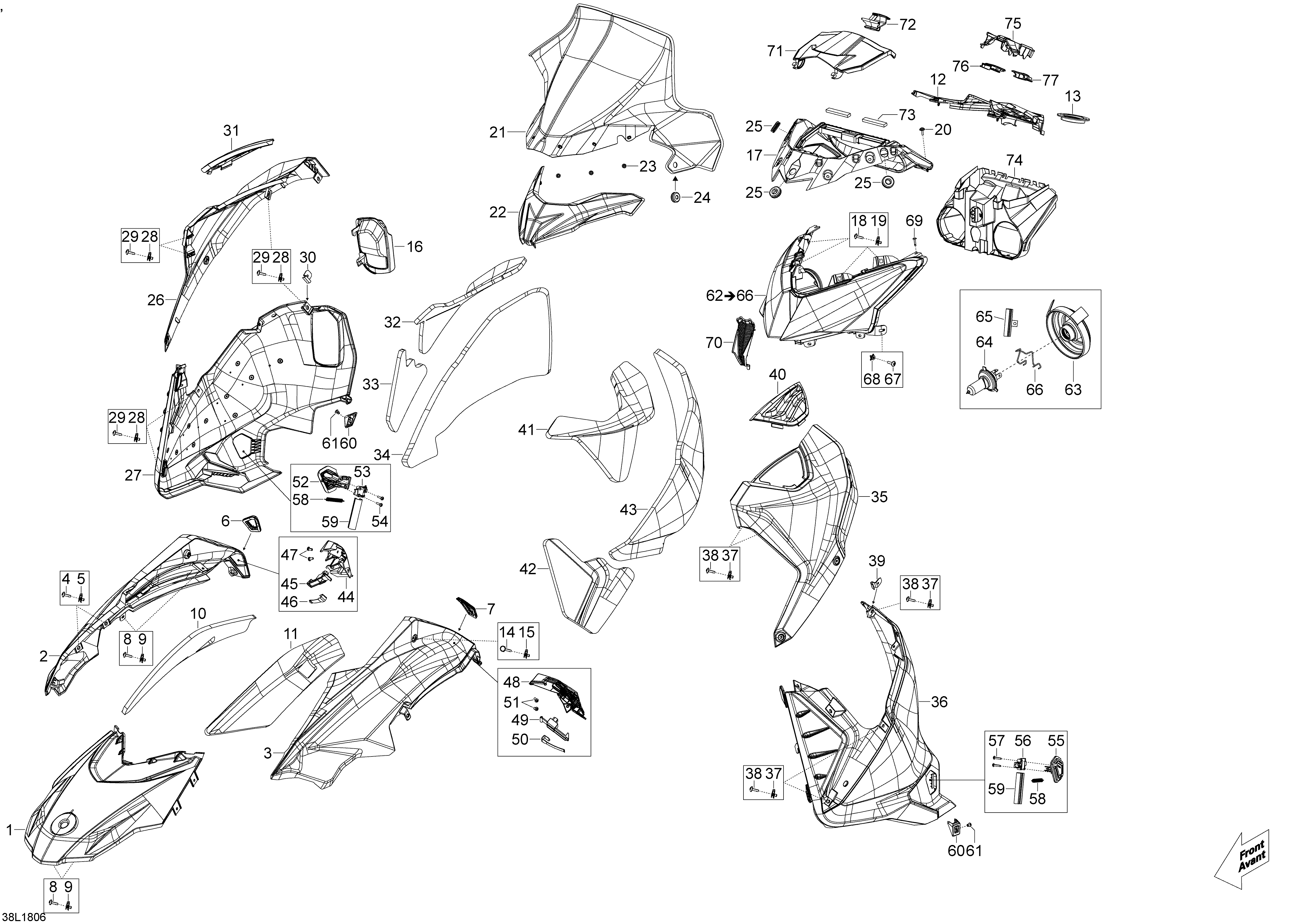

09- Hood XTRIM - 600 ACE для BRP Lynx XTRIM 600 ACE - 2018
-
№АртикулНазвание
-
1517305566 HoodHood
-
2517305418 RH HoodRH Hood
-
3517305419 LH HoodLH Hood
-
4250000528 Torx Screw M5 X 20Torx Screw M5 X 20
-
5250000958 Panel Nut M5 X 0.8Panel Nut M5 X 0.8
-
6517305344 RH Rubber ButtonRH Rubber Button
-
7517305345 LH Rubber ButtonLH Rubber Button
-
8250000528 Torx Screw M5 X 20Torx Screw M5 X 20
-
9250000958 Panel Nut M5 X 0.8Panel Nut M5 X 0.8
-
10517305481 FoamFoam
-
11517305482 FoamFoam
-
12517305205 Console RearConsole Rear
-
13517304518 Console NutConsole Nut
-
14517305531 KnobKnob
-
15250000958 Panel Nut M5 X 0.8Panel Nut M5 X 0.8
-
16517305061 Deep Black RH ConsoleDeep Black RH Console
-
17517305511 Deep Black Indicator SupportDeep Black Indicator Support
-
18250000528 Torx Screw M5 X 20Torx Screw M5 X 20
-
19250000958 Panel Nut M5 X 0.8Panel Nut M5 X 0.8
-
20250000587 Torx Screw M5 X 26Torx Screw M5 X 26
-
20.1860201070 Winshield 410. Includes 20,1 to 24,1Winshield 410. Includes 20,1 to 24,1
-
21860201070 Winshield 410Winshield 410
-
22517305307 SupportSupport
-
23732610072 Push NutPush Nut
-
24517302841 GrommetGrommet
-
24.1517305531 KnobKnob
-
25517303756 GrommetGrommet
-
26517305425 Panel RHPanel RH
-
27517305249 Panel RHPanel RH
-
28250000958 Panel Nut M5 X 0.8Panel Nut M5 X 0.8
-
29250000528 Torx Screw M5 X 20Torx Screw M5 X 20
-
30517305515 Guide PlateGuide Plate
-
31517305251 GrillGrill
-
32517306358 FoamFoam
-
33517306359 FoamFoam
-
34517306360 FoamFoam
-
35517305426 LH PanelLH Panel
-
36517305253 LH PanelLH Panel
-
37250000958 Panel Nut M5 X 0.8Panel Nut M5 X 0.8
-
38250000528 Torx Screw M5 X 20Torx Screw M5 X 20
-
39517305515 Guide PlateGuide Plate
-
40517305254 GrillGrill
-
41517305488 FoamFoam
-
42517305489 FoamFoam
-
43517305490 FoamFoam
-
44517305315 Lock Body Rh.Lock Body Rh.
-
45517306019 Lock ArmLock Arm
-
46517305317 Lock SpringLock Spring
-
47205951046 Socket Head Screw M5 X 10Socket Head Screw M5 X 10
-
48517305319 Lock Body Lh.Lock Body Lh.
-
49517306019 Lock ArmLock Arm
-
50517305317 Lock SpringLock Spring
-
51205951046 Socket Head Screw M5 X 10Socket Head Screw M5 X 10
-
52517305760 RH Side Panel Bottom LockRH Side Panel Bottom Lock
-
53517305761 RH Bottom Lock Fixing PartRH Bottom Lock Fixing Part
-
54250000451 Screw-pt.torx Flange K40 X 20Screw-pt.torx Flange K40 X 20
-
55517305758 LH Side Panel Bottom LockLH Side Panel Bottom Lock
-
56517305759 Lh Bottom Lock Fixing PartLh Bottom Lock Fixing Part
-
57250000451 Screw-pt.torx Flange K40 X 20Screw-pt.torx Flange K40 X 20
-
58517305535 Side Panel Bottom Lock SpringSide Panel Bottom Lock Spring
-
59517305452 Bottom Lock SleeveBottom Lock Sleeve
-
60517305323 Side Panel SupportSide Panel Support
-
61390909100 Avex RivetAvex Rivet
-
62517306180 Headlamp. Includes 62 to 66Headlamp. Includes 62 to 66
-
63219400070 CapCap
-
64515176274 Halogen Bulb, 60/55 W, 12 VHalogen Bulb, 60/55 W, 12 V
-
65219800282 Holder BracketHolder Bracket
-
66219800281 SpringSpring
-
67250000528 Torx Screw M5 X 20Torx Screw M5 X 20
-
68250100035 Jack Nut M5Jack Nut M5
-
69250000725 Screw M4 X 16Screw M4 X 16
-
70517305350 CapCap
-
71517304912 Upper Storage Access CoverUpper Storage Access Cover
-
72517304917 Cover LatchCover Latch
-
73517305157 Seal JointSeal Joint
-
74517305095 TrunkTrunk
-
75517304970 Console SupportConsole Support
-
76517305180 Deep Black Support Console CapDeep Black Support Console Cap
-
77517305148 Support Console CapSupport Console Cap
