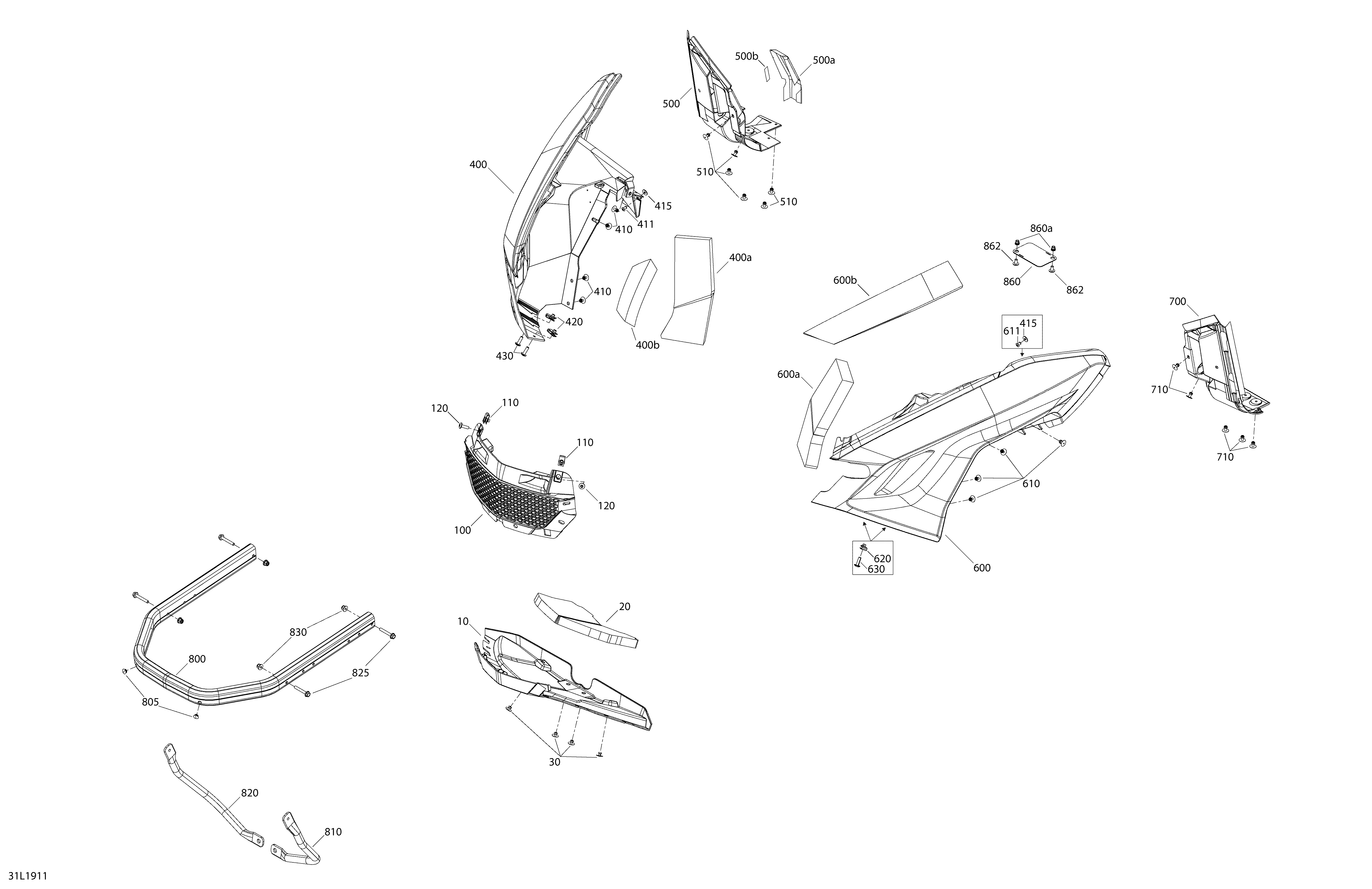

09- Bottom Pan Commander - 1200 4-TEC для BRP Lynx 004 - Commander 1200 4-TEC - 2019
-
№АртикулНазвание
-
10502008007 Orange, Front Bottom PanOrange, Front Bottom Pan
-
20502007002 InsulatorInsulator
-
30293150103 Pop Rivet 3/16''Pop Rivet 3/16''
-
100502007731 Grill, OrangeGrill, Orange
-
110250000957 Extruded Panel Nut M6Extruded Panel Nut M6
-
120250000722 Torx Screw M6 X 20Torx Screw M6 X 20
-
400502007993 Black, RH Bottom Pan Ass'y. Includes 400 to 400bBlack, RH Bottom Pan Ass'y. Includes 400 to 400b
-
400a502007526 InsulatorInsulator
-
400b502007009 InsulatorInsulator
-
410293150104 Pop Rivet 3/16''Pop Rivet 3/16''
-
411390402200 Pop Rivet 3/16''Pop Rivet 3/16''
-
415234052450 Flat WasherFlat Washer
-
420250000957 Extruded Panel Nut M6Extruded Panel Nut M6
-
430250000722 Torx Screw M6 X 20Torx Screw M6 X 20
-
500502008010 RH Rear Bottom Pan Ass'y. Includes 500 to 500bRH Rear Bottom Pan Ass'y. Includes 500 to 500b
-
500a502007038 Aluminium FoilAluminium Foil
-
500b44110 Aluminum foilAluminum foil
-
510293150104 Pop Rivet 3/16''Pop Rivet 3/16''
-
600502008000 Black, LH Bottom Pan Ass'y. Includes 600 to 600bBlack, LH Bottom Pan Ass'y. Includes 600 to 600b
-
600a502007003 InsulatorInsulator
-
600b502007185 InsulatorInsulator
-
610293150104 Pop Rivet 3/16''Pop Rivet 3/16''
-
611390402200 Pop Rivet 3/16''Pop Rivet 3/16''
-
620250000957 Extruded Panel Nut M6Extruded Panel Nut M6
-
630250000722 Torx Screw M6 X 20Torx Screw M6 X 20
-
700502008012 LH Rear Bottom PanLH Rear Bottom Pan
-
710293150104 Pop Rivet 3/16''Pop Rivet 3/16''
-
800502007685 Black Anod. BumperBlack Anod. Bumper
-
805293730047 Black Dart 8 mmBlack Dart 8 mm
-
810502007014 LH Bumper SupportLH Bumper Support
-
820502007015 RH Bumper SupportRH Bumper Support
-
825207664044 Hex. Flanged Screw M6 X 40Hex. Flanged Screw M6 X 40
-
830233261414 Hex. Flanged Elastic Nut M6 x 1.0Hex. Flanged Elastic Nut M6 x 1.0
-
860518329102 Oil Plate CoverOil Plate Cover
