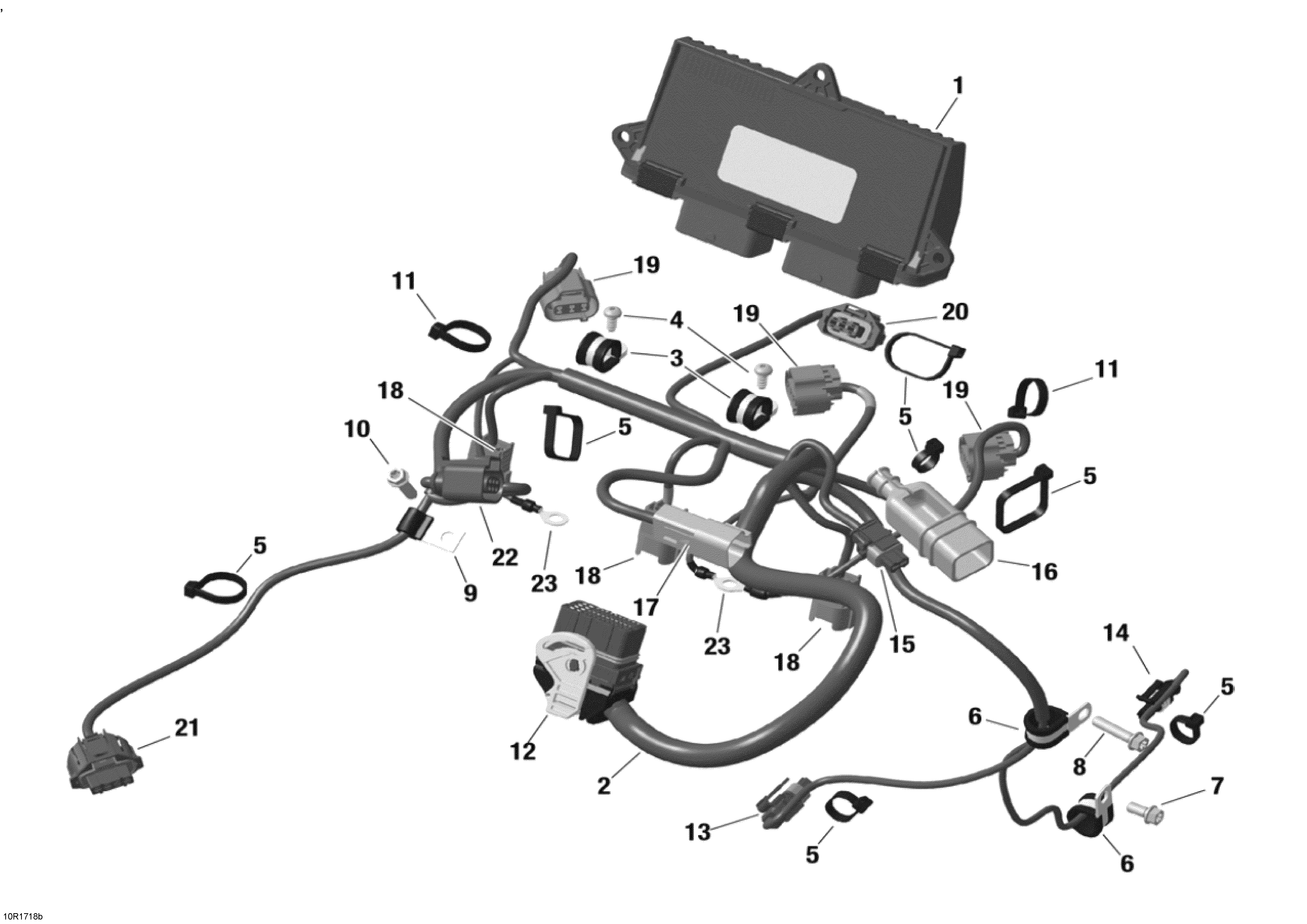

10- Engine Harness And Electronic Module - 1200 4-TEC для BRP Lynx 004 - Commander 1200 4-TEC - 2019
-
№АртикулНазвание
-
1420666920 Engine Control ModuleEngine Control Module
-
2420666691 Wiring Harness Ass'yWiring Harness Ass'y
-
3420851108 Clamp 14/M5Clamp 14/M5
-
3420251431 Clamp 20/M5Clamp 20/M5
-
4420640086 Torx Screw M5 x 12. Tightening Torque 5 NmTorx Screw M5 x 12. Tightening Torque 5 Nm
-
5420651397 Tie-RapTie-Rap
-
6420851492 Cable ClampCable Clamp
-
7420440147 Torx Screw M6 x 12. Tightening Torque 11 NmTorx Screw M6 x 12. Tightening Torque 11 Nm
-
8420440234 Torx Screw M6 x 25. Tightening Torque 9 NmTorx Screw M6 x 25. Tightening Torque 9 Nm
-
9420253150 Cable ClampCable Clamp
-
10420440234 Torx Screw M6 x 25. Tightening Torque 11 NmTorx Screw M6 x 25. Tightening Torque 11 Nm
-
11420866714 Tie RapTie Rap
-
13278001005 Connector CTSConnector CTS
-
14278001012 Connector OPSConnector OPS
-
15278001005 Connector CPSConnector CPS
-
16420201070 ProtectorProtector
-
17710001539 Connector HICConnector HIC
-
21515176410 Connector MATPSConnector MATPS
-
22515177406 Connector ETCConnector ETC
-
23278000992 Ground With CapacitorGround With Capacitor
