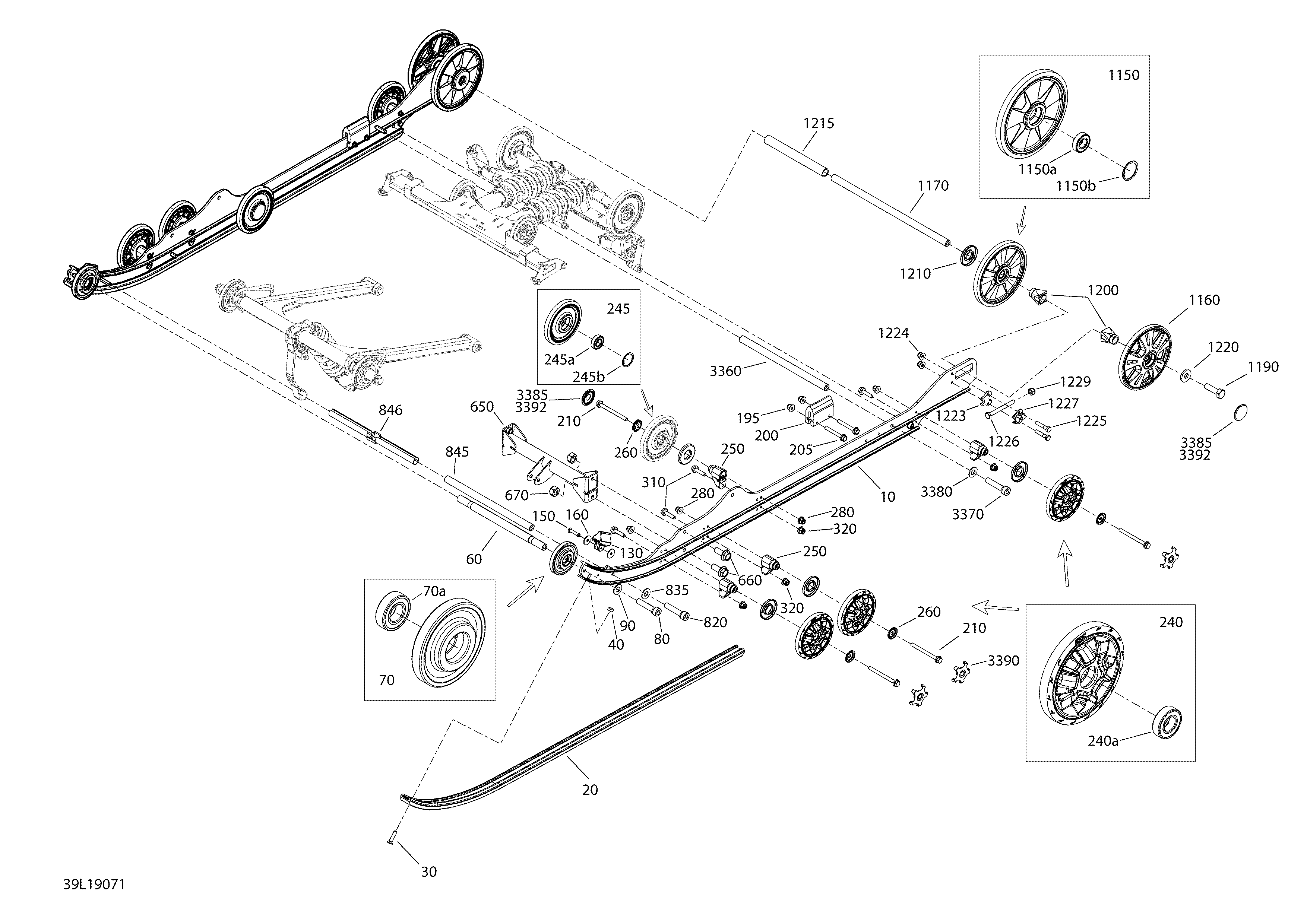

08- Rear Suspension Shocks 69 Ranger - Lower section для BRP Lynx 001 - 69 Ranger 800R E-TEC - 2019
-
№АртикулНазвание
-
10503194824 RunnerRunner
-
20503194307 Black, Slider ShoeBlack, Slider Shoe
-
30208562531 Phillips Screw M6 X 25Phillips Screw M6 X 25
-
40232561414 Elastic Stop Nut M6Elastic Stop Nut M6
-
60503192889 Front Wheel ShaftFront Wheel Shaft
-
70503192611 Black Wheel Ass'y, 100 mm. Includes 70 to 70aBlack Wheel Ass'y, 100 mm. Includes 70 to 70a
-
70a503190396 Ball BearingBall Bearing
-
80205504544 Socket ScrewSocket Screw
-
90234001410 Flat Washer 10 mmFlat Washer 10 mm
-
130503193504 Rubber StopperRubber Stopper
-
150293150224 Rivet Pop 3/16Rivet Pop 3/16
-
160503191273 WasherWasher
-
195233261466 Hex. Flanged Elastic Nut M6Hex. Flanged Elastic Nut M6
-
200570023100 Rubber StopperRubber Stopper
-
205207664554 Hexagonal Flanged ScrewHexagonal Flanged Screw
-
210207667056 Hex. Flange Screw M6 X 70Hex. Flange Screw M6 X 70
-
240503193734 Wheel-141mm. Includes 240 to 240aWheel-141mm. Includes 240 to 240a
-
240a503190396 Ball BearingBall Bearing
-
245503191316 Black - Wheel Ass'y 141 mm. Includes 245 to 245bBlack - Wheel Ass'y 141 mm. Includes 245 to 245b
-
245a503190396 Ball BearingBall Bearing
-
245b415129371 Retaining RingRetaining Ring
-
250503193894 Casted SupportCasted Support
-
260503191820 Wheel Cup M6Wheel Cup M6
-
280233261466 Hex. Flanged Elastic Nut M6Hex. Flanged Elastic Nut M6
-
310207662556 Hex. Flange Screw M6 X 25Hex. Flange Screw M6 X 25
-
320233261466 Hex. Flanged Elastic Nut M6Hex. Flanged Elastic Nut M6
-
650503193182 Lower Support, Center ShockLower Support, Center Shock
-
660250001026 Screw-Hex.Flange DIN.6921Screw-Hex.Flange DIN.6921
-
670232500416 Elastic Stop Nut M10Elastic Stop Nut M10
-
820205504544 Socket ScrewSocket Screw
-
835234001410 Flat Washer 10 mmFlat Washer 10 mm
-
845503192927 Shaft Passivated. Not ShownShaft Passivated. Not Shown
-
846503195144 Limiter Strap Holder. Not ShownLimiter Strap Holder. Not Shown
-
1150503193098 Black, Wheel Ass'y 200 mm. Includes 1150 to 1150bBlack, Wheel Ass'y 200 mm. Includes 1150 to 1150b
-
1150a503190396 Ball BearingBall Bearing
-
1150b415129371 Retaining RingRetaining Ring
-
1160503191741 Wheel 200, BlackWheel 200, Black
-
1170503193352 Rear ShaftRear Shaft
-
1190250000817 Hex Screw With Nilon Patch, M10 X 35Hex Screw With Nilon Patch, M10 X 35
-
1200503190428 Rear Wheel SpacerRear Wheel Spacer
-
1210503190682 Labyrinth SealLabyrinth Seal
-
1215503193631 SpacerSpacer
-
1220503190439 WasherWasher
-
1223503193250 SpacerSpacer
-
1224233261466 Hex. Flanged Elastic Nut M6Hex. Flanged Elastic Nut M6
-
1225207063054 Hex. Cap Screw M6 X 30Hex. Cap Screw M6 X 30
-
1226230100044 Hex. Screw M10 X 100Hex. Screw M10 X 100
-
1227503192583 TensionerTensioner
-
1229233601466 Elastic Locking Nut M10Elastic Locking Nut M10
-
2217232500416 Elastic Stop Nut M10. Not shownElastic Stop Nut M10. Not shown
-
3360503192927 Shaft PassivatedShaft Passivated
-
3370205504544 Socket ScrewSocket Screw
-
3380234001410 Flat Washer 10 mmFlat Washer 10 mm
-
3385503192771 Black, Wheel CapBlack, Wheel Cap
-
3390503195345 Black, Wheel CapBlack, Wheel Cap
-
3392503192771 Black, Wheel CapBlack, Wheel Cap
