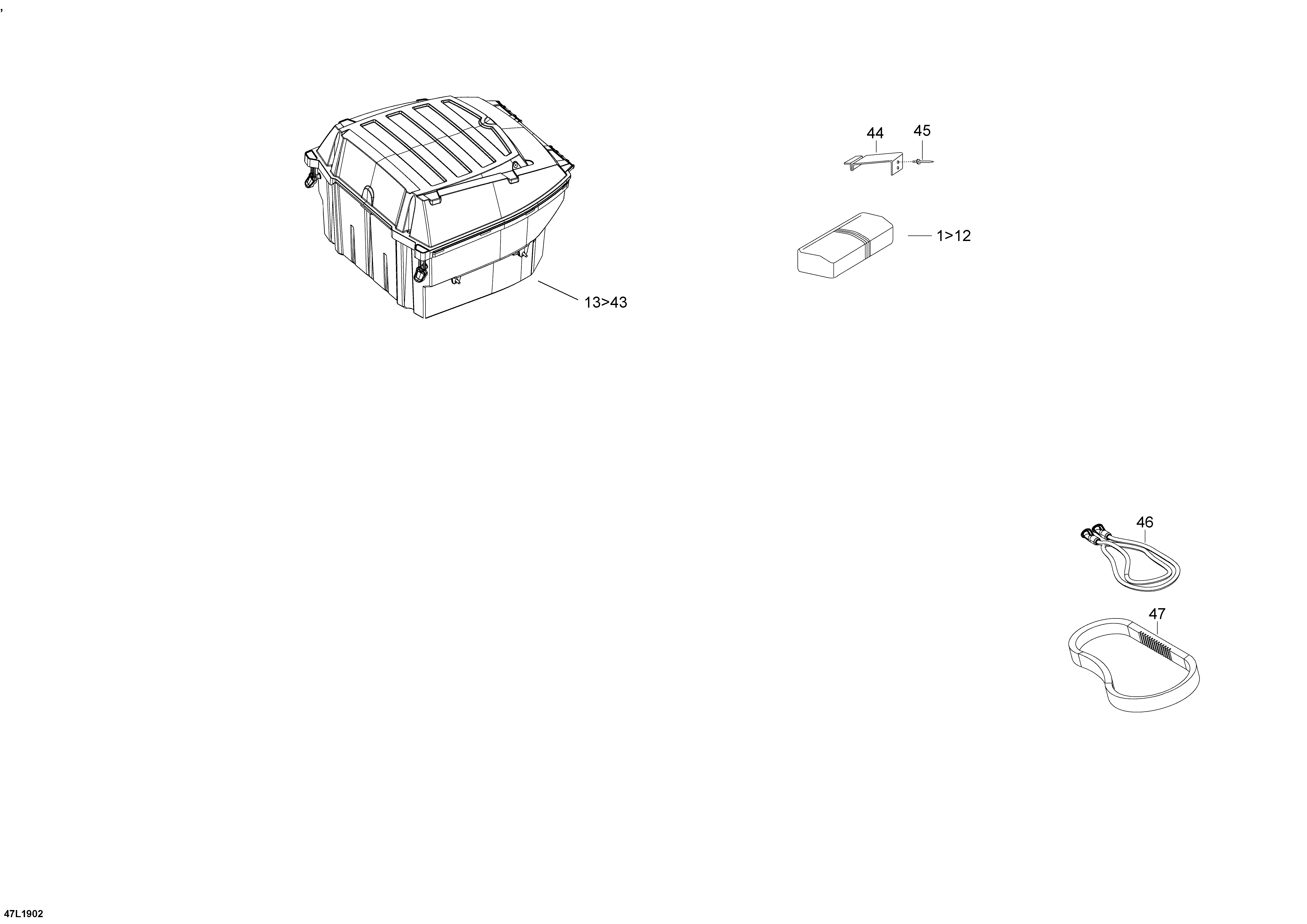

09- Options - 69 Ranger - 800R E-TEC для BRP Lynx 001 - 69 Ranger 800R E-TEC - 2019
-
№АртикулНазвание
-
1520900037 Tools Box Ass'y. Includes 1 to 12Tools Box Ass'y. Includes 1 to 12
-
2710000742 Little Fuse, 5 AmperesLittle Fuse, 5 Amperes
-
3710000743 Little Fuse, 7.5 AmperesLittle Fuse, 7.5 Amperes
-
4710000744 Little Fuse, 10 AmperesLittle Fuse, 10 Amperes
-
5710000745 Little Fuse, 15 AmperesLittle Fuse, 15 Amperes
-
6710000746 Little Fuse, 20 AmperesLittle Fuse, 20 Amperes
-
7710000747 Little Fuse, 30 AmperesLittle Fuse, 30 Amperes
-
8515176274 Halogen Bulb, 60/55 W, 12 V ( H4 )Halogen Bulb, 60/55 W, 12 V ( H4 )
-
9520900035 MultitoolMultitool
-
10572036310 Box CoverBox Cover
-
11520900003 PadPad
-
12415129484 Spark Plug, NGK PFR7ABSpark Plug, NGK PFR7AB
-
13619560023 Cargo Box Ass'y. Includes 13 to 43Cargo Box Ass'y. Includes 13 to 43
-
15250200025 Washer M5Washer M5
-
17293750070 Seat Retainer CableSeat Retainer Cable
-
1936036 RivetRivet
-
21511000702 PinPin
-
23510005273 FoamFoam
-
25207562034 Hex. Flanged Screw M6 X 20, Scotch GripHex. Flanged Screw M6 X 20, Scotch Grip
-
27234062410 Flat Washer 6 mmFlat Washer 6 mm
-
29516008738 BRP Logo, 48mmBRP Logo, 48mm
-
31517304572 Latch-PanelLatch-Panel
-
33605449087 Counter RollerCounter Roller
-
37232541484 Elastic Stop Nut M4Elastic Stop Nut M4
-
3920037 WasherWasher
-
4136037 Black RivetBlack Rivet
-
42293250219 SealSeal
-
43510005844 Rubber ShimmRubber Shimm
-
445346728 Tool Kit RackTool Kit Rack
-
4536108 RivetRivet
-
4621156 RopeRope
-
47417300531 Drive BeltDrive Belt
