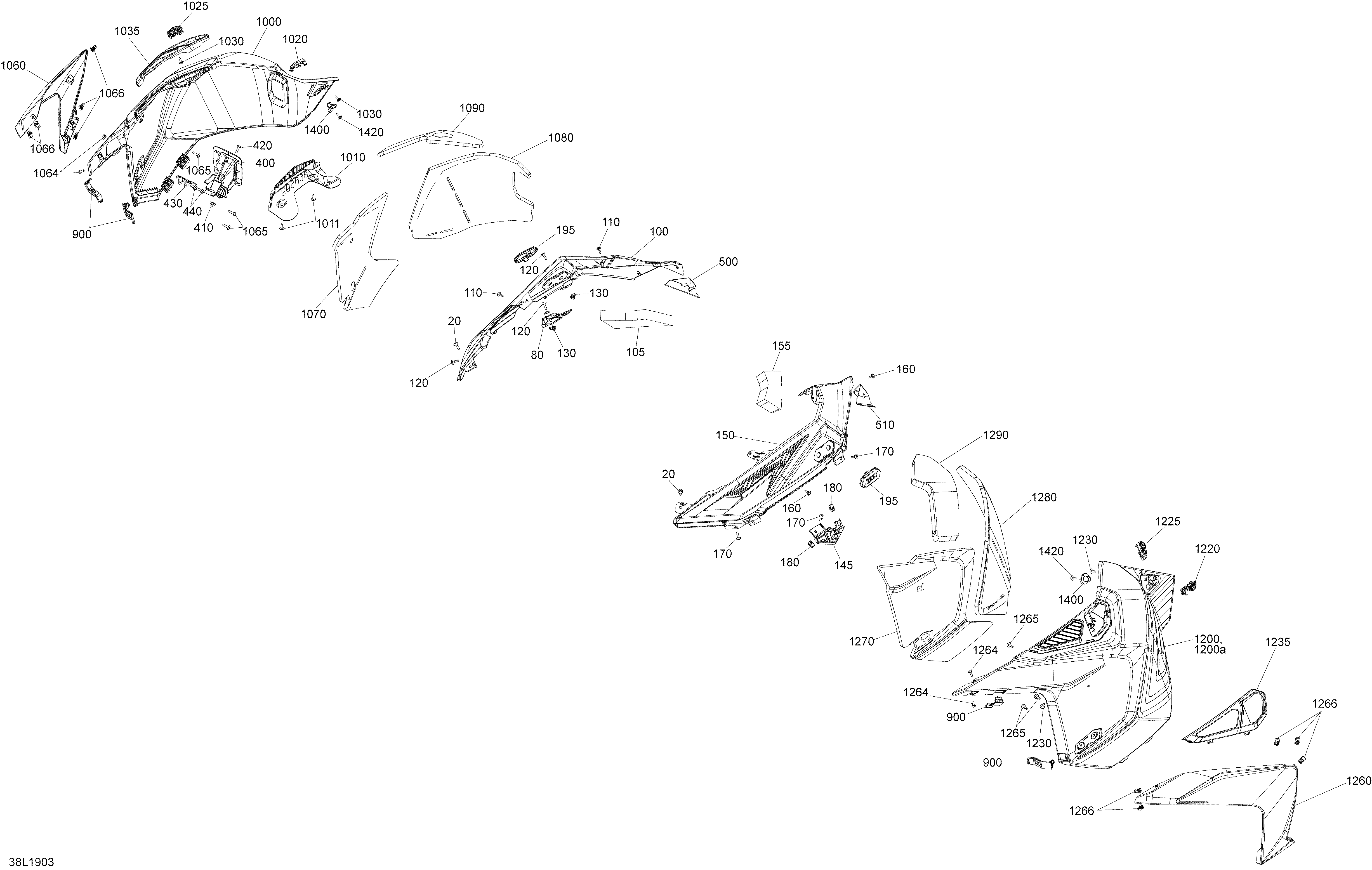

09- Hood - Side Section для BRP Lynx 002 - RAVE 850 E-TEC - 2019
-
№АртикулНазвание
-
20250000528 Torx Screw M5 X 20Torx Screw M5 X 20
-
80517306450 RH Knob PartRH Knob Part
-
100517306067 RH Upper Side PanelRH Upper Side Panel
-
105517306695 RH Foam Upper Side PanelRH Foam Upper Side Panel
-
110250000725 Screw M4 X 16Screw M4 X 16
-
120250000528 Torx Screw M5 X 20Torx Screw M5 X 20
-
130250000958 Panel Nut M5 X 0.8Panel Nut M5 X 0.8
-
145517306451 LH Knob PartLH Knob Part
-
150517306069 LH Upper Side PanelLH Upper Side Panel
-
155517306696 LH Foam Upper Side PanelLH Foam Upper Side Panel
-
160250000725 Screw M4 X 16Screw M4 X 16
-
170250000528 Torx Screw M5 X 20Torx Screw M5 X 20
-
180250000958 Panel Nut M5 X 0.8Panel Nut M5 X 0.8
-
195517306437 Upper Side Panel CapUpper Side Panel Cap
-
400517306759 RH ConsoleRH Console
-
410250000958 Panel Nut M5 X 0.8Panel Nut M5 X 0.8
-
420250000528 Torx Screw M5 X 20Torx Screw M5 X 20
-
430517306315 Rope GuideRope Guide
-
440250000936 Hex. Flanged Screw M6 X 16Hex. Flanged Screw M6 X 16
-
500517306688 RH Cover PlateRH Cover Plate
-
510517306689 LH Cover PlateLH Cover Plate
-
900517306811 Rubber LatchRubber Latch
-
1000517306466 RH Side Panel. Includes 1000 to 1000aRH Side Panel. Includes 1000 to 1000a
-
1000a517306073 RH Side PanelRH Side Panel
-
1010517306991 GrillGrill
-
1011250000725 Screw M4 X 16Screw M4 X 16
-
1020517306320 RH Latch RearRH Latch Rear
-
1025517305773 RH Rear LatchRH Rear Latch
-
1030250000805 Plastite Screw M4 X 10Plastite Screw M4 X 10
-
1035517306609 Red, RH TrimRed, RH Trim
-
1060517306081 RH Air DeflectorRH Air Deflector
-
1064250000742 Torx Screw M5 X 14Torx Screw M5 X 14
-
1065250000528 Torx Screw M5 X 20Torx Screw M5 X 20
-
1066250000958 Panel Nut M5 X 0.8Panel Nut M5 X 0.8
-
1070517306246 RH Foam Side Panel CentralRH Foam Side Panel Central
-
1080517306250 RH Foam Side Panel RearRH Foam Side Panel Rear
-
1090517306251 RH Foam Side Panel UpperRH Foam Side Panel Upper
-
1200517306467 LH Side Panel. Includes 1200 to 1200aLH Side Panel. Includes 1200 to 1200a
-
1200a517306075 LH Side PanelLH Side Panel
-
1220517306325 LH Latch RearLH Latch Rear
-
1225517305774 LH Rear LatchLH Rear Latch
-
1230250000805 Plastite Screw M4 X 10Plastite Screw M4 X 10
-
1235517306618 Red, LH TrimRed, LH Trim
-
1260517306082 LH Air DeflectorLH Air Deflector
-
1264250000742 Torx Screw M5 X 14Torx Screw M5 X 14
-
1265250000528 Torx Screw M5 X 20Torx Screw M5 X 20
-
1266250000958 Panel Nut M5 X 0.8Panel Nut M5 X 0.8
-
1270517306247 LH Foam Side Panel CentralLH Foam Side Panel Central
-
1280517306252 LH Foam Side Panel RearLH Foam Side Panel Rear
-
1290517306253 LH Foam Side Panel UpperLH Foam Side Panel Upper
-
1295517306836 LH Upper Side Panel Foam. Not ShownLH Upper Side Panel Foam. Not Shown
-
1400517305985 Rear StudRear Stud
-
1420250000725 Screw M4 X 16Screw M4 X 16
