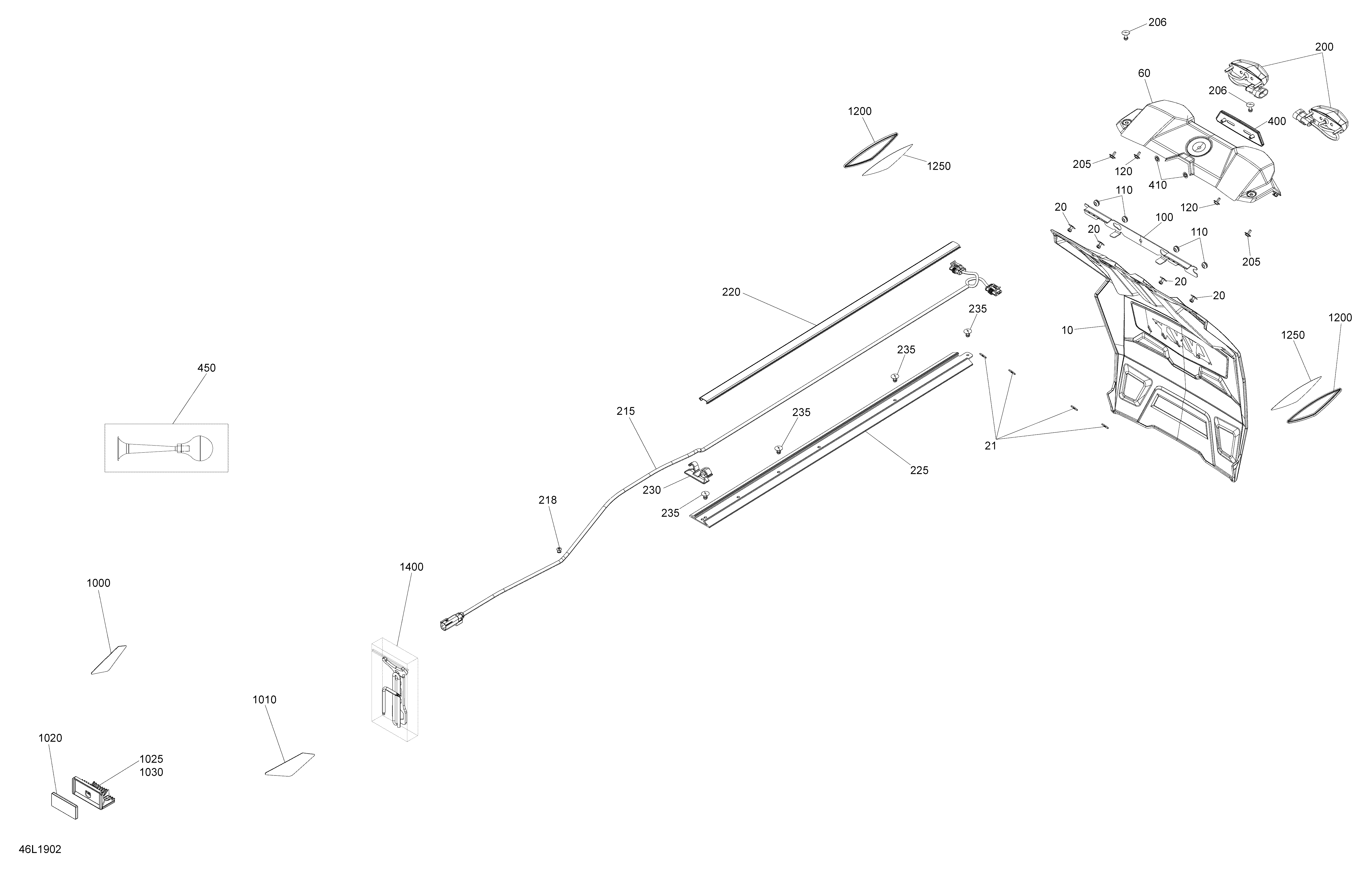

09- Utilities RAVE для BRP Lynx 002 - RAVE 850 E-TEC - 2019
-
№АртикулНазвание
-
10520001645 Snow GuardSnow Guard
-
20293150104 Pop Rivet 3/16''Pop Rivet 3/16''
-
21517124300 WasherWasher
-
60520001701 Light FairingLight Fairing
-
100520001773 Rear Light Support PlateRear Light Support Plate
-
110293720101 GrommetGrommet
-
120250000805 Plastite Screw M4 X 10Plastite Screw M4 X 10
-
200520001302 Rear LightRear Light
-
206293150100 Pop Rivet 3/16''Pop Rivet 3/16''
-
215515178358 Wiring HarnessWiring Harness
-
218390402200 Pop Rivet 3/16''Pop Rivet 3/16''
-
220520001719 Radiator TrimRadiator Trim
-
225520001703 Wire ProtectorWire Protector
-
230520001722 CapCap
-
235293150104 Pop Rivet 3/16''Pop Rivet 3/16''
-
400705012208 Red, Rear ReflectorRed, Rear Reflector
-
410732610072 Push NutPush Nut
-
450549011291 HornHorn
-
1000520001493 RH Front ReflectorRH Front Reflector
-
1010520001494 LH Front ReflectorLH Front Reflector
-
102021118 Reflector (Bright)Reflector (Bright)
-
1025520001776 Reflector SupportReflector Support
-
1030390403000 Pop Rivet 5/32Pop Rivet 5/32
-
1200705002423 Lateral Reflector, AmberLateral Reflector, Amber
-
1250520001766 Support TapeSupport Tape
-
1400520001814 Tools KitTools Kit
