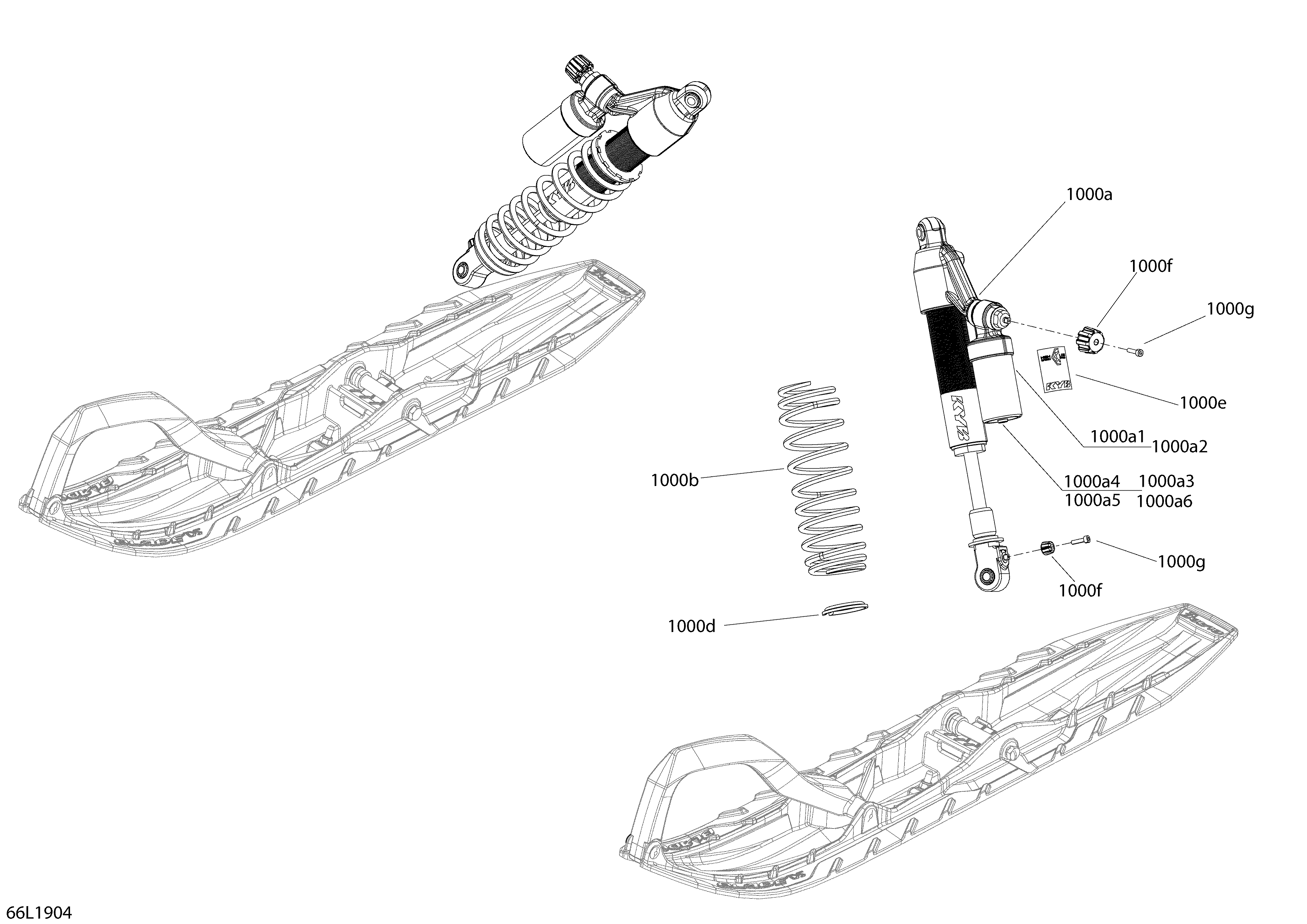

07- Front Shocks - RE для BRP Lynx 002 - XTerrain 850 E-TEC - 2019
-
№АртикулНазвание
-
1000a505074417 LH Front Shock Kashima. Includes 1000a to 1000a6LH Front Shock Kashima. Includes 1000a to 1000a6
-
1000a1415093807 O-RingO-Ring
-
1000a2415093806 Piston RingPiston Ring
-
1000a3505070398 Air ValveAir Valve
-
1000a4505070399 ScrewScrew
-
1000a5505070400 O-RingO-Ring
-
1000a6415093804 O-RingO-Ring
-
1000b505074548 Black, Spring 280 MM 22 N/MMBlack, Spring 280 MM 22 N/MM
-
1000c503194270 Spring StopperSpring Stopper
-
1000d505073150 Washer. not shownWasher. not shown
-
1000e516008320 Shock Adjustment DecalShock Adjustment Decal
-
1000f505072753 Adjustment KnobAdjustment Knob
-
1000g205031060 Socket Screw M3 X 0.5 x 10Socket Screw M3 X 0.5 x 10
-
1000a505074418 RH Front Shock Kashima. Includes 1000a to 1000a6RH Front Shock Kashima. Includes 1000a to 1000a6
