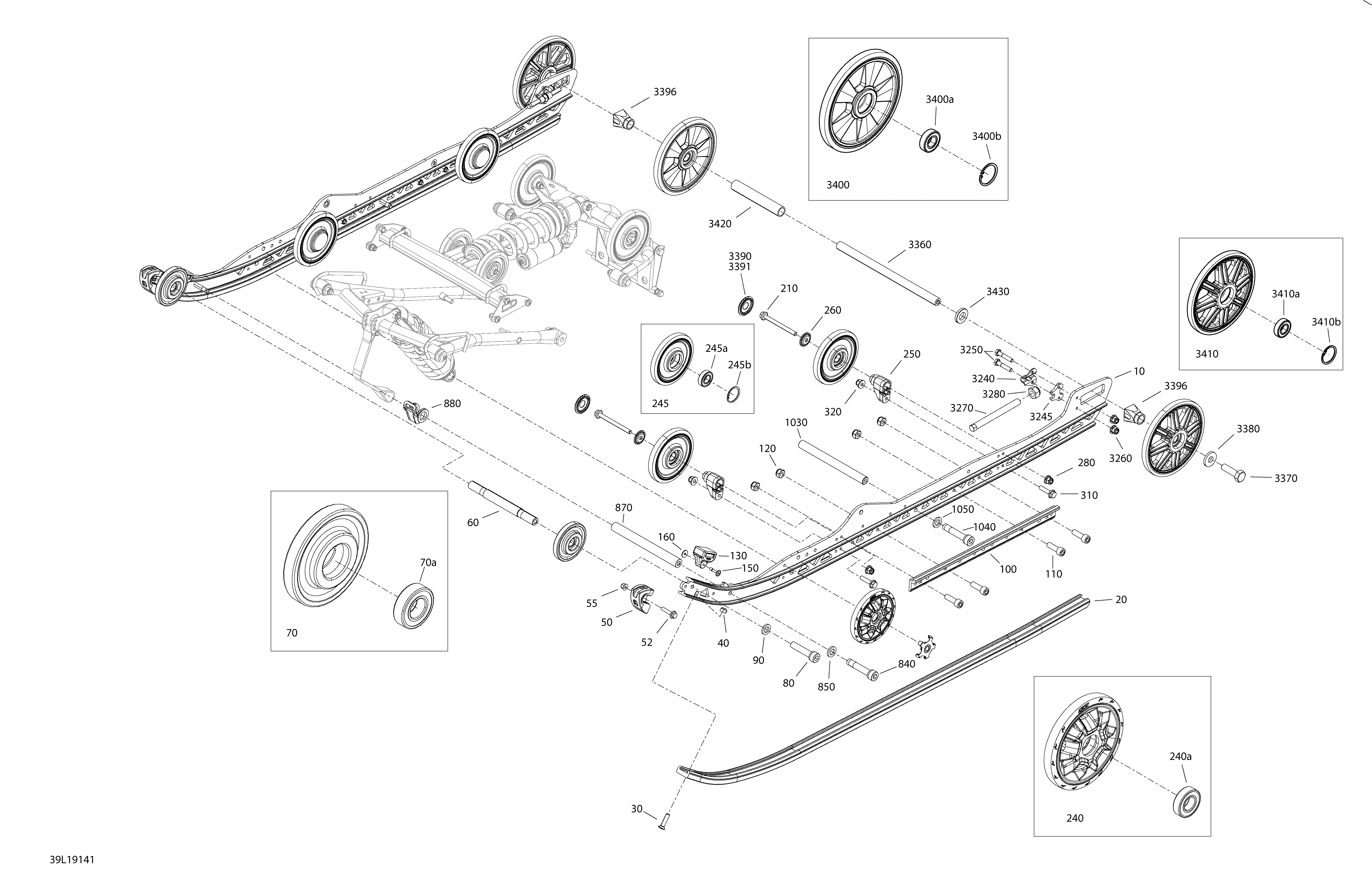

08- Rear Suspension XTerrain - 850 E-TEC - Lower Part для BRP Lynx 002 - XTerrain 850 E-TEC - 2019
-
№АртикулНазвание
-
10503195046 Black, Runner. Package 3700. Includes 10 to 10aBlack, Runner. Package 3700. Includes 10 to 10a
-
10503195172 Runner. Package 3700Runner. Package 3700
-
10503195047 Black, Runner. Package 3900. Includes 10 to 10aBlack, Runner. Package 3900. Includes 10 to 10a
-
10503195173 Runner. Package 3900Runner. Package 3900
-
20503191198 Black Slider Shoe 154''. Package 3700Black Slider Shoe 154''. Package 3700
-
20503191501 Slider Shoe 163''. Package 3900Slider Shoe 163''. Package 3900
-
30208562531 Phillips Screw M6 X 25Phillips Screw M6 X 25
-
40232561414 Elastic Stop Nut M6Elastic Stop Nut M6
-
50503194249 ProtectorProtector
-
52207652544 Hex. Flanged Screw M5 X 25Hex. Flanged Screw M5 X 25
-
55233251434 Flanged Elastic Nut M5Flanged Elastic Nut M5
-
60503192842 Front Wheel ShaftFront Wheel Shaft
-
70503192611 Black Wheel Ass'y, 100 mm. Includes 70 to 70aBlack Wheel Ass'y, 100 mm. Includes 70 to 70a
-
70a503190396 Ball BearingBall Bearing
-
80205505054 Socket ScrewSocket Screw
-
90503192496 WasherWasher
-
100503195397 Rail ReinforcementRail Reinforcement
-
110205082554 Socket Screw M8 X 25Socket Screw M8 X 25
-
120232581414 Hex. Elastic Stop Nut M8Hex. Elastic Stop Nut M8
-
130503193504 Rubber StopperRubber Stopper
-
150293150224 Rivet Pop 3/16Rivet Pop 3/16
-
160503191273 WasherWasher
-
210207667056 Hex. Flange Screw M6 X 70Hex. Flange Screw M6 X 70
-
240503193734 Wheel-141mm. Includes 240 to 240aWheel-141mm. Includes 240 to 240a
-
240a503190396 Ball BearingBall Bearing
-
245503191316 Black - Wheel Ass'y 141 mm. Includes 245 to 245bBlack - Wheel Ass'y 141 mm. Includes 245 to 245b
-
245a503190396 Ball BearingBall Bearing
-
245b415129371 Retaining RingRetaining Ring
-
250503193894 Casted SupportCasted Support
-
260503191820 Wheel Cup M6Wheel Cup M6
-
280233261466 Hex. Flanged Elastic Nut M6Hex. Flanged Elastic Nut M6
-
310207662556 Hex. Flange Screw M6 X 25Hex. Flange Screw M6 X 25
-
320233261466 Hex. Flanged Elastic Nut M6Hex. Flanged Elastic Nut M6
-
840205505054 Socket ScrewSocket Screw
-
850503192496 WasherWasher
-
870503195015 Limiter Strap ShaftLimiter Strap Shaft
-
880503194867 Holder, Limiter StrapHolder, Limiter Strap
-
10305343471 ShaftShaft
-
1040205505054 Socket ScrewSocket Screw
-
1050503192496 WasherWasher
-
3240503192583 TensionerTensioner
-
3245503193250 SpacerSpacer
-
3250207063054 Hex. Cap Screw M6 X 30Hex. Cap Screw M6 X 30
-
3260233261466 Hex. Flanged Elastic Nut M6Hex. Flanged Elastic Nut M6
-
3270230100054 Hex Screw M10 x 100Hex Screw M10 x 100
-
3280233601466 Elastic Locking Nut M10Elastic Locking Nut M10
-
3360503190429 Rear AxleRear Axle
-
3370250000817 Hex Screw With Nilon Patch, M10 X 35Hex Screw With Nilon Patch, M10 X 35
-
3380503190439 WasherWasher
-
3390503195345 Black, Wheel CapBlack, Wheel Cap
-
3391503192771 Black, Wheel CapBlack, Wheel Cap
-
3396503190428 Rear Wheel SpacerRear Wheel Spacer
-
3400503193098 Black, Wheel Ass'y 200 mm. Includes 3400 to 3400bBlack, Wheel Ass'y 200 mm. Includes 3400 to 3400b
-
3400a503190396 Ball BearingBall Bearing
-
3400b415129371 Retaining RingRetaining Ring
-
3410503194880 Wheel 200. Includes 3410 to 3410bWheel 200. Includes 3410 to 3410b
-
3410a503190396 Ball BearingBall Bearing
-
3410b415129371 Retaining RingRetaining Ring
-
3420503190430 SpacerSpacer
-
3430503190432 WasherWasher
