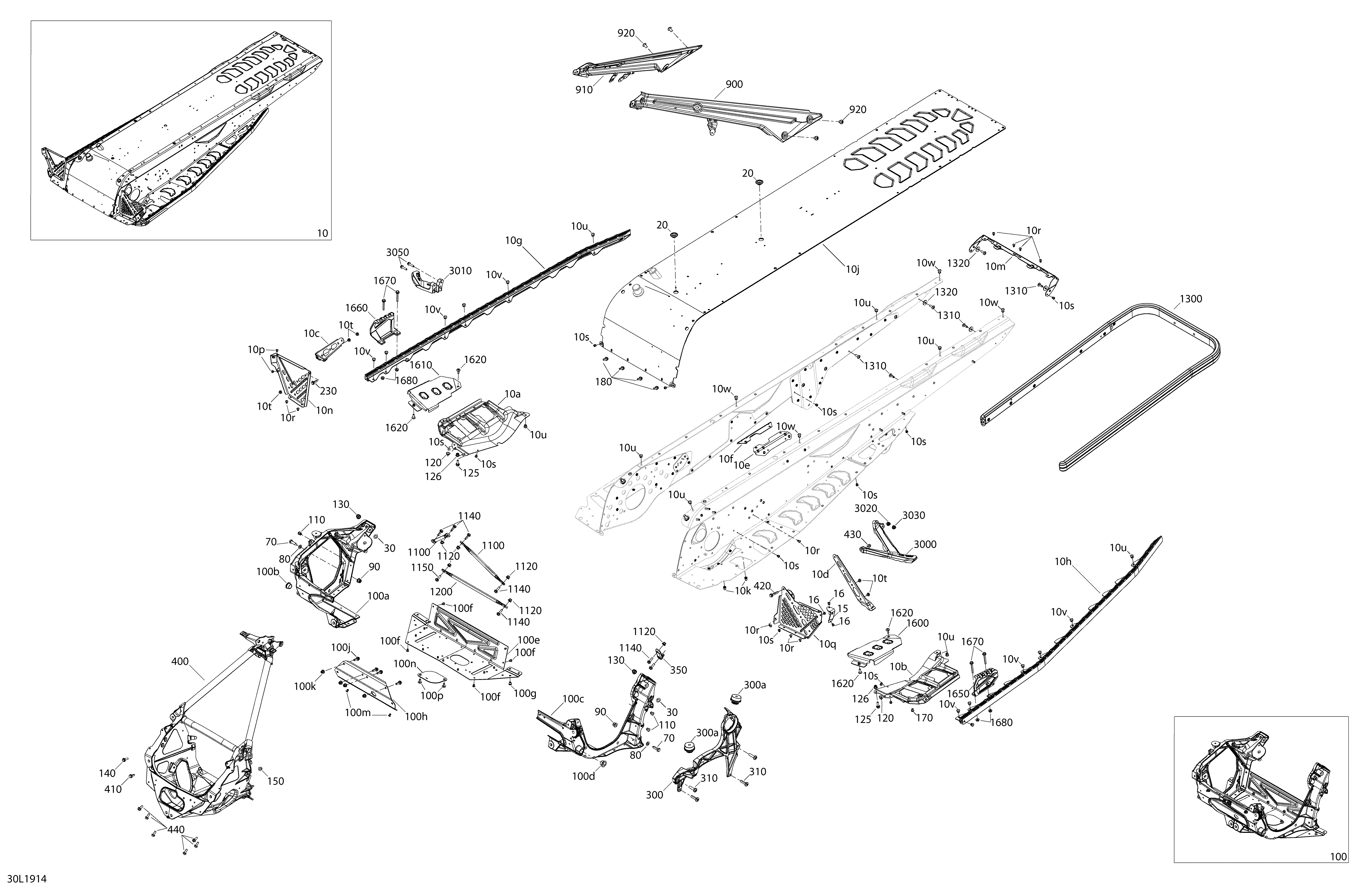

09- Frame XTRIM - 900 ACE для BRP Lynx 003 - XTRIM 900 ACE - 2019
-
№АртикулНазвание
-
10518330728 Black, Frame. Includes 10 to 10aaBlack, Frame. Includes 10 to 10aa
-
10a518330738 Deep Black, RH Footrest Reinforcement. Includes 10b to 10cDeep Black, RH Footrest Reinforcement. Includes 10b to 10c
-
10b518330737 Deep Black, LH Footrest Reinforcement. Includes 10d to 10fDeep Black, LH Footrest Reinforcement. Includes 10d to 10f
-
10c518330072 RH Footrest ReinforcementRH Footrest Reinforcement
-
10d518329049 LH Footrest ReinforcementLH Footrest Reinforcement
-
10e518330262 LH Member Fixation PlateLH Member Fixation Plate
-
10f518330263 RH Member Fixation PlateRH Member Fixation Plate
-
10g518330239 RH RollerRH Roller
-
10h518330240 LH RollerLH Roller
-
10j518330694 RadiatorRadiator
-
10k605636003 Clinch Nut M6 HexsertClinch Nut M6 Hexsert
-
10m518328990 Rear CapRear Cap
-
10n518330549 RH Footrest 400mm. Includes 10s to 10tRH Footrest 400mm. Includes 10s to 10t
-
10p390909200 Avex RivetAvex Rivet
-
10q518330550 LH Footrest 400mmLH Footrest 400mm
-
10r390909100 Avex RivetAvex Rivet
-
10s390909200 Avex RivetAvex Rivet
-
10t293150096 Hemlock Rivet, 6.5 mmHemlock Rivet, 6.5 mm
-
10u293150119 Hemlock Rivet, 6.5 mmHemlock Rivet, 6.5 mm
-
10v293150174 Hemlock Rivet, 6.4 mmHemlock Rivet, 6.4 mm
-
10w293150147 Hemlock RivetHemlock Rivet
-
15518330998 LH Front Chassis ReinforcementLH Front Chassis Reinforcement
-
16390909200 Avex RivetAvex Rivet
-
20293730052 Black, PlugBlack, Plug
-
30506151252 WasherWasher
-
70250000942 Hex Screw M8 X 30Hex Screw M8 X 30
-
80234081410 Flat Washer 8 mmFlat Washer 8 mm
-
90233281414 Hex. Flanged Elastic Nut M8Hex. Flanged Elastic Nut M8
-
100518330754 Module E 4TEC. Includes 100 to 100pModule E 4TEC. Includes 100 to 100p
-
100a518329336 RH Member Ass'y. Includes 100a to 100bRH Member Ass'y. Includes 100a to 100b
-
100b505073317 Leg CushionLeg Cushion
-
100c518330687 LH Member Ass'y. Includes 100c to 100dLH Member Ass'y. Includes 100c to 100d
-
100d505073317 Leg CushionLeg Cushion
-
100e518329342 Bottom PlateBottom Plate
-
100f390909100 Avex RivetAvex Rivet
-
100g293450268 Insert M5 X 0.8Insert M5 X 0.8
-
100h518330100 Front MemberFront Member
-
100j207662046 Hex. Flanged Screw M6 X 20Hex. Flanged Screw M6 X 20
-
100k233261414 Hex. Flanged Elastic Nut M6 x 1.0Hex. Flanged Elastic Nut M6 x 1.0
-
100m390909100 Avex RivetAvex Rivet
-
100n518329454 Oil PlateOil Plate
-
100p250000767 Torx Truss Screw M6 X 12Torx Truss Screw M6 X 12
-
110293150147 Hemlock RivetHemlock Rivet
-
120293150174 Hemlock Rivet, 6.4 mmHemlock Rivet, 6.4 mm
-
125207662044 Hex. Flanged Screw M6 X 20Hex. Flanged Screw M6 X 20
-
126233261414 Hex. Flanged Elastic Nut M6 x 1.0Hex. Flanged Elastic Nut M6 x 1.0
-
130233281414 Hex. Flanged Elastic Nut M8Hex. Flanged Elastic Nut M8
-
140207662044 Hex. Flanged Screw M6 X 20Hex. Flanged Screw M6 X 20
-
150233261414 Hex. Flanged Elastic Nut M6 x 1.0Hex. Flanged Elastic Nut M6 x 1.0
-
170293450268 Insert M5 X 0.8Insert M5 X 0.8
-
180207661646 Hex. Flange Screw M6 X 16Hex. Flange Screw M6 X 16
-
230207562034 Hex. Flanged Screw M6 X 20, Scotch GripHex. Flanged Screw M6 X 20, Scotch Grip
-
300518329331 Brace Ass'y. Includes 300 to 300aBrace Ass'y. Includes 300 to 300a
-
300a512060295 Rubber MountRubber Mount
-
310250001060 Screw-Pan HD.Torx M8X30Screw-Pan HD.Torx M8X30
-
350518329792 Brace LinkBrace Link
-
400518330570 S ModuleS Module
-
410250000822 Hex. Flanged Screw M6 X 16Hex. Flanged Screw M6 X 16
-
420207663544 Hex. Flanged Screw M6 X 35Hex. Flanged Screw M6 X 35
-
430233261414 Hex. Flanged Elastic Nut M6 x 1.0Hex. Flanged Elastic Nut M6 x 1.0
-
440207661646 Hex. Flange Screw M6 X 16Hex. Flange Screw M6 X 16
-
900518330241 White, LH MemberWhite, LH Member
-
910518330242 White, RH MemberWhite, RH Member
-
920250000887 Pan Head Torx Screw M8 X 12Pan Head Torx Screw M8 X 12
-
1100518329370 Upper Colomn SupportUpper Colomn Support
-
1120233261414 Hex. Flanged Elastic Nut M6 x 1.0Hex. Flanged Elastic Nut M6 x 1.0
-
1140207662044 Hex. Flanged Screw M6 X 20Hex. Flanged Screw M6 X 20
-
1150207562054 Flanged Hex. Screw S.GRIP M6 X 20Flanged Hex. Screw S.GRIP M6 X 20
-
1200518329755 Center Column SupportCenter Column Support
-
1300860201250 Black, Hitch Bumper 154Black, Hitch Bumper 154
-
1310250000779 Torx Screw M6 X 1.0 X 18, Scotch GripTorx Screw M6 X 1.0 X 18, Scotch Grip
-
1320224061201 Flat WasherFlat Washer
-
1600518330279 Black, LH Footrest. Includes 1600 to 1600aBlack, LH Footrest. Includes 1600 to 1600a
-
1610518330280 Black, RH Footrest. Includes 1610 to 1610aBlack, RH Footrest. Includes 1610 to 1610a
-
1620250000755 Torx Screw M6 X 16Torx Screw M6 X 16
-
1650518330797 LH Side Foot SupportLH Side Foot Support
-
1660518330798 RH Side Foot SupportRH Side Foot Support
-
1670207664554 Hexagonal Flanged ScrewHexagonal Flanged Screw
-
1680233161414 Hex. Flanged Nut M6Hex. Flanged Nut M6
-
3000518330358 Black Toe-holdBlack Toe-hold
-
3010518329134 Toe HoldToe Hold
-
3020233261494 Hex. Elastic Flanged Nut M6Hex. Elastic Flanged Nut M6
-
3030233261494 Hex. Elastic Flanged Nut M6Hex. Elastic Flanged Nut M6
-
3050210262550 Hex. Flanged Forming Screw M6 X 25Hex. Flanged Forming Screw M6 X 25
