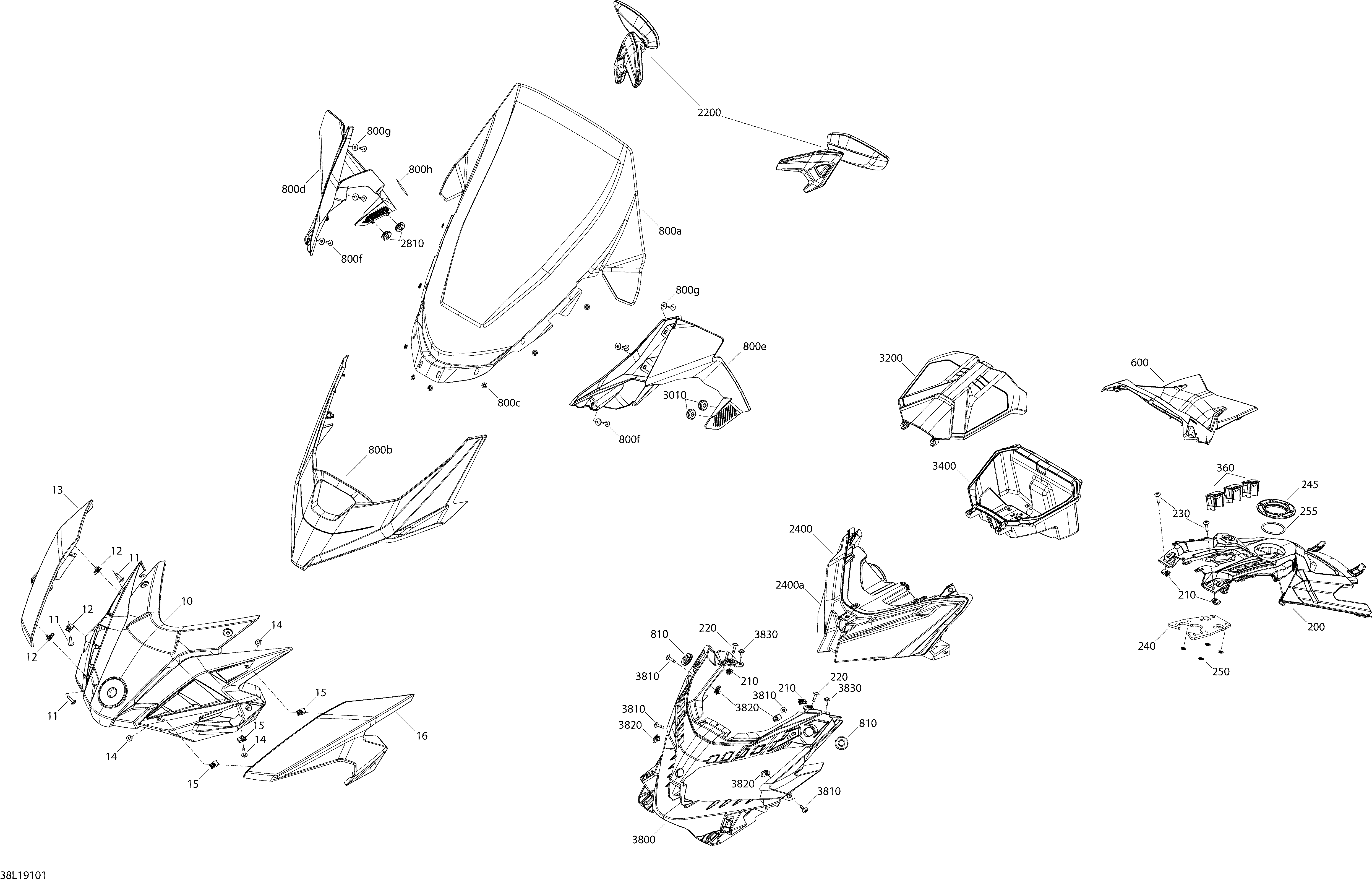

09- Hood - Front Section для BRP Lynx 003 - XTRIM 900 ACE - 2019
-
№АртикулНазвание
-
10517306115 Hood MiddleHood Middle
-
11250000528 Torx Screw M5 X 20Torx Screw M5 X 20
-
12250000958 Panel Nut M5 X 0.8Panel Nut M5 X 0.8
-
13517306604 White, RH Front HoodWhite, RH Front Hood
-
14250000528 Torx Screw M5 X 20Torx Screw M5 X 20
-
15250000958 Panel Nut M5 X 0.8Panel Nut M5 X 0.8
-
16517306605 White, LH Front HoodWhite, LH Front Hood
-
200517306573 Console RearConsole Rear
-
210250000958 Panel Nut M5 X 0.8Panel Nut M5 X 0.8
-
220250000528 Torx Screw M5 X 20Torx Screw M5 X 20
-
230250000587 Torx Screw M5 X 26Torx Screw M5 X 26
-
240517306398 Foam ConsoleFoam Console
-
245517306602 Console NutConsole Nut
-
250732610072 Push NutPush Nut
-
255706002839 O-RingO-Ring
-
260517307197 Console SealConsole Seal
-
360517306808 Switch Hole CapSwitch Hole Cap
-
600517306117 Indicator SupportIndicator Support
-
800a517306062 WindshieldWindshield
-
800b517306183 Deep Black, Windshield SupportDeep Black, Windshield Support
-
800c732610072 Push NutPush Nut
-
800d517306895 RH Upper Air DeflectorRH Upper Air Deflector
-
800e517306894 LH Upper Air DeflectorLH Upper Air Deflector
-
800f250000889 Screw M4 X 16Screw M4 X 16
-
800g250200024 Rubber Washer 5 mmRubber Washer 5 mm
-
810517303756 GrommetGrommet
-
2400517305752 Headlamp. Includes 2400 to 2400aHeadlamp. Includes 2400 to 2400a
-
2400a415130081 BulbBulb
-
2810517302841 GrommetGrommet
-
3010517302841 GrommetGrommet
-
3200517305871 Deep Black, Cover Ass'yDeep Black, Cover Ass'y
-
3400517306058 Trunk Ass'yTrunk Ass'y
-
3800517306186 Black, Head LampBlack, Head Lamp
-
3810250000528 Torx Screw M5 X 20Torx Screw M5 X 20
-
3820250000958 Panel Nut M5 X 0.8Panel Nut M5 X 0.8
-
3830250000725 Screw M4 X 16Screw M4 X 16
