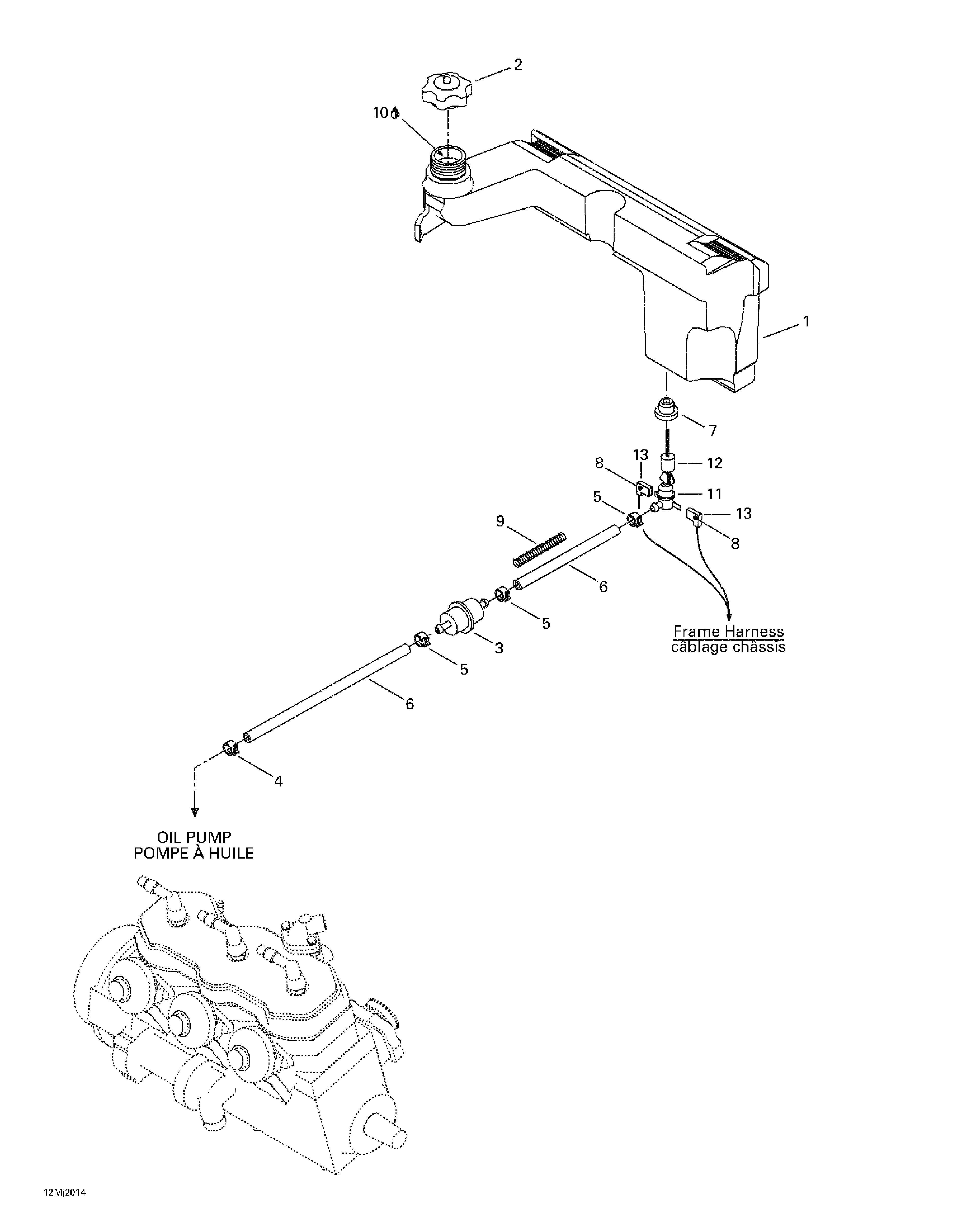

02- Oil Tank для BRP Ski-Doo Grand Touring 700 - 2000
-
№АртикулНазвание
-
1572088500 Oil TankOil Tank
-
2572071000 CapCap
-
3414536500 FilterFilter
-
4414420700 Spring ClampSpring Clamp
-
5414415200 Spring ClampSpring Clamp
-
6415080700 LineLine
-
7570023000 GrommetGrommet
-
8561503100 Female TerminalFemale Terminal
-
9519000001 SpringSpring
-
10413803100 Blizzard Oil (12 x 500 ml)Blizzard Oil (12 x 500 ml)
-
413802900 Injection Oil (12 x 1 Liter)Injection Oil (12 x 1 Liter)
-
413803000 Injection Oil (3 x 4 Liter)Injection Oil (3 x 4 Liter)
-
413803200 Injection Oil (205 Liter)Injection Oil (205 Liter)
-
413711000 Synthetic Injection Oil (3 x 4 Liter)Synthetic Injection Oil (3 x 4 Liter)
-
413710700 Synthetic Injection Oil (205 Liter)Synthetic Injection Oil (205 Liter)
-
413710500 Synthetic Injection Oil (12 x 1 Liter). Bombardier-Rotax Formula XP-SSynthetic Injection Oil (12 x 1 Liter). Bombardier-Rotax Formula XP-S
-
11414681800 Switch LeverSwitch Lever
-
12414681900 FloatFloat
-
13409204800 Female Terminal Housing (1 Circuit)Female Terminal Housing (1 Circuit)
