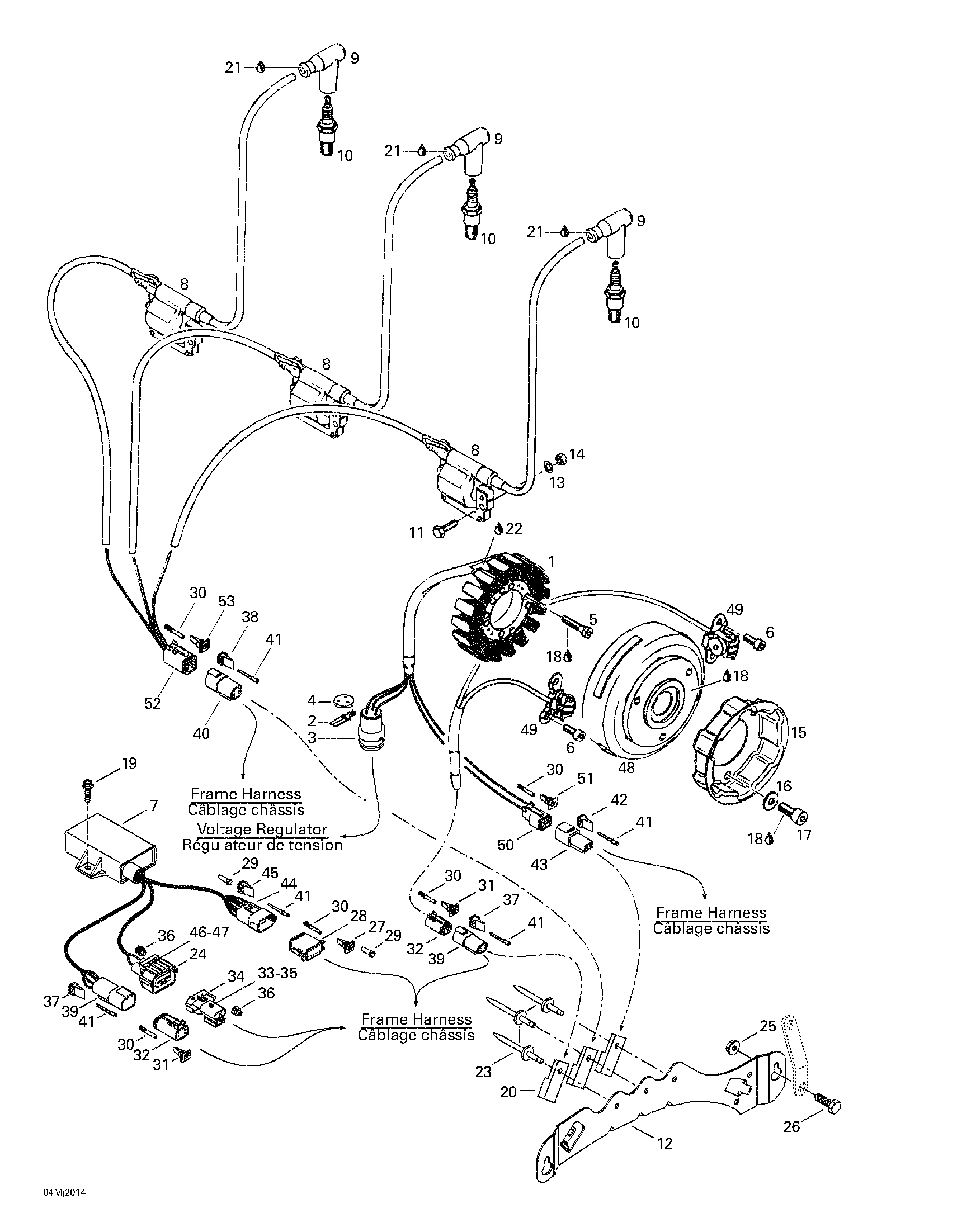

03- Magneto 12V 360W для BRP Ski-Doo Grand Touring 700 - 2000
-
№АртикулНазвание
-
1410922907 Stator Plate Ass'y. Includes 1 - 4.Stator Plate Ass'y. Includes 1 - 4.
-
2409011900 Female TerminalFemale Terminal
-
3409208200 Female Terminal Housing (3 Circuits)Female Terminal Housing (3 Circuits)
-
4409208500 SealSeal
-
5420840886 Cylinder Screw M6 x 30Cylinder Screw M6 x 30
-
6420840391 Taptite Screw M6 x 14Taptite Screw M6 x 14
-
7512059181 Calibration Module. GT 700.Calibration Module. GT 700.
-
515175426 Calibration Module. GT SE. GT SE Millennium Edition.Calibration Module. GT SE. GT SE Millennium Edition.
-
8420966705 Ignition Coil. Includes 8 - 9.Ignition Coil. Includes 8 - 9.
-
9278000237 Spark Plug CapSpark Plug Cap
-
10414961100 Spark Plug (NGK BR9-ES)Spark Plug (NGK BR9-ES)
-
11207162044 Hex. Screw M6 x 20Hex. Screw M6 x 20
-
12515175148 Housing SupportHousing Support
-
13420945751 Lock Washer 6 mmLock Washer 6 mm
-
14232061414 Nut M6Nut M6
-
15420852418 Starting PulleyStarting Pulley
-
16420827405 WasherWasher
-
17420841520 Socket Head Screw M8 x 12Socket Head Screw M8 x 12
-
18293800060 Loctite 243, 10 mlLoctite 243, 10 ml
-
19243141640 Screw M4.8 x 16Screw M4.8 x 16
-
20270000141 ClipClip
-
21293550004 Dielectric Grease, 150 gDielectric Grease, 150 g
-
24409206500 Female Connector Housing (2 Circuits)Female Connector Housing (2 Circuits)
-
25233251414 Elastic Flanged Stop Nut M5Elastic Flanged Stop Nut M5
-
26207151444 Hex. Screw M5 x 14Hex. Screw M5 x 14
-
29293000052 PlugPlug
-
30278000632 Female TerminalFemale Terminal
-
31278000738 Female Lock (4 Circuits)Female Lock (4 Circuits)
-
32278000739 Female Terminal Housing (4 Circuits)Female Terminal Housing (4 Circuits)
-
35409010900 Male TerminalMale Terminal
-
36409208300 Wire SealWire Seal
-
37278000636 (Female) Secondary Lock (4 Circuits) (Deutsch)(Female) Secondary Lock (4 Circuits) (Deutsch)
-
38278000735 (Female) Secondary Lock (6 Circuits) (Deutsch)(Female) Secondary Lock (6 Circuits) (Deutsch)
-
39278000635 Male Connector Housing (4 Circuits)Male Connector Housing (4 Circuits)
-
40278000137 Male Connector Housing (6 Circuits)Male Connector Housing (6 Circuits)
-
41278000631 Male TerminalMale Terminal
-
42409207500 Male LockMale Lock
-
46409011700 Female TerminalFemale Terminal
-
48410922908 FlywheelFlywheel
-
49410922909 Pick Up Ass'yPick Up Ass'y
-
50409207300 Female Connector Housing (2 Circuits)Female Connector Housing (2 Circuits)
-
51409207100 Female Lock (2 Circuits)Female Lock (2 Circuits)
-
52278000736 Female Connector Housing (6 Circuits)Female Connector Housing (6 Circuits)
-
53278000737 (Female) Secondary Lock (6 Circuits) (Deutsch)(Female) Secondary Lock (6 Circuits) (Deutsch)
