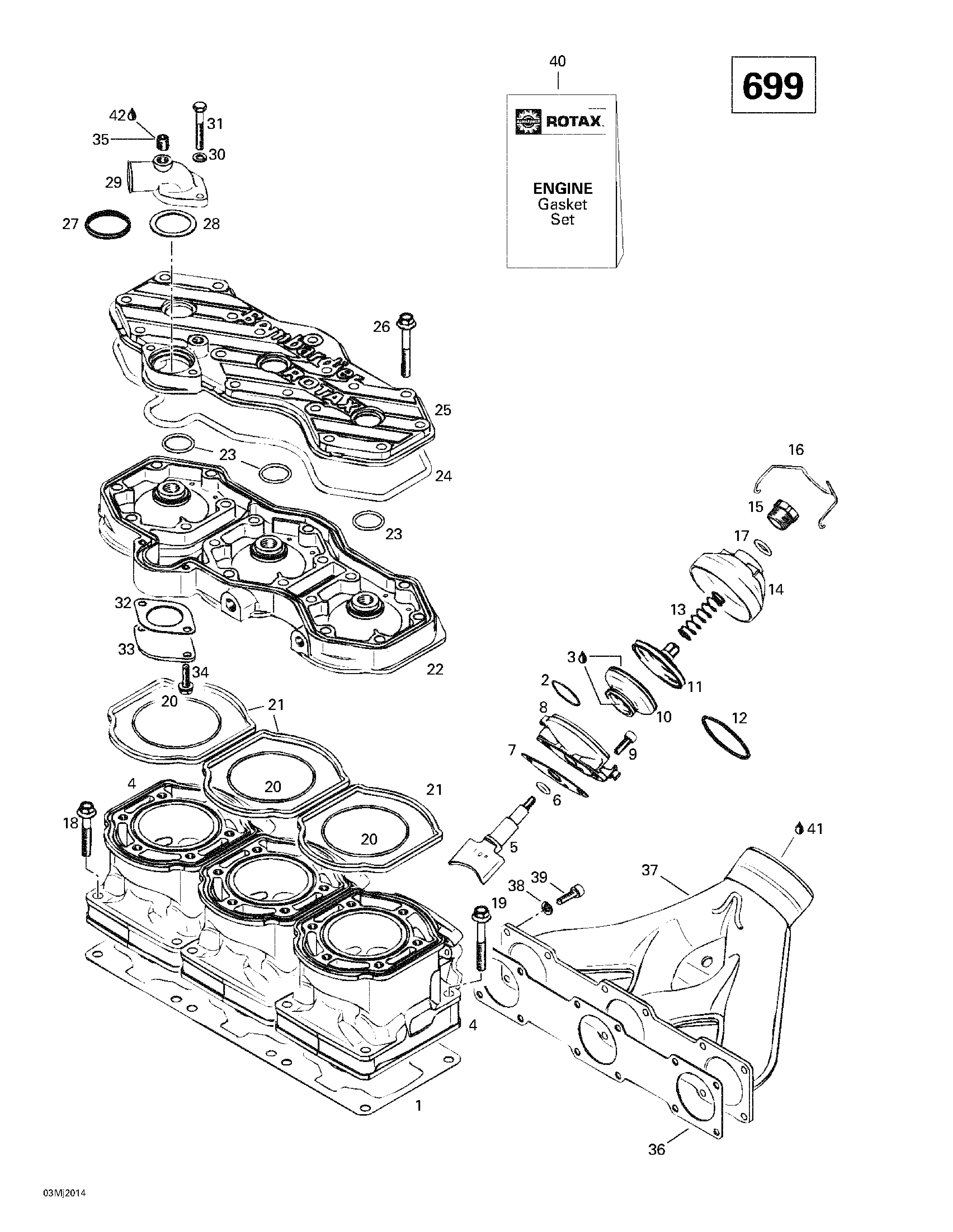

01- Cylinder, Exhaust Manifold (699) для BRP Ski-Doo Grand Touring SE - 2000
-
№АртикулНазвание
-
1420931572 Gasket 0.6 mm. GT 700.Gasket 0.6 mm. GT 700.
-
420931571 Gasket 0.4 mm. GT 700.Gasket 0.4 mm. GT 700.
-
420931570 Gasket 0.3 mm. GT 700.Gasket 0.3 mm. GT 700.
-
2420838253 Spring Clamp. GT 700.Spring Clamp. GT 700.
-
3413707000 Molykote 111. GT 700.Molykote 111. GT 700.
-
4420923420 Cylinder (Nicasil Coated). GT 700.Cylinder (Nicasil Coated). GT 700.
-
5420854307 Exhaust Valve. GT 700.Exhaust Valve. GT 700.
-
6420430110 O-Ring. GT 700.O-Ring. GT 700.
-
7420250239 Gasket. GT 700.Gasket. GT 700.
-
8420854265 Valve Housing. GT 700.Valve Housing. GT 700.
-
9420241236 Socket Head Screw M6 x 16. GT 700.Socket Head Screw M6 x 16. GT 700.
-
10420260723 Bellows. GT 700.Bellows. GT 700.
-
11420854448 Exhaust Valve. GT 700.Exhaust Valve. GT 700.
-
12290239048 Spring. GT 700.Spring. GT 700.
-
13420239945 Spring. GT 700.Spring. GT 700.
-
14420911551 Valve Cover. GT 700.Valve Cover. GT 700.
-
15420241221 Adjuster Screw. GT 700.Adjuster Screw. GT 700.
-
16420838082 Spring Clip. GT 700.Spring Clip. GT 700.
-
17420430220 O-Ring. GT 700.O-Ring. GT 700.
-
18420640431 Hex. Collar Screw M8 x 45. GT 700.Hex. Collar Screw M8 x 45. GT 700.
-
19420640441 Hex. Collar Screw M8 x 53.5. GT 700.Hex. Collar Screw M8 x 53.5. GT 700.
-
20420831792 O-Ring. GT 700.O-Ring. GT 700.
-
21420931320 Seal Ring. GT 700.Seal Ring. GT 700.
-
22420923128 Cylinder Head (Silver). GT 700.Cylinder Head (Silver). GT 700.
-
23420430782 O-Ring. GT 700.O-Ring. GT 700.
-
24420931330 O-Ring. GT 700.O-Ring. GT 700.
-
25420923134 Cylinder Head Cover (Silver). GT 700.Cylinder Head Cover (Silver). GT 700.
-
26420941621 Hex. Collar Screw M8 x 56.5. GT 700.Hex. Collar Screw M8 x 56.5. GT 700.
-
27420931270 Sealing Ring. GT 700.Sealing Ring. GT 700.
-
28420927745 Retaining Disk. GT 700.Retaining Disk. GT 700.
-
29420922485 Exhaust Socket. GT 700.Exhaust Socket. GT 700.
-
30420945751 Lock Washer 6 mm. GT 700.Lock Washer 6 mm. GT 700.
-
31207064044 Hex. Screw M6 x 40. GT 700.Hex. Screw M6 x 40. GT 700.
-
32420850336 Gasket 1.0 mm. GT 700.Gasket 1.0 mm. GT 700.
-
33420926260 Cover. GT 700.Cover. GT 700.
-
34420240580 Taptite-Screw M6 x 16. GT 700.Taptite-Screw M6 x 16. GT 700.
-
35420240480 Plug Screw. GT 700.Plug Screw. GT 700.
-
36420931740 Gasket. GT 700.Gasket. GT 700.
-
37420979610 Exhaust Socket. GT 700.Exhaust Socket. GT 700.
-
38234161471 Lock Washer 6mm. GT 700.Lock Washer 6mm. GT 700.
-
39205062544 Socket Head Screw M6 x 25. GT 700.Socket Head Screw M6 x 25. GT 700.
-
40420886313 Gasket Set. GT 700.Gasket Set. GT 700.
-
41413710300 Sealant, Loctite 17914, 80 ml. GT 700.Sealant, Loctite 17914, 80 ml. GT 700.
-
42293800060 Loctite 243, 10 ml. GT 700.Loctite 243, 10 ml. GT 700.
