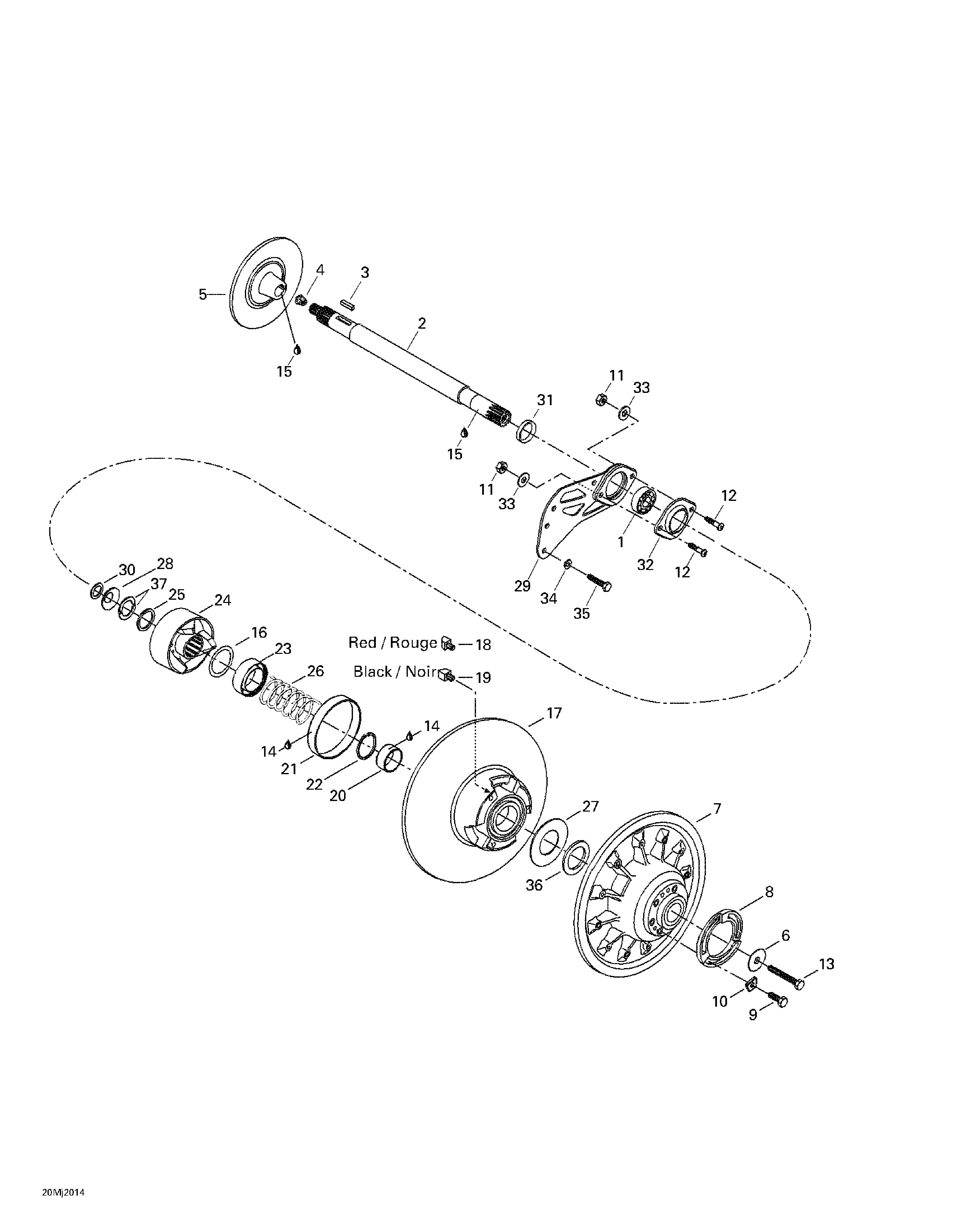

05- Driven Pulley для BRP Ski-Doo Grand Touring SE - 2000
-
№АртикулНазвание
-
1405408200 Ball BearingBall Bearing
-
2501026300 CountershaftCountershaft
-
3507021300 KeyKey
-
4414784800 CorkCork
-
5507031300 DiskDisk
-
6517302322 WasherWasher
-
7417126414 Fixed Flange Ass'y. Includes 7 - 10.Fixed Flange Ass'y. Includes 7 - 10.
-
8415005800 Adjustment RingAdjustment Ring
-
9207162544 Screw Hex. M6 x 25 (3)Screw Hex. M6 x 25 (3)
-
207162244 Screw Hex. M6 x 22 (3)Screw Hex. M6 x 22 (3)
-
10415005900 Adjustment ShimAdjustment Shim
-
11232581414 Elastic Stop Nut M8Elastic Stop Nut M8
-
12205483046 Socket Head Screw M8 x 30Socket Head Screw M8 x 30
-
13207087544 Hex. Screw M8 x 75Hex. Screw M8 x 75
-
14413703100 Loctite 609, 10ccLoctite 609, 10cc
-
15293800023 Loctite 767, Antiseize Lubricant, 454 gLoctite 767, Antiseize Lubricant, 454 g
-
16417126322 Swivel AbutmentSwivel Abutment
-
17417126318 Sliding Flange Ass'y. Includes 17 - 22.Sliding Flange Ass'y. Includes 17 - 22.
-
18417126373 Rear Cam Shoe Slider (Red)Rear Cam Shoe Slider (Red)
-
19417126374 Front Cam Shoe Slider (Black)Front Cam Shoe Slider (Black)
-
21414978100 BushingBushing
-
22371911200 CirclipCirclip
-
23417126381 GuardGuard
-
24417126385 Cam Ass'yCam Ass'y
-
25417126375 SpacerSpacer
-
26414978300 Release SpringRelease Spring
-
27504099600 Stopper WasherStopper Washer
-
28417300055 ProtectorProtector
-
29080039300 Spacer (Casting)Spacer (Casting)
-
30417300054 SpacerSpacer
-
31504149100 SpacerSpacer
-
32501026900 FlangeFlange
-
33234081410 Flat WasherFlat Washer
-
34234161471 Lock Washer 6 mmLock Washer 6 mm
-
35207161844 Hex. Screw M6 x 18Hex. Screw M6 x 18
-
36504112300 ShimShim
-
37371911000 Half KeyHalf Key
