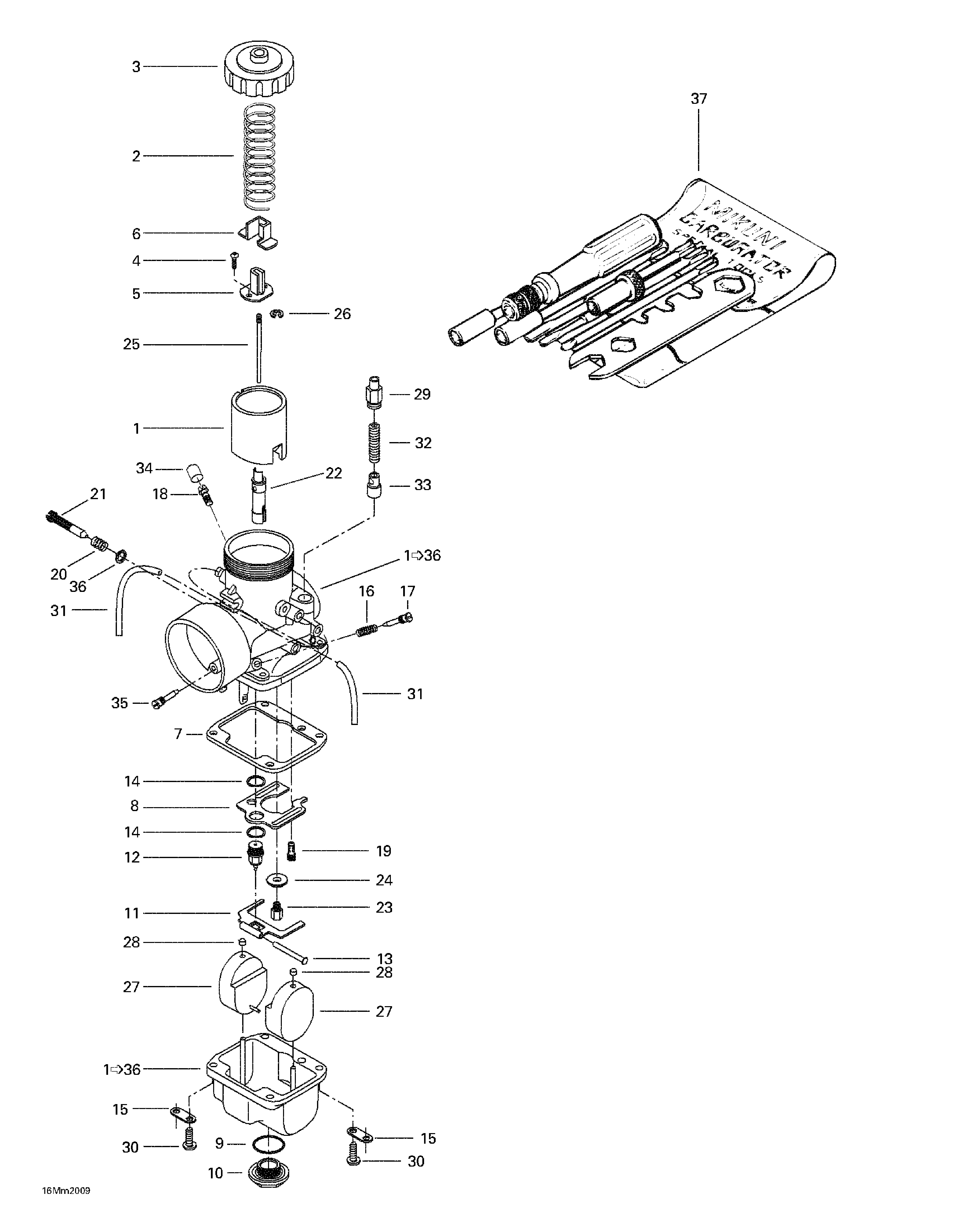

02- Carburetors для BRP Ski-Doo MX Z 600 - 2000
-
№АртикулНазвание
-
1403138614 VM 40-122 Carburetor. Includes 1 - 36. MX-Z 600.VM 40-122 Carburetor. Includes 1 - 36. MX-Z 600.
-
403138616 VM 40-124 Carburetor. MX-Z 600 SB. MX-Z 600 SB Black.VM 40-124 Carburetor. MX-Z 600 SB. MX-Z 600 SB Black.
-
1404132300 Piston Valve CA 2.5Piston Valve CA 2.5
-
2404156500 SpringSpring
-
3404126800 CoverCover
-
4404121300 Screw with WasherScrew with Washer
-
5404160800 ConnectorConnector
-
6404128100 CoverCover
-
7404104700 GasketGasket
-
8404112700 BaffleBaffle
-
9404112800 WasherWasher
-
10404112900 Drain Plug ScrewDrain Plug Screw
-
11404161823 Float LeverFloat Lever
-
12404147400 Needle Valve 1.5Needle Valve 1.5
-
13404103300 Lever PinLever Pin
-
14404101600 Seat WasherSeat Washer
-
15404103000 Plate. MX-Z 600.Plate. MX-Z 600.
-
16404139800 Spring (Air Screw)Spring (Air Screw)
-
17404149000 Air ScrewAir Screw
-
18404153400 NippleNipple
-
19404161846 Pilot Jet PJ 37.5Pilot Jet PJ 37.5
-
20404101700 Spring (Adjustment Screw)Spring (Adjustment Screw)
-
21404125200 Throttle Adjustment ScrewThrottle Adjustment Screw
-
22404153800 Needle Jet 224-Z-9Needle Jet 224-Z-9
-
23404100500 Main Jet MJ 280Main Jet MJ 280
-
24404116700 WasherWasher
-
25404161847 Needle J8-7DFY01Needle J8-7DFY01
-
26404152200 E-RingE-Ring
-
27404105400 FloatFloat
-
28404105800 CapCap
-
29404161100 Guide HolderGuide Holder
-
30404102000 Screw with Lock WasherScrew with Lock Washer
-
31404161814 Hose. MX-Z 600.Hose. MX-Z 600.
-
404161802 Air Vent Tube. MX-Z 600 SB. MX-Z 600 SB Black.Air Vent Tube. MX-Z 600 SB. MX-Z 600 SB Black.
-
32404161844 SpringSpring
-
33404161845 Plunger Ass'yPlunger Ass'y
-
34404154900 CapCap
-
35404131700 Plug Screw. MX-Z 600 SB. MX-Z 600 SB Black.Plug Screw. MX-Z 600 SB. MX-Z 600 SB Black.
-
36270500018 WasherWasher
-
37404112000 Tool KitTool Kit
