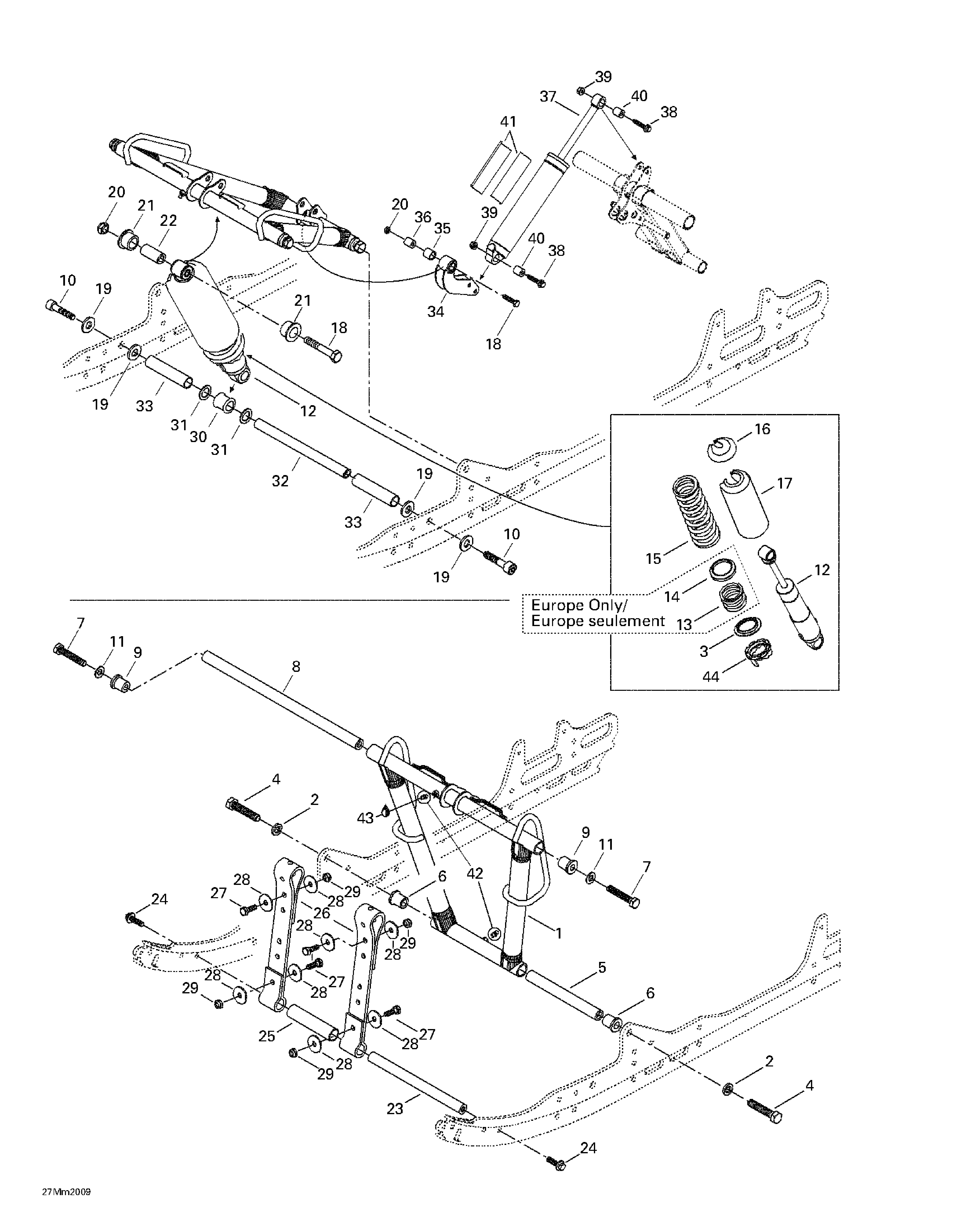

08- Front Arm, Rear Suspension для BRP Ski-Doo MX Z 600 - 2000
-
№АртикулНазвание
-
1503189292 Front ArmFront Arm
-
2503189276 Lock Washer 12 mmLock Washer 12 mm
-
3517184300 Spring GuideSpring Guide
-
4207226044 Hex. Screw M12 x 60 (Scotch Grip)Hex. Screw M12 x 60 (Scotch Grip)
-
5503189313 ShaftShaft
-
6503189323 CushionCushion
-
7207205544 Hex. Screw M10 x 55 (Scotch Grip)Hex. Screw M10 x 55 (Scotch Grip)
-
8503188938 ShaftShaft
-
9503189324 CushionCushion
-
10205523544 Socket Screw M12 x 35 (Scotch Grip)Socket Screw M12 x 35 (Scotch Grip)
-
11732900049 Flat Washer 10 mmFlat Washer 10 mm
-
12503189076 Center ShockCenter Shock
-
503189491 Center Shock (Europe). MX-Z 600.Center Shock (Europe). MX-Z 600.
-
13503189090 Spring (Europe). MX-Z 600.Spring (Europe). MX-Z 600.
-
14503182200 Spring Spacer (Europe). MX-Z 600.Spring Spacer (Europe). MX-Z 600.
-
15503189325 SpringSpring
-
415090500 Spring (Europe). MX-Z 600.Spring (Europe). MX-Z 600.
-
16503140600 Spring StopperSpring Stopper
-
17503188930 ProtectorProtector
-
18207005044 Hex. Screw M10 x 50Hex. Screw M10 x 50
-
19503189276 WasherWasher
-
20233601416 Elastic Stop Nut M10Elastic Stop Nut M10
-
21503189117 CushionCushion
-
22503189282 BushingBushing
-
23503151600 AxleAxle
-
24207583044 Hex Flanged Screw M8 x 30 (Scotch Grip)Hex Flanged Screw M8 x 30 (Scotch Grip)
-
25503189265 SpacerSpacer
-
26503189362 Stopper StrapStopper Strap
-
27207182544 Hex. Screw M8 x 25Hex. Screw M8 x 25
-
28224081301 Flat WasherFlat Washer
-
29232581414 Elastic Stop Nut M8Elastic Stop Nut M8
-
30503189271 CushionCushion
-
31503189273 WasherWasher
-
32503189272 Center Shock ShaftCenter Shock Shaft
-
33503189274 SpacerSpacer
-
34503189303 RockerRocker
-
35503189388 Rocker AxleRocker Axle
-
36503189410 CushionCushion
-
37503189077 Rear ShockRear Shock
-
503189492 Rear Shock (Europe). MX-Z 600.Rear Shock (Europe). MX-Z 600.
-
38207684044 Hex. Flange Screw M8 x 40Hex. Flange Screw M8 x 40
-
39233281414 Elastic Flange Stop Nut M8Elastic Flange Stop Nut M8
-
40414936000 CushionCushion
-
41516000183 Shock DecalShock Decal
-
42408200700 Grease FittingGrease Fitting
-
43219700417 Synthetic Grease, 400gSynthetic Grease, 400g
-
44414762600 Adjuster RingAdjuster Ring
