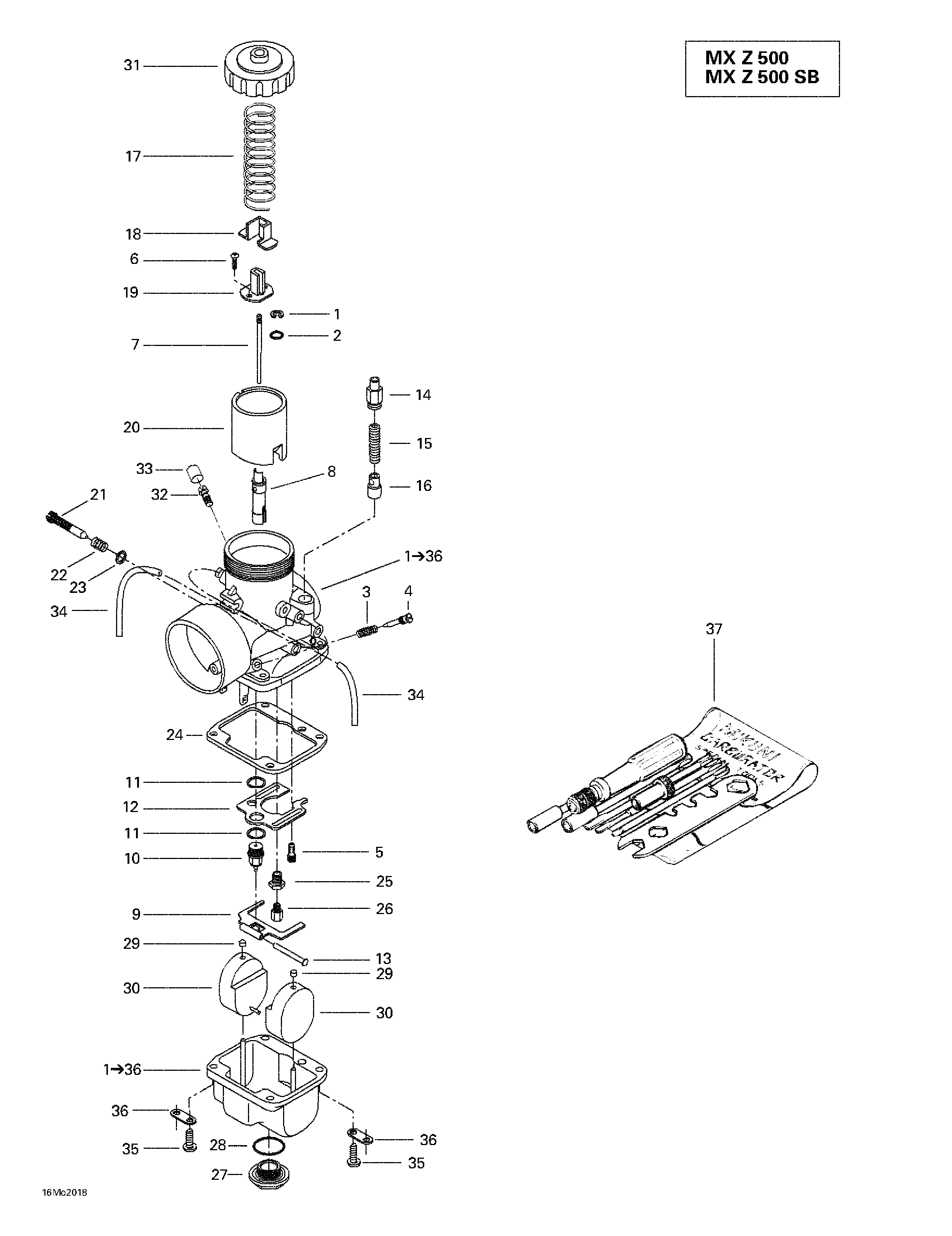

02- Carburetors для BRP Ski-Doo MX Z 700 - 2000
-
№АртикулНазвание
-
1403138581 VM 38-429 Carburetor. Includes 1 - 36. MX Z 500. MX Z 500 SB (Black).VM 38-429 Carburetor. Includes 1 - 36. MX Z 500. MX Z 500 SB (Black).
-
1404152400 E-Ring. MX Z 500. MX Z 500 SB (Black).E-Ring. MX Z 500. MX Z 500 SB (Black).
-
2404117000 Packing. MX Z 500. MX Z 500 SB (Black).Packing. MX Z 500. MX Z 500 SB (Black).
-
3404139800 Spring (Air Screw). MX Z 500. MX Z 500 SB (Black).Spring (Air Screw). MX Z 500. MX Z 500 SB (Black).
-
4404149000 Air Screw. MX Z 500. MX Z 500 SB (Black).Air Screw. MX Z 500. MX Z 500 SB (Black).
-
5404109100 Pilot Jet PJ 40. MX Z 500. MX Z 500 SB (Black).Pilot Jet PJ 40. MX Z 500. MX Z 500 SB (Black).
-
6404121300 Screw with Washer. MX Z 500. MX Z 500 SB (Black).Screw with Washer. MX Z 500. MX Z 500 SB (Black).
-
7404161884 Needle J8-6DEY10. MX Z 500. MX Z 500 SB (Black).Needle J8-6DEY10. MX Z 500. MX Z 500 SB (Black).
-
8404161700 Needle Jet 480-P-8. MX Z 500. MX Z 500 SB (Black).Needle Jet 480-P-8. MX Z 500. MX Z 500 SB (Black).
-
9404161823 Float Lever. MX Z 500. MX Z 500 SB (Black).Float Lever. MX Z 500. MX Z 500 SB (Black).
-
10404147400 Needle Valve 1.5. MX Z 500. MX Z 500 SB (Black).Needle Valve 1.5. MX Z 500. MX Z 500 SB (Black).
-
11404101600 Seat Washer. MX Z 500. MX Z 500 SB (Black).Seat Washer. MX Z 500. MX Z 500 SB (Black).
-
13404103300 Lever Pin. MX Z 500. MX Z 500 SB (Black).Lever Pin. MX Z 500. MX Z 500 SB (Black).
-
14404161100 Guide Holder. MX Z 500. MX Z 500 SB (Black).Guide Holder. MX Z 500. MX Z 500 SB (Black).
-
15404161844 Spring. MX Z 500. MX Z 500 SB (Black).Spring. MX Z 500. MX Z 500 SB (Black).
-
16404161845 Plunger Ass'y. MX Z 500. MX Z 500 SB (Black).Plunger Ass'y. MX Z 500. MX Z 500 SB (Black).
-
17404154800 Spring. MX Z 500. MX Z 500 SB (Black).Spring. MX Z 500. MX Z 500 SB (Black).
-
18404122100 Cover. MX Z 500. MX Z 500 SB (Black).Cover. MX Z 500. MX Z 500 SB (Black).
-
19404160800 Connector. MX Z 500. MX Z 500 SB (Black).Connector. MX Z 500. MX Z 500 SB (Black).
-
20404131300 Piston Valve CA 2.5. MX Z 500. MX Z 500 SB (Black).Piston Valve CA 2.5. MX Z 500. MX Z 500 SB (Black).
-
21404102800 Throttle Adjustment Screw. MX Z 500. MX Z 500 SB (Black).Throttle Adjustment Screw. MX Z 500. MX Z 500 SB (Black).
-
22404101700 Spring (Adjustment Screw). MX Z 500. MX Z 500 SB (Black).Spring (Adjustment Screw). MX Z 500. MX Z 500 SB (Black).
-
23270500018 Washer. MX Z 500. MX Z 500 SB (Black).Washer. MX Z 500. MX Z 500 SB (Black).
-
24404104700 Gasket. MX Z 500. MX Z 500 SB (Black).Gasket. MX Z 500. MX Z 500 SB (Black).
-
25404105500 Screw Guide. MX Z 500. MX Z 500 SB (Black).Screw Guide. MX Z 500. MX Z 500 SB (Black).
-
26404100500 Main Jet MJ 280. MX Z 500. MX Z 500 SB (Black).Main Jet MJ 280. MX Z 500. MX Z 500 SB (Black).
-
27404112900 Drain Plug Screw. MX Z 500. MX Z 500 SB (Black).Drain Plug Screw. MX Z 500. MX Z 500 SB (Black).
-
28404112800 Washer. MX Z 500. MX Z 500 SB (Black).Washer. MX Z 500. MX Z 500 SB (Black).
-
29404105800 Cap. MX Z 500. MX Z 500 SB (Black).Cap. MX Z 500. MX Z 500 SB (Black).
-
30404105400 Float. MX Z 500. MX Z 500 SB (Black).Float. MX Z 500. MX Z 500 SB (Black).
-
31404105100 Cover. MX Z 500. MX Z 500 SB (Black).Cover. MX Z 500. MX Z 500 SB (Black).
-
32404153400 Nipple. MX Z 500. MX Z 500 SB (Black).Nipple. MX Z 500. MX Z 500 SB (Black).
-
33404154900 Cap. MX Z 500. MX Z 500 SB (Black).Cap. MX Z 500. MX Z 500 SB (Black).
-
34404161880 Hose. MX Z 500. MX Z 500 SB (Black).Hose. MX Z 500. MX Z 500 SB (Black).
-
35404102000 Screw with Lock Washer. MX Z 500. MX Z 500 SB (Black).Screw with Lock Washer. MX Z 500. MX Z 500 SB (Black).
-
36404103000 Plate. MX Z 500. MX Z 500 SB (Black).Plate. MX Z 500. MX Z 500 SB (Black).
-
37404112000 Tool Kit. MX Z 500. MX Z 500 SB (Black).Tool Kit. MX Z 500. MX Z 500 SB (Black).
