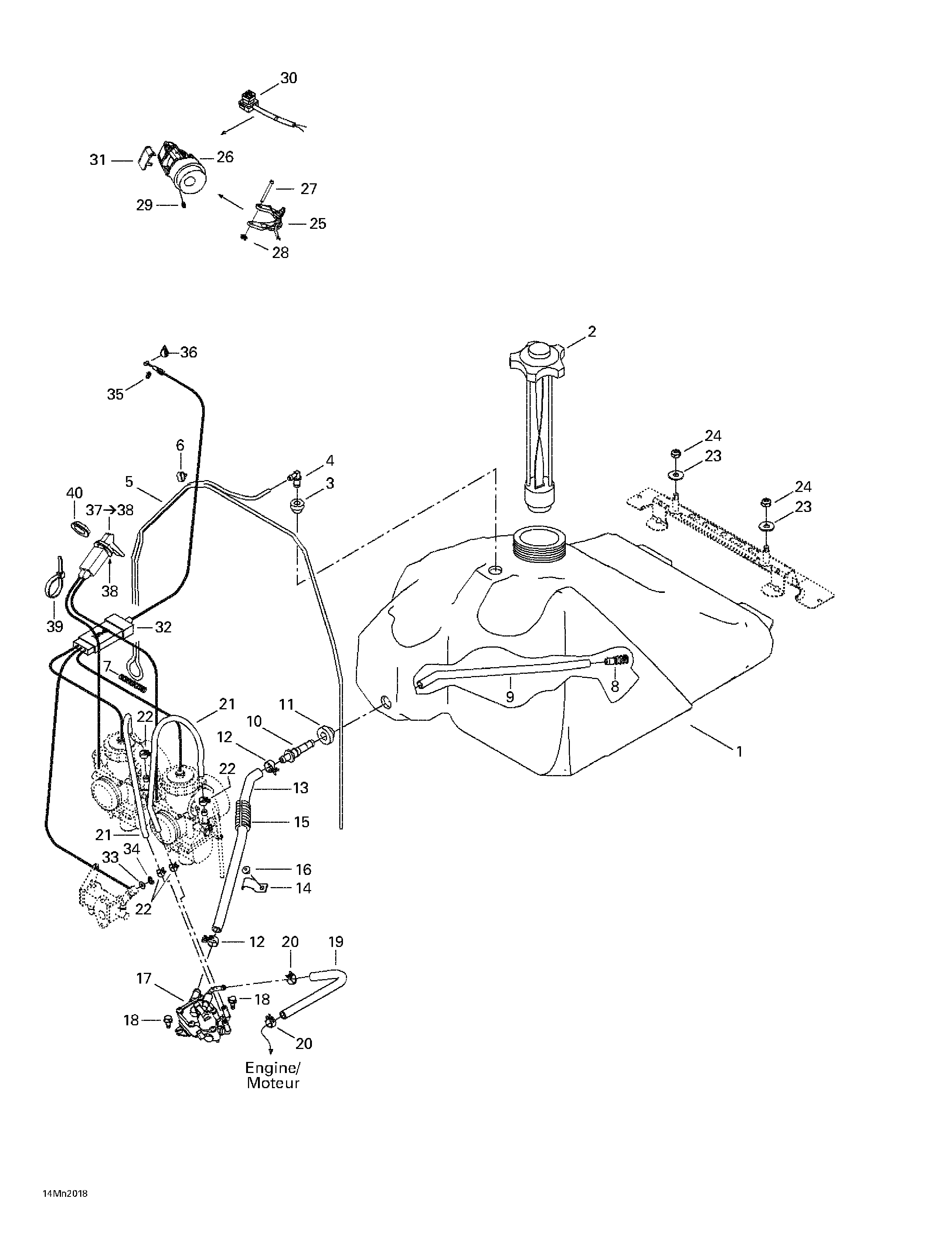

02- Fuel System для BRP Ski-Doo MX Z 700 - 2000
-
№АртикулНазвание
-
1513032987 Fuel TankFuel Tank
-
2513032901 Fuel Tank CapFuel Tank Cap
-
3513032908 GrommetGrommet
-
4414814100 Male ConnectorMale Connector
-
5415080100 Primer LinePrimer Line
-
6513032923 Tube ClampTube Clamp
-
7414818200 SpringSpring
-
8414872100 Fuel FilterFuel Filter
-
9415005700 HoseHose
-
10414872700 Male ConnectorMale Connector
-
11570273900 GrommetGrommet
-
12513032979 Spring ClampSpring Clamp
-
13513032903 Formed HoseFormed Hose
-
14415018200 ClipClip
-
15415080000 TubingTubing
-
16390406500 Pop Rivet 3/16Pop Rivet 3/16
-
17403901800 Fuel PumpFuel Pump
-
18210361280 Hex. Screw M6 x 12Hex. Screw M6 x 12
-
19415079800 Rubber HoseRubber Hose
-
20414415200 Spring ClampSpring Clamp
-
21415117800 Formed TubeFormed Tube
-
22414420700 Spring ClampSpring Clamp
-
23234082410 Flat Washer 8 mmFlat Washer 8 mm
-
24232581414 Elastic Stop Nut M8Elastic Stop Nut M8
-
25512059153 Handle Ass'y 38 mm. MX Z 500. MX Z 500 SB (Black).Handle Ass'y 38 mm. MX Z 500. MX Z 500 SB (Black).
-
512059172 Handle Ass'y 40 mm. MX Z 700. MX Z 700 SB. MX Z 700 SB (Black). MX Z 700 SB Millennium Edition.Handle Ass'y 40 mm. MX Z 700. MX Z 700 SB. MX Z 700 SB (Black). MX Z 700 SB Millennium Edition.
-
26572100900 Throttle Handle HousingThrottle Handle Housing
-
27414438700 Lever PinLever Pin
-
28414439000 CirclipCirclip
-
29414440800 Set Screw M8 x 10Set Screw M8 x 10
-
30515175410 Kill SwitchKill Switch
-
31572100901 Switch CoverSwitch Cover
-
32512059111 Throttle Cable. MX Z 500. MX Z 500 SB (Black).Throttle Cable. MX Z 500. MX Z 500 SB (Black).
-
512059188 Throttle Cable. MX Z 700. MX Z 700 SB. MX Z 700 SB (Black). MX Z 700 SB Millennium Edition.Throttle Cable. MX Z 700. MX Z 700 SB. MX Z 700 SB (Black). MX Z 700 SB Millennium Edition.
-
33414753300 WasherWasher
-
34414753500 CirclipCirclip
-
35414274500 CirclipCirclip
-
36293550004 Dielectric Grease, 150 gDielectric Grease, 150 g
-
37512059203 Choke Cable. Includes 37 - 38.Choke Cable. Includes 37 - 38.
-
38394103300 Interior Tooth Lock WasherInterior Tooth Lock Washer
-
39293750001 Tie Rap 94 mmTie Rap 94 mm
-
40512059094 Plastic NutPlastic Nut
