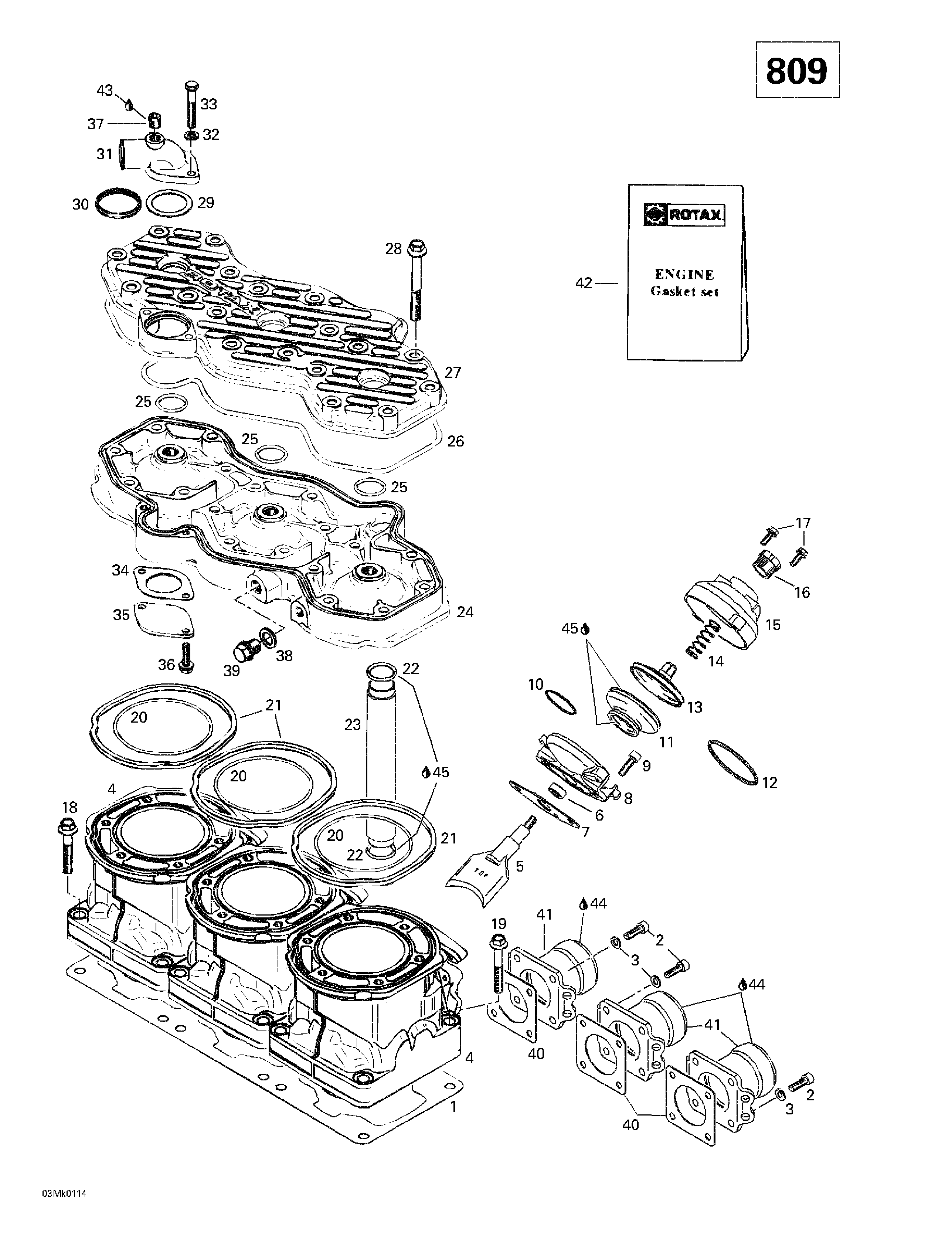

01- Cylinder, Exhaust Manifold для BRP Ski-Doo Mach Z - 2001
-
№АртикулНазвание
-
1420931622 Gasket 0.6 mmGasket 0.6 mm
-
420931621 Gasket 0.4 mmGasket 0.4 mm
-
420931620 Gasket 0.3 mmGasket 0.3 mm
-
2205062544 Socket Head Screw M6 x 25Socket Head Screw M6 x 25
-
3234161471 Lock Washer 6 mmLock Washer 6 mm
-
4420923480 Cylinder (Nicasil Coated)Cylinder (Nicasil Coated)
-
5420854303 Exhaust ValveExhaust Valve
-
6420950730 Oil SealOil Seal
-
7420250239 GasketGasket
-
8420854266 Valve HousingValve Housing
-
9420241236 Socket Head Screw M6 x 16Socket Head Screw M6 x 16
-
10420838253 Spring ClampSpring Clamp
-
11290260723 BellowsBellows
-
12290239048 SpringSpring
-
13420854448 Exhaust Valve PistonExhaust Valve Piston
-
14420239941 SpringSpring
-
15420911552 Valve CoverValve Cover
-
16420241221 Adjuster ScrewAdjuster Screw
-
17420841555 Tapping Screw M5 x 20Tapping Screw M5 x 20
-
18420640431 Collar Hex. Screw M8 x 45Collar Hex. Screw M8 x 45
-
19420640441 Collar Hex. Screw M8 x 53.5Collar Hex. Screw M8 x 53.5
-
20420831792 O-RingO-Ring
-
21420931320 Seal RingSeal Ring
-
22420430370 O'RingO'Ring
-
23420922450 Water TubeWater Tube
-
24420913638 Cylinder HeadCylinder Head
-
25420430782 O-RingO-Ring
-
26420950310 O-RingO-Ring
-
27420923493 Cylinder Head CoverCylinder Head Cover
-
28420841996 Hex. Screw M8 x 68.5Hex. Screw M8 x 68.5
-
29420927745 Retaining DiskRetaining Disk
-
30420931270 Sealing RingSealing Ring
-
31420922485 Exhaust SocketExhaust Socket
-
32420945751 Lock Washer 6 mmLock Washer 6 mm
-
33207064044 Hex. Screw M6 x 40Hex. Screw M6 x 40
-
34420850338 Gasket 1.0 mmGasket 1.0 mm
-
35420926260 CoverCover
-
36420240580 Taptite Screw M6 x 16Taptite Screw M6 x 16
-
37420240480 Plug ScrewPlug Screw
-
38420250015 Gasket RingGasket Ring
-
39420841921 Plug Screw M12 x 1.5Plug Screw M12 x 1.5
-
40420850552 GasketGasket
-
41420978818 Exhaust SocketExhaust Socket
-
42420888790 Gasket SetGasket Set
-
43293800060 Loctite 243, 10 mlLoctite 243, 10 ml
-
44293800023 Loctite 767, Antiseize Lubricant, 454 gLoctite 767, Antiseize Lubricant, 454 g
-
45413707000 Molykote 111Molykote 111
