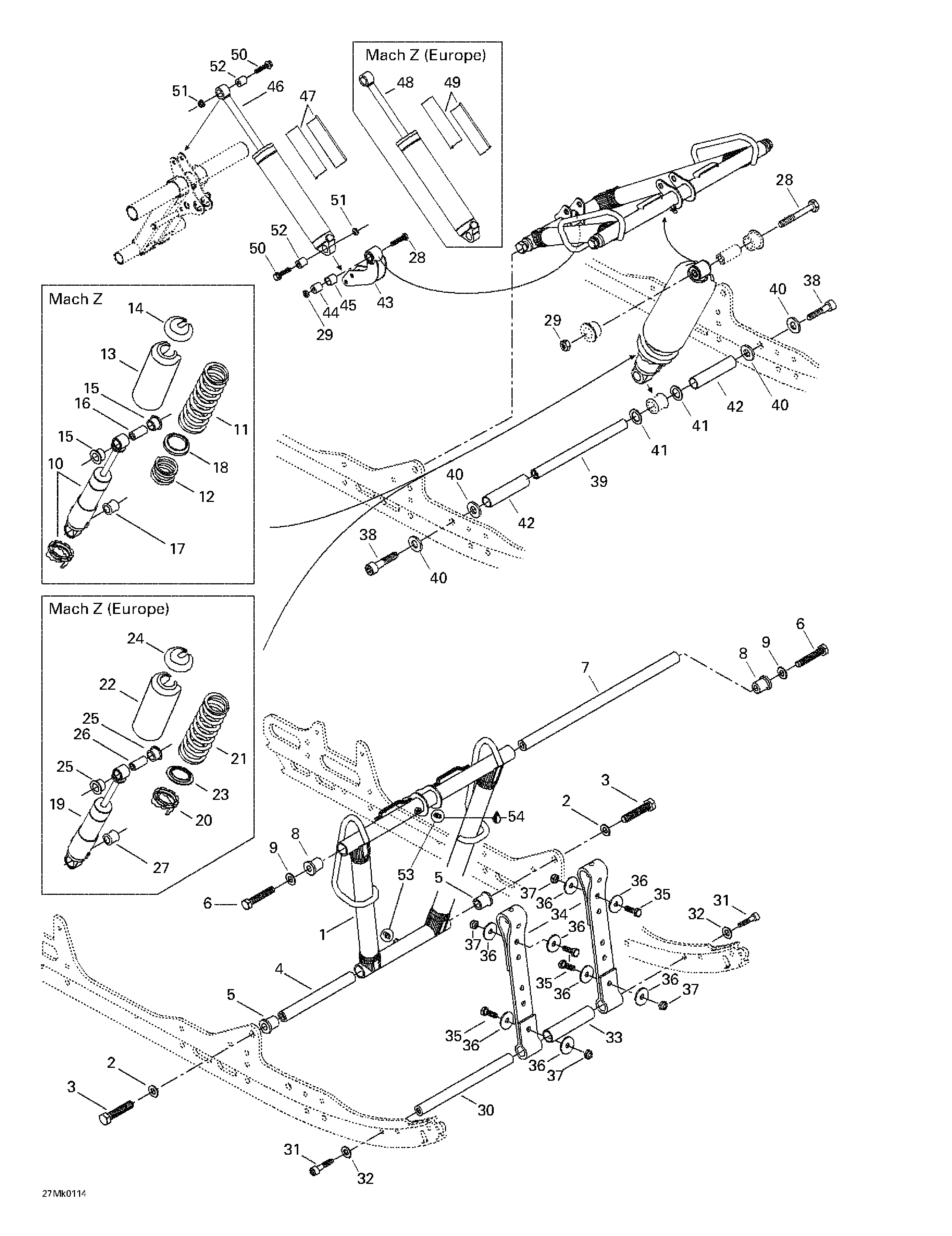

08- Front Arm для BRP Ski-Doo Mach Z - 2001
-
№АртикулНазвание
-
1503189292 Front ArmFront Arm
-
2503189276 WasherWasher
-
3207226044 Hex. Screw M12 x 60 (Scotch Grip)Hex. Screw M12 x 60 (Scotch Grip)
-
4503189313 ShaftShaft
-
5503189323 CushionCushion
-
6207205544 Hex. Screw M10 x 55 (Scotch Grip)Hex. Screw M10 x 55 (Scotch Grip)
-
7503188938 ShaftShaft
-
8503189324 CushionCushion
-
9732900049 WasherWasher
-
10503189180 Center Shock with CamCenter Shock with Cam
-
11415090600 SpringSpring
-
12415090500 SpringSpring
-
13503188930 ProtectorProtector
-
14503140600 Spring StopperSpring Stopper
-
15503189117 CushionCushion
-
16503189282 BushingBushing
-
17503189271 CushionCushion
-
18503182200 Spring SpacerSpring Spacer
-
19503189666 Center Shock (Europe). Mach Z (Standard).Center Shock (Europe). Mach Z (Standard).
-
20505070150 Adjuster Cam (Europe). Mach Z (Standard).Adjuster Cam (Europe). Mach Z (Standard).
-
21503189686 Spring (Europe). Mach Z (Standard).Spring (Europe). Mach Z (Standard).
-
22503188930 Protector (Europe). Mach Z (Standard).Protector (Europe). Mach Z (Standard).
-
23517184300 Spring Guide (Europe). Mach Z (Standard).Spring Guide (Europe). Mach Z (Standard).
-
24503140600 Spring Stopper (Europe). Mach Z (Standard).Spring Stopper (Europe). Mach Z (Standard).
-
25503189117 Cushion (Europe). Mach Z (Standard).Cushion (Europe). Mach Z (Standard).
-
26503189282 Bushing (Europe). Mach Z (Standard).Bushing (Europe). Mach Z (Standard).
-
27503189271 Cushion (Europe). Mach Z (Standard).Cushion (Europe). Mach Z (Standard).
-
28207005044 Hex. Screw M10 x 50Hex. Screw M10 x 50
-
29233601416 Elastic Locking Nut M10Elastic Locking Nut M10
-
30503189562 AxleAxle
-
31205503544 Socket Head Screw M10 x 35 (Scotch Grip)Socket Head Screw M10 x 35 (Scotch Grip)
-
32503189564 WasherWasher
-
33503189265 SpacerSpacer
-
34503189362 Stopper StrapStopper Strap
-
35207182544 Hex. Screw M8 x 25Hex. Screw M8 x 25
-
36224081301 Flat WasherFlat Washer
-
37232581414 Elastic Stop Nut M8Elastic Stop Nut M8
-
38205523544 Socket Screw M12 x 35 (Scotch Grip)Socket Screw M12 x 35 (Scotch Grip)
-
39503189272 Center Shock ShaftCenter Shock Shaft
-
40503189276 WasherWasher
-
41503189273 WasherWasher
-
42503189274 SpacerSpacer
-
43503189303 RockerRocker
-
44503189388 Rocker AxleRocker Axle
-
45503189410 CushionCushion
-
46503189179 Rear ShockRear Shock
-
47516000182 Shock Decal (HPG)Shock Decal (HPG)
-
48503189668 Rear Shock (Europe). Mach Z (Standard).Rear Shock (Europe). Mach Z (Standard).
-
49516000182 Shock Decal (HPG) (Europe). Mach Z (Standard).Shock Decal (HPG) (Europe). Mach Z (Standard).
-
50207684044 Hex. Flanged Screw M8 x 40Hex. Flanged Screw M8 x 40
-
51233281414 Elastic Flanged Stop Nut M8Elastic Flanged Stop Nut M8
-
52414936000 CushionCushion
-
53408200700 Grease FittingGrease Fitting
-
54219700417 Synthetic Grease, 400gSynthetic Grease, 400g
