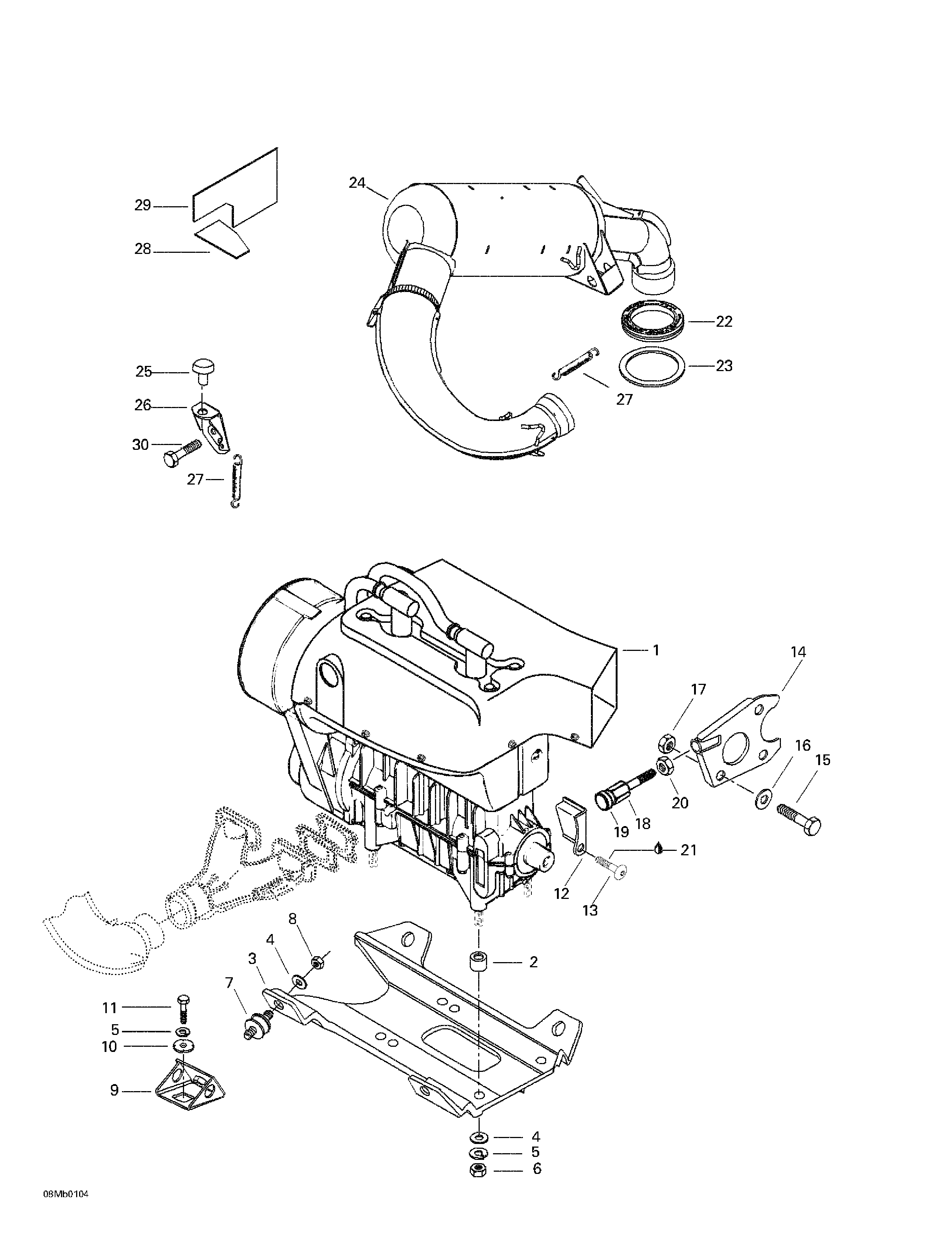

01- Engine Support And Muffler для BRP Ski-Doo MX Z 380 F - 2001
-
№АртикулНазвание
-
1400308905 > Engine> Engine
-
2512057700 SpacerSpacer
-
3512059134 Engine SupportEngine Support
-
4234001410 Washer 10 mmWasher 10 mm
-
5234100602 Lock Washer 10 mmLock Washer 10 mm
-
6232006414 Nut M10Nut M10
-
7570127700 Rubber MountRubber Mount
-
8233601416 Elastic Stop Nut M10Elastic Stop Nut M10
-
9512050900 SupportSupport
-
10512056700 Lock WasherLock Washer
-
11207102544 Hex. Screw M10 x 25Hex. Screw M10 x 25
-
12512059198 Stopper PlateStopper Plate
-
13236282084 Screw M8 x 20Screw M8 x 20
-
14517271800 Support PlateSupport Plate
-
15207182544 Hex. Screw M8 x 25Hex. Screw M8 x 25
-
16234081410 Flat Washer 8 mmFlat Washer 8 mm
-
17232581414 Elastic Stop Nut M8Elastic Stop Nut M8
-
18517244200 ScrewScrew
-
19570025100 Rod RetainerRod Retainer
-
20232120414 Nut M12Nut M12
-
21293800005 Loctite 271, 10mlLoctite 271, 10ml
-
22570039000 Exhaust WasherExhaust Washer
-
23514049300 Aluminum WasherAluminum Washer
-
24514052852 MufflerMuffler
-
25570048700 Rubber BumberRubber Bumber
-
26514044100 Muffler SupportMuffler Support
-
27517182100 SpringSpring
-
28514052858 Reflection SheetReflection Sheet
-
29514052949 Reflection SheetReflection Sheet
-
30207006044 Hex. Screw M10 x 60Hex. Screw M10 x 60
