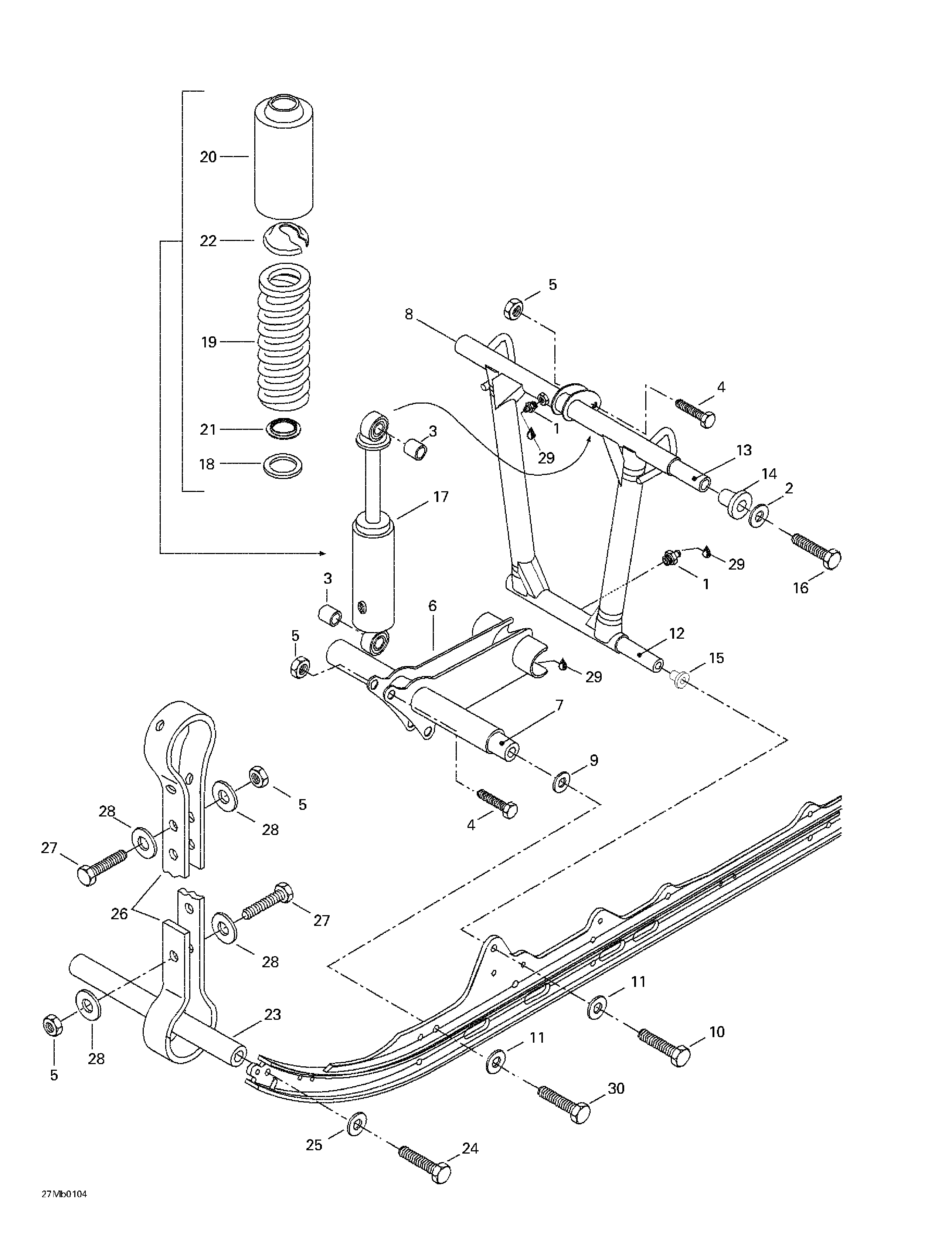

08- Front Arm для BRP Ski-Doo MX Z 380 F - 2001
-
№АртикулНазвание
-
1408200700 Grease Fitting M6Grease Fitting M6
-
2732900049 Flat WasherFlat Washer
-
3414936000 CushionCushion
-
4207084044 Hex. Screw M8 x 40Hex. Screw M8 x 40
-
5232581414 Elastic Stop Nut M8Elastic Stop Nut M8
-
6503182100 Welded Shock SupportWelded Shock Support
-
7503174800 Lower AxleLower Axle
-
8503189311 Welded Front ArmWelded Front Arm
-
9503189157 Hard WasherHard Washer
-
10207226044 Hex. Screw M12 x 60 (Scotch Grip)Hex. Screw M12 x 60 (Scotch Grip)
-
11503189276 Flat WasherFlat Washer
-
12503189313 ShaftShaft
-
13503188938 Upper AxleUpper Axle
-
14503189324 CushionCushion
-
15503189323 CushionCushion
-
16207205544 Screw Hex. M10 x 55Screw Hex. M10 x 55
-
17503188903 ShockShock
-
18503184400 WasherWasher
-
19415069900 SpringSpring
-
20503188930 ProtectorProtector
-
21503165100 Spring GuideSpring Guide
-
22503140600 Spring StopperSpring Stopper
-
23503151600 AxleAxle
-
24207383044 Hex. Screw M8 x 30Hex. Screw M8 x 30
-
25503189157 Flat WasherFlat Washer
-
26503189362 Stopper StrapStopper Strap
-
27207182544 Hex. Screw M8 x 25Hex. Screw M8 x 25
-
28224081301 WasherWasher
-
29219700417 Synthetic Grease, 400gSynthetic Grease, 400g
-
30207323544 Hex. Screw M12 x 35 (Scotch Grip)Hex. Screw M12 x 35 (Scotch Grip)
