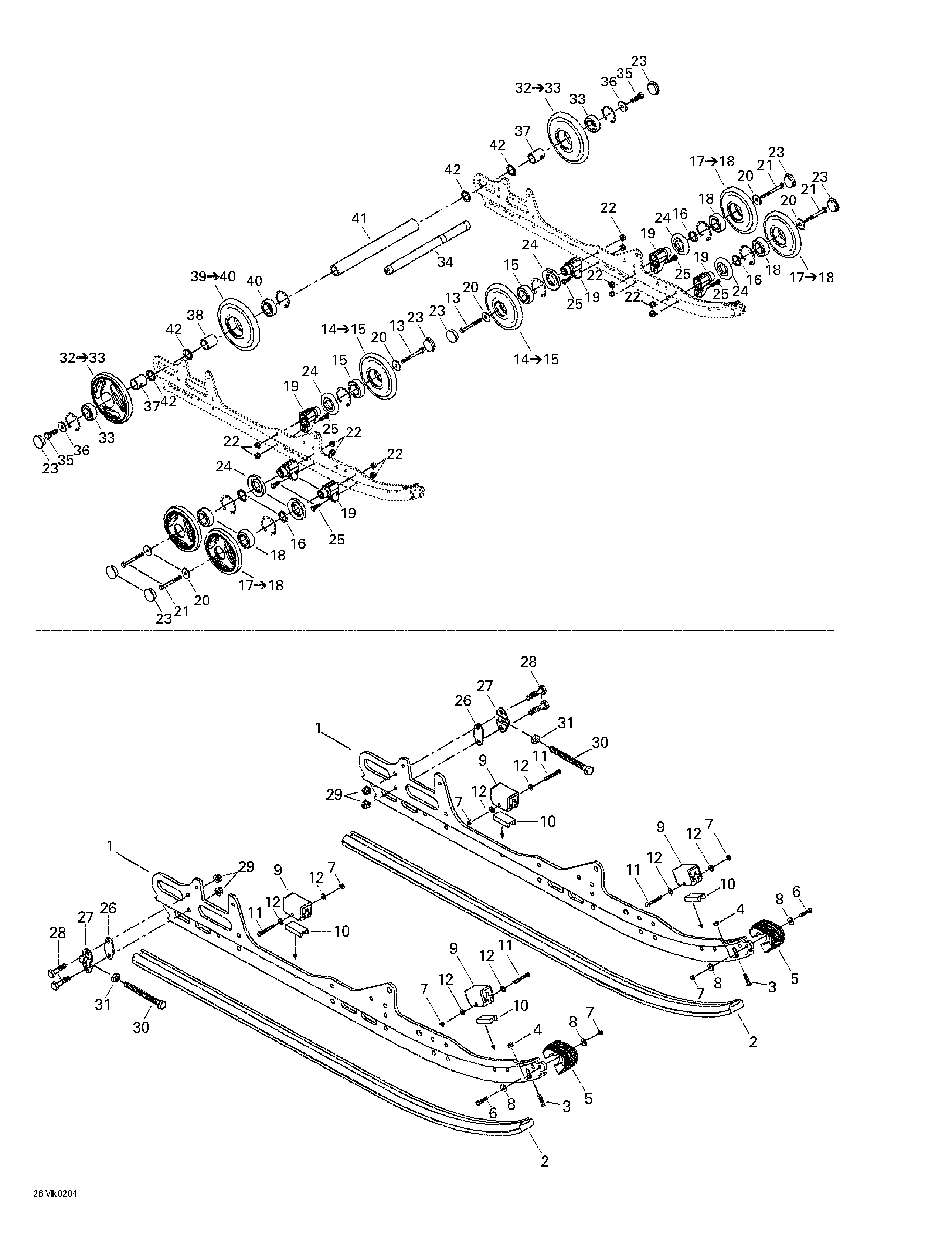

08- Rear Suspension для BRP Ski-Doo Mach Z - 2002
-
№АртикулНазвание
-
1503189563 RunnerRunner
-
2503189643 Runner ShoeRunner Shoe
-
3208562560 Screw M6 x 25Screw M6 x 25
-
4232561414 Elastic Stop Nut M6Elastic Stop Nut M6
-
5572075400 Runner ProtectorRunner Protector
-
6207152544 Hex. Screw M5 x 25Hex. Screw M5 x 25
-
7232551414 Elastic Stop Nut M5Elastic Stop Nut M5
-
8391301600 Flat WasherFlat Washer
-
9570063000 Rubber StopperRubber Stopper
-
10572084800 Reinforcement StopperReinforcement Stopper
-
11207054044 Hex. Screw M5 x 40Hex. Screw M5 x 40
-
12391301700 Flat WasherFlat Washer
-
13207088044 Hex. Screw M8 x 80Hex. Screw M8 x 80
-
14503188997 Wheel 135 Ass'y. Includes 14 - 15.Wheel 135 Ass'y. Includes 14 - 15.
-
15405404500 Ball Bearing 6205Ball Bearing 6205
-
16503173700 WasherWasher
-
17572097612 Wheel 135 Ass'y (Yellow). Includes 17 - 18.Wheel 135 Ass'y (Yellow). Includes 17 - 18.
-
18405404500 Ball Bearing 6205Ball Bearing 6205
-
19503189679 SupportSupport
-
20503183100 WasherWasher
-
21207088544 Hex. Screw M8 x 85Hex. Screw M8 x 85
-
22233281414 Elastic Flange Stop Nut M8Elastic Flange Stop Nut M8
-
23570063600 Wheel CapWheel Cap
-
24572089000 Labirynth SealLabirynth Seal
-
25207182544 Hex. Screw M8 x 25Hex. Screw M8 x 25
-
26503189160 Tensioner SpacerTensioner Spacer
-
27503155300 TensionerTensioner
-
28207063044 Hex. Screw M6 x 30Hex. Screw M6 x 30
-
29233261414 Elastic Flanged Nut M6Elastic Flanged Nut M6
-
30230100044 Hex. Screw M10 x 100Hex. Screw M10 x 100
-
31233601416 Elastic Locking Nut M10Elastic Locking Nut M10
-
32503189566 Wheel 165 Ass'y (yellow). Includes 32 - 33.Wheel 165 Ass'y (yellow). Includes 32 - 33.
-
33405404500 Ball BearingBall Bearing
-
34503160700 Rear AxleRear Axle
-
35250000019 Hex. Screw with NylonHex. Screw with Nylon
-
36503183300 WasherWasher
-
37503189809 Outer SpacerOuter Spacer
-
38503182900 Inner SpacerInner Spacer
-
39503189568 Wheel 165 Ass'y. Includes 39 - 40.Wheel 165 Ass'y. Includes 39 - 40.
-
40405404500 Ball Bearing 6205Ball Bearing 6205
-
41503183000 Central SpacerCentral Spacer
-
42503180400 WasherWasher
