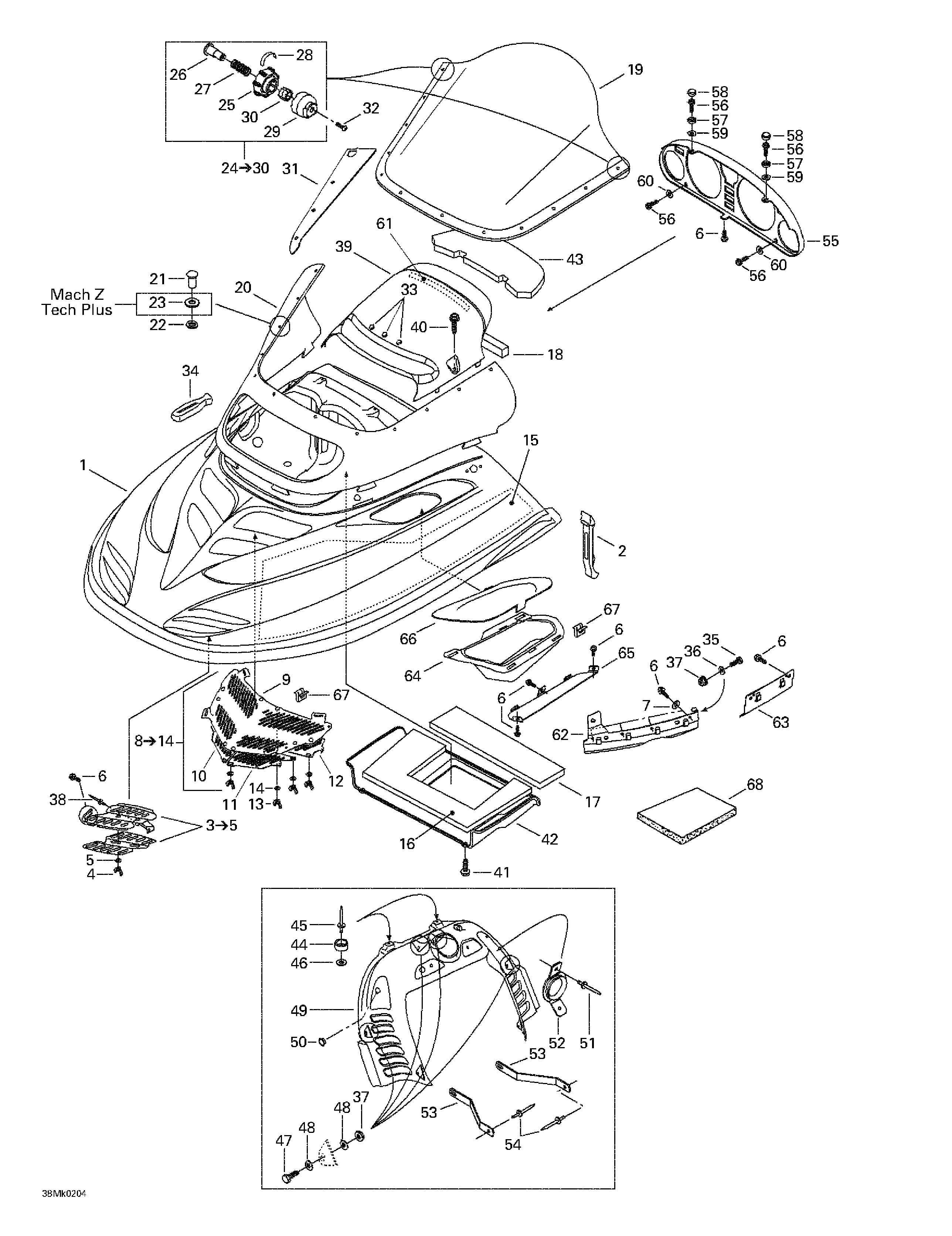

09- Cab, Console для BRP Ski-Doo Mach Z - 2002
-
№АртикулНазвание
-
1517302484 Hood (Deep Black (B-160))Hood (Deep Black (B-160))
-
2517302152 Hood LatchHood Latch
-
3517302205 R.H. Front Grill Ass'y. Includes 3 - 5.R.H. Front Grill Ass'y. Includes 3 - 5.
-
517302208 L.H. Front Grill Ass'yL.H. Front Grill Ass'y
-
4414070300 Wing Nut M5Wing Nut M5
-
5234451418 Serrated Lock Washer 5 mmSerrated Lock Washer 5 mm
-
6732601210 Hex. Tapping ScrewHex. Tapping Screw
-
7391301700 Flat WasherFlat Washer
-
8517302073 Center Grill Ass'y. Includes 8 - 14.Center Grill Ass'y. Includes 8 - 14.
-
9517289100 Central GrillCentral Grill
-
10517289103 R.H. Front Sliding GrillR.H. Front Sliding Grill
-
11517289104 L.H. Front Sliding GrillL.H. Front Sliding Grill
-
12517289105 R.H. Rear Sliding GrillR.H. Rear Sliding Grill
-
517289106 L.H. Rear Sliding GrillL.H. Rear Sliding Grill
-
13414070300 Wing Nut M5Wing Nut M5
-
14234451418 Serrated Lock Washer 5 mmSerrated Lock Washer 5 mm
-
15517302184 L.H. Side FoamL.H. Side Foam
-
415045100 R.H. Side FoamR.H. Side Foam
-
16415045300 Center FoamCenter Foam
-
17415045400 Rear FoamRear Foam
-
18415045500 Deflector FoamDeflector Foam
-
19415045800 Low Windshield. Mach Z (Sport).Low Windshield. Mach Z (Sport).
-
517302480 Low Windshield. Mach Z (Tech Plus).Low Windshield. Mach Z (Tech Plus).
-
20517302076 Windshield SupportWindshield Support
-
21572103500 Stud. Mach Z (Sport).Stud. Mach Z (Sport).
-
517302264 Stud. Mach Z (Tech Plus).Stud. Mach Z (Tech Plus).
-
22732610072 Push NutPush Nut
-
23517302265 Washer. Mach Z (Tech Plus).Washer. Mach Z (Tech Plus).
-
24517302360 R.H. Handle Ass'y. Includes 24 - 30. Mach Z (Tech Plus).R.H. Handle Ass'y. Includes 24 - 30. Mach Z (Tech Plus).
-
517302361 L.H. Handle Ass'y. Mach Z (Tech Plus).L.H. Handle Ass'y. Mach Z (Tech Plus).
-
25517302260 Handle. Mach Z (Tech Plus).Handle. Mach Z (Tech Plus).
-
26517302262 Stopper. Mach Z (Tech Plus).Stopper. Mach Z (Tech Plus).
-
27517302263 Spring. Mach Z (Tech Plus).Spring. Mach Z (Tech Plus).
-
28516000331 R.H. Decal. Mach Z (Tech Plus).R.H. Decal. Mach Z (Tech Plus).
-
516000332 L.H. Decal. Mach Z (Tech Plus).L.H. Decal. Mach Z (Tech Plus).
-
29517302261 Guard. Mach Z (Tech Plus).Guard. Mach Z (Tech Plus).
-
30517302321 Gear. Mach Z (Tech Plus).Gear. Mach Z (Tech Plus).
-
31517302509 R.H. Plate Ass'y. Mach Z (Tech Plus).R.H. Plate Ass'y. Mach Z (Tech Plus).
-
517302510 L.H. Plate Ass'y. Mach Z (Tech Plus).L.H. Plate Ass'y. Mach Z (Tech Plus).
-
32250000031 Tapping Phillips Screw. Mach Z (Tech Plus).Tapping Phillips Screw. Mach Z (Tech Plus).
-
33517302511 Spacer. Mach Z (Tech Plus).Spacer. Mach Z (Tech Plus).
-
34570023800 Windshield LatchWindshield Latch
-
35207151644 Hex. Screw M5 x 16Hex. Screw M5 x 16
-
36420845270 Flat WasherFlat Washer
-
37233251414 Elastic Flanged Nut M5Elastic Flanged Nut M5
-
38390402400 Pop Rivet 3/16''Pop Rivet 3/16''
-
39572107300 Air Intake DeflectorAir Intake Deflector
-
40414745900 ScrewScrew
-
41243141640 Hex. Screw M4.8 x 16Hex. Screw M4.8 x 16
-
42572087800 PlatePlate
-
43415123100 Filter FoamFilter Foam
-
44415018100 Rubber StopperRubber Stopper
-
45390401600 Pop Rivet 1/8''Pop Rivet 1/8''
-
46293150007 WasherWasher
-
47207152044 Hex. Screw M5 x 20Hex. Screw M5 x 20
-
48391301600 Flat WasherFlat Washer
-
49517302249 ConsoleConsole
-
50572072100 CapCap
-
51390409400 Pop Rivet 5/32''Pop Rivet 5/32''
-
52517296800 Rope GuideRope Guide
-
53517296900 BracketBracket
-
54390910000 Pop Rivet 3/16''Pop Rivet 3/16''
-
55572098600 Gauge SupportGauge Support
-
56241140060 Hex. Flanged Screw K40 x 10Hex. Flanged Screw K40 x 10
-
57414436800 Retainer CapRetainer Cap
-
58414436900 Snap CapSnap Cap
-
59234042600 Flat Washer 4 mmFlat Washer 4 mm
-
60517124300 WasherWasher
-
61415110900 VelcroVelcro
-
62517301200 R.H. Hood GuideR.H. Hood Guide
-
517301300 L.H. Hood GuideL.H. Hood Guide
-
63517302108 Hood GuideHood Guide
-
64517302155 Inlet DuctInlet Duct
-
65517302414 PlatePlate
-
66517302156 R.H. GrillR.H. Grill
-
517302167 L.H. GrillL.H. Grill
-
67517302183 ClipClip
-
68414632400 Foam-Acoustic (74 x 34 x 1/2'' Thick)Foam-Acoustic (74 x 34 x 1/2'' Thick)
-
414631900 Foam-Acoustic (74 x 34 x 1'' Thick)Foam-Acoustic (74 x 34 x 1'' Thick)
