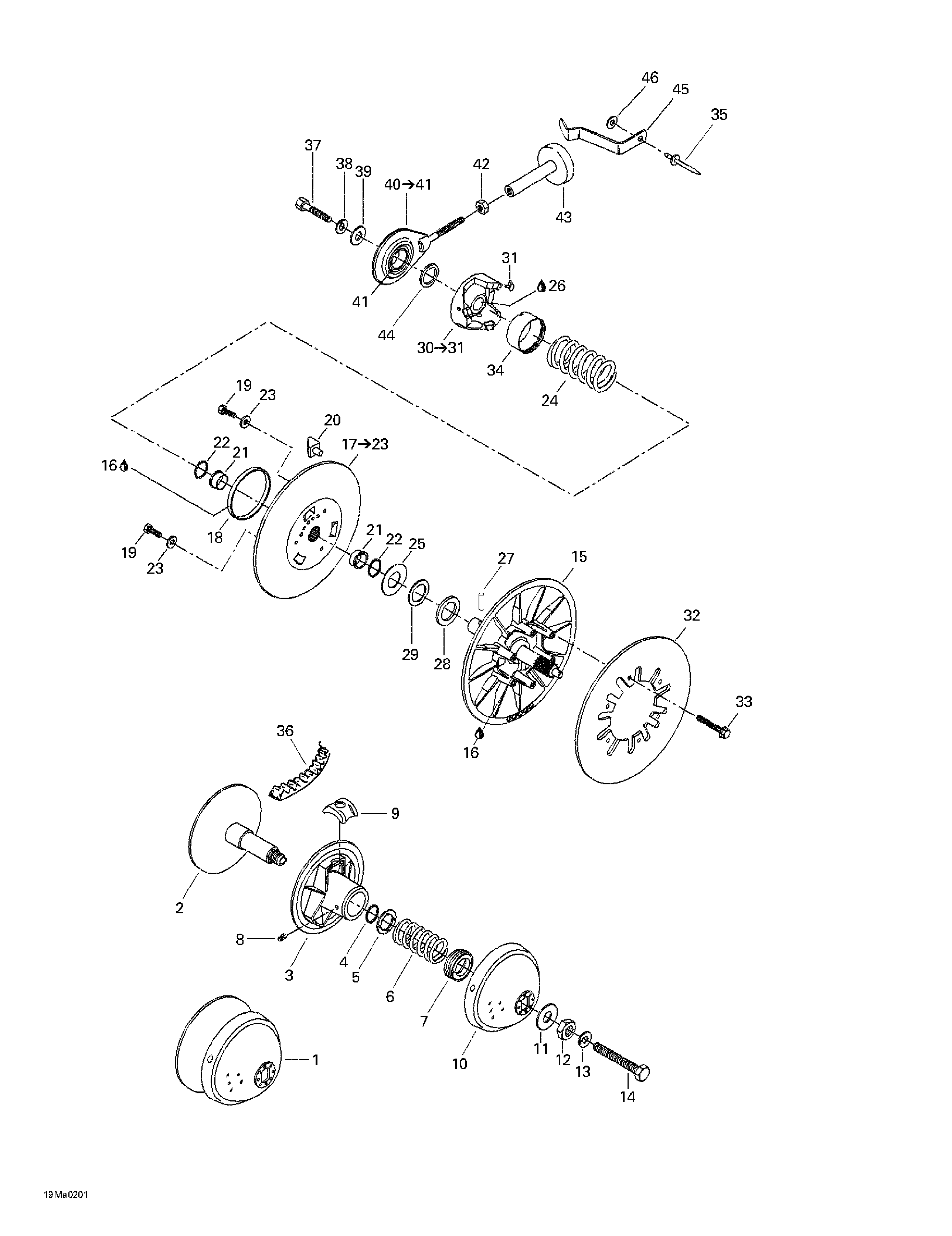

05- Pulleys для BRP Ski-Doo Tundra R - 2002
-
№АртикулНазвание
-
2417222506 Inner Half FlangeInner Half Flange
-
3417126627 Outer FlangeOuter Flange
-
4417116100 CirclipCirclip
-
5417116200 Guide WasherGuide Washer
-
6417115900 SpringSpring
-
7417117300 Bushing SupportBushing Support
-
8417116800 Locking ScrewLocking Screw
-
9417222285 Centrifugal BlockCentrifugal Block
-
10417125200 CapCap
-
11417116500 Retainer WasherRetainer Washer
-
12417118300 NutNut
-
13392002800 Lock Spring WasherLock Spring Washer
-
14417113800 Drive Pulley BoltDrive Pulley Bolt
-
15417124500 Flange Fixe Ass'yFlange Fixe Ass'y
-
16413703100 Loctite 609, 10 ccLoctite 609, 10 cc
-
17417126395 Sliding Flange Ass'y. Includes 17 - 23.Sliding Flange Ass'y. Includes 17 - 23.
-
18417126397 BushingBushing
-
19210251180 Hex. Forming Screw M5 x 11Hex. Forming Screw M5 x 11
-
20415099400 Back Cam ShoeBack Cam Shoe
-
22371911100 CirclipCirclip
-
23399910000 Flat WasherFlat Washer
-
24415094300 Release Spring (Yellow)Release Spring (Yellow)
-
25504150400 Thrust WasherThrust Washer
-
26293800070 Loctite 767, Antiseize Lubricant, 8 ozLoctite 767, Antiseize Lubricant, 8 oz
-
27372900500 Dowel PinDowel Pin
-
28504112000 ShimShim
-
29504108200 ShimShim
-
30417126350 Outer Cam Ass'y. Includes 30 - 31.Outer Cam Ass'y. Includes 30 - 31.
-
31415094400 Cam Slider ShoeCam Slider Shoe
-
32507032100 Brake DiskBrake Disk
-
33210261680 Forming Hex. Screw M6 x 16Forming Hex. Screw M6 x 16
-
34417126349 ProtectorProtector
-
35390402500 Pop Rivet 1/8''Pop Rivet 1/8''
-
36414827600 Drive BeltDrive Belt
-
37207181644 Hex. Screw M8 x 16Hex. Screw M8 x 16
-
38234181401 Lock Washer 8 mmLock Washer 8 mm
-
39517078700 WasherWasher
-
40580593000 Driven Pulley Support Ass'y. Includes 40 - 41.Driven Pulley Support Ass'y. Includes 40 - 41.
-
41405401000 Ball BearingBall Bearing
-
42232081414 Hex. Nut M8Hex. Nut M8
-
43570028300 Rod RetainerRod Retainer
-
44504003900 SpacerSpacer
-
45414831800 SpringSpring
-
46391300800 Flat WasherFlat Washer
