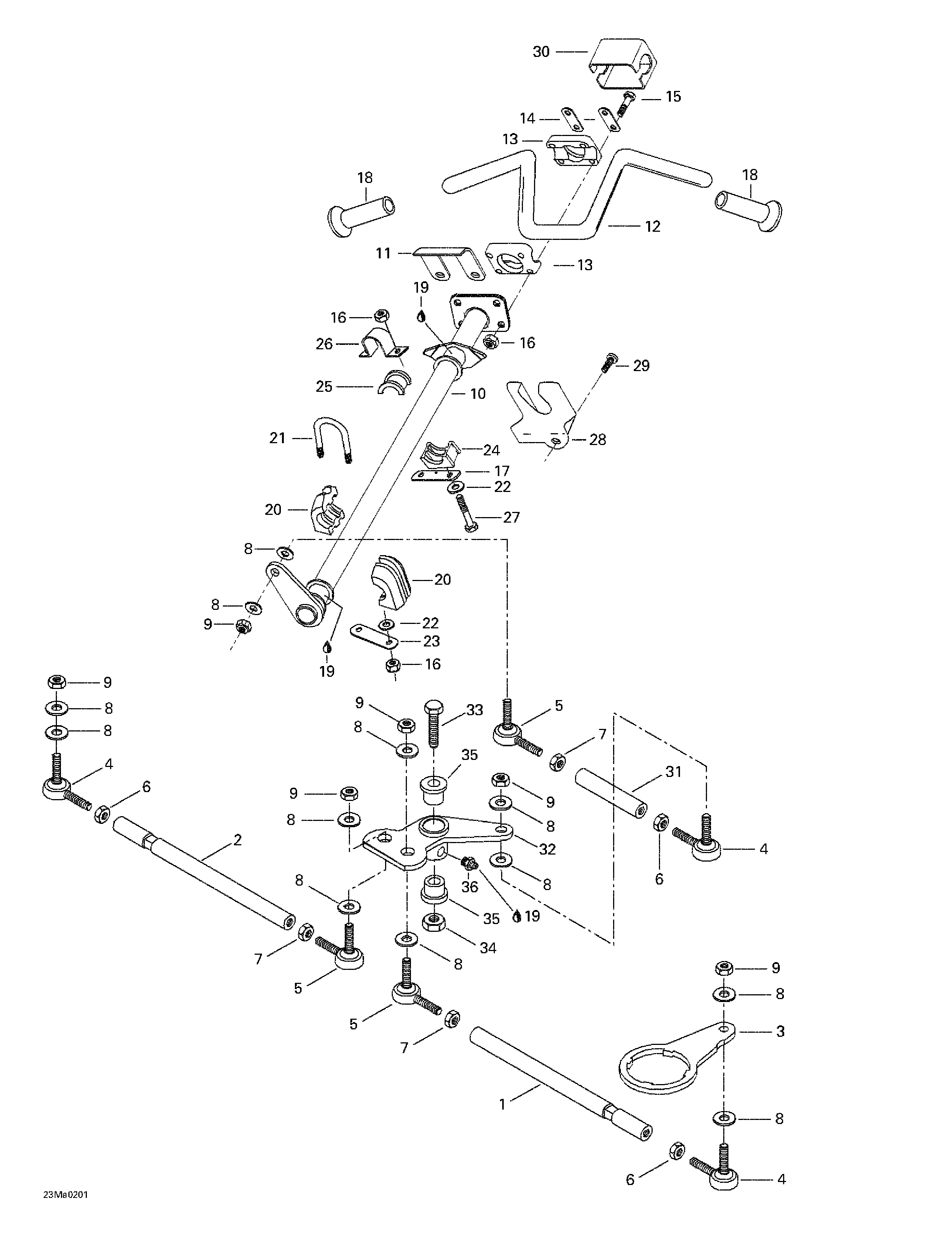

07- Steering System для BRP Ski-Doo Tundra R - 2002
-
№АртикулНазвание
-
1506113300 Tie RodTie Rod
-
2506113400 Tie RodTie Rod
-
3506148900 Steering ArmSteering Arm
-
4506151492 R.H. Ball JointR.H. Ball Joint
-
5506151495 L.H. Ball JointL.H. Ball Joint
-
6732610010 R.H. Jam Nut M10R.H. Jam Nut M10
-
7250100016 L.H. Jam Nut M10L.H. Jam Nut M10
-
8503175800 WasherWasher
-
9232501416 Elastic Stop Nut M10Elastic Stop Nut M10
-
10506149700 Main TubeMain Tube
-
11517224200 Retaining SupportRetaining Support
-
12506115900 Handle BarHandle Bar
-
13277000142 Steering ClampSteering Clamp
-
14506151196 ReinforcementReinforcement
-
15207085544 Hex. Screw M8 x 55Hex. Screw M8 x 55
-
16232581414 Elastic Stop Nut M8Elastic Stop Nut M8
-
17506149500 PlatePlate
-
18572100500 Handle GripHandle Grip
-
19219700417 Synthetic Grease, 400gSynthetic Grease, 400g
-
20572067100 Half BushingHalf Bushing
-
21506060600 U-ClampU-Clamp
-
22234081410 Flat Washer 8 mmFlat Washer 8 mm
-
23517134700 Lock TabLock Tab
-
24572064400 Lower BushingLower Bushing
-
25572064500 Upper BushingUpper Bushing
-
26517126200 Retaining SupportRetaining Support
-
27207182044 Hex. Screw M8 x 20Hex. Screw M8 x 20
-
28517262000 PlatePlate
-
29364901600 Metal ScrewMetal Screw
-
30506151288 Steering CoverSteering Cover
-
31506149800 Tie RodTie Rod
-
32506118000 Pivot ArmPivot Arm
-
33207006544 Hex. Screw M10 x 65Hex. Screw M10 x 65
-
34233601416 Elastic Locking Nut M10Elastic Locking Nut M10
-
35414530000 CushionCushion
-
36408200700 Grease FittingGrease Fitting
