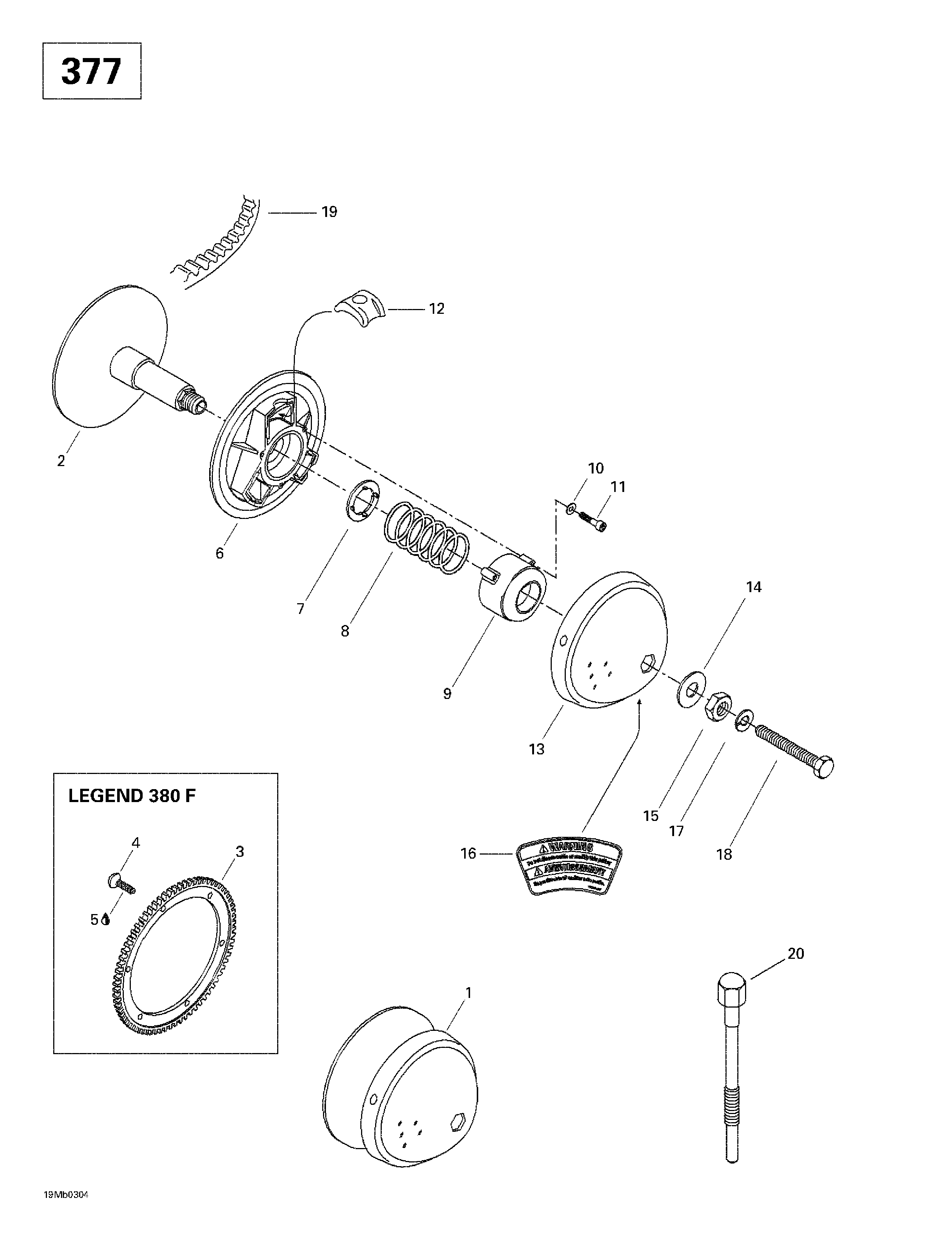

05- Drive Pulley (377) для BRP Ski-Doo Legend 380F/550F - 2003
-
№АртикулНазвание
-
2417126690 Inner Flange. MX Z 380 F. Legend 380 F.Inner Flange. MX Z 380 F. Legend 380 F.
-
3417300057 Ring Gear (86 Teeth). Legend 380 F.Ring Gear (86 Teeth). Legend 380 F.
-
4236281684 Screw M8 x 16. Legend 380 F.Screw M8 x 16. Legend 380 F.
-
5293800005 Loctite 271, 10 ml. Legend 380 F.Loctite 271, 10 ml. Legend 380 F.
-
6417126692 Sliding Flange. MX Z 380 F. Legend 380 F.Sliding Flange. MX Z 380 F. Legend 380 F.
-
7417126694 Guide Washer. MX Z 380 F. Legend 380 F.Guide Washer. MX Z 380 F. Legend 380 F.
-
8417126621 Spring Violet (Blue/Green). MX Z 380 F. Legend 380 F.Spring Violet (Blue/Green). MX Z 380 F. Legend 380 F.
-
9417126622 Spring Cover. MX Z 380 F. Legend 380 F.Spring Cover. MX Z 380 F. Legend 380 F.
-
10420245370 Washer. MX Z 380 F. Legend 380 F.Washer. MX Z 380 F. Legend 380 F.
-
11205064086 Socket Head Screw M6 x 40. MX Z 380 F. Legend 380 F.Socket Head Screw M6 x 40. MX Z 380 F. Legend 380 F.
-
12417126623 Centrifugal Block. MX Z 380 F. Legend 380 F.Centrifugal Block. MX Z 380 F. Legend 380 F.
-
13417126696 Cap. MX Z 380 F. Legend 380 F.Cap. MX Z 380 F. Legend 380 F.
-
14417122400 Washer. MX Z 380 F. Legend 380 F.Washer. MX Z 380 F. Legend 380 F.
-
15417118300 Nut. MX Z 380 F. Legend 380 F.Nut. MX Z 380 F. Legend 380 F.
-
16516001247 Label Security (Disassembling). MX Z 380 F. Legend 380 F.Label Security (Disassembling). MX Z 380 F. Legend 380 F.
-
17392002800 Lock Spring Washer. MX Z 380 F. Legend 380 F.Lock Spring Washer. MX Z 380 F. Legend 380 F.
-
18417113800 Bolt. MX Z 380 F. Legend 380 F.Bolt. MX Z 380 F. Legend 380 F.
-
19415060600 Drive Belt. MX Z 380 F. Legend 380 F.Drive Belt. MX Z 380 F. Legend 380 F.
-
20529022400 Puller Inner Half. MX Z 380 F. Legend 380 F.Puller Inner Half. MX Z 380 F. Legend 380 F.
