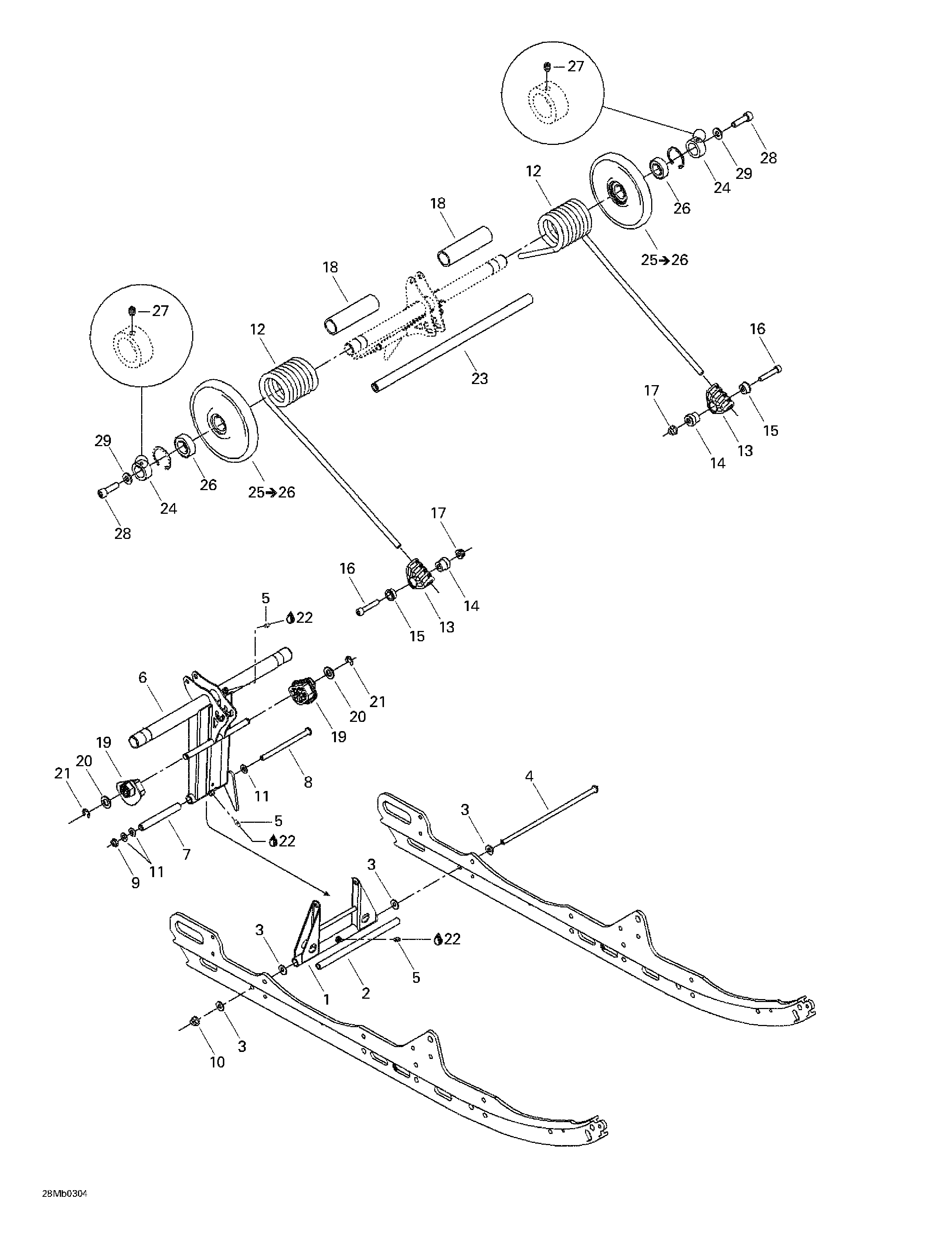

08- Rear Arm для BRP Ski-Doo Legend 380F/550F - 2003
-
№АртикулНазвание
-
1503189793 Pivot ArmPivot Arm
-
2503189156 Lower Axle PivotLower Axle Pivot
-
3503189157 WasherWasher
-
4732601198 Bolt M8 (Long)Bolt M8 (Long)
-
5408200700 Grease Fitting M6Grease Fitting M6
-
6503189708 Rear ArmRear Arm
-
7503144300 Upper AxleUpper Axle
-
8732601197 Bolt M8 (Short)Bolt M8 (Short)
-
9232581414 Elastic Stop Nut M8Elastic Stop Nut M8
-
10233281414 Elastic Flanged Nut M8Elastic Flanged Nut M8
-
11234081410 Flat Washer 8 mmFlat Washer 8 mm
-
12503189592 R.H. SpringR.H. Spring
-
503189627 R.H. Spring (Europe). MX Z 380 F. MX Z 550 F.R.H. Spring (Europe). MX Z 380 F. MX Z 550 F.
-
503189594 L.H. SpringL.H. Spring
-
503189629 L.H. Spring (Europe). MX Z 380 F. MX Z 550 F.L.H. Spring (Europe). MX Z 380 F. MX Z 550 F.
-
13503189657 Spring SupportSpring Support
-
14503188934 Spring Axle GuideSpring Axle Guide
-
15503188929 Retainer CushionRetainer Cushion
-
16205084544 Socket Head Screw M8 x 45Socket Head Screw M8 x 45
-
17233281414 Elastic Flanged Nut M8Elastic Flanged Nut M8
-
18572086000 BushingBushing
-
19503190022 R.H. Cam AdjusterR.H. Cam Adjuster
-
503190023 L.H. Cam AdjusterL.H. Cam Adjuster
-
20234021410 Flat Washer 12 mmFlat Washer 12 mm
-
21293370013 E-CirclipE-Circlip
-
22219700417 Synthetic Grease, 400gSynthetic Grease, 400g
-
23503189711 Cross Rear ShaftCross Rear Shaft
-
24503168800 Retaining RingRetaining Ring
-
25503190269 Wheel 165. Includes 25 - 26.Wheel 165. Includes 25 - 26.
-
26405404500 Ball Bearing 6205Ball Bearing 6205
-
27206260844 Socket Set Screw M6Socket Set Screw M6
-
28205523544 Socket Head Screw M12 x 35 (Scotch Grip)Socket Head Screw M12 x 35 (Scotch Grip)
-
29503189276 WasherWasher
